Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

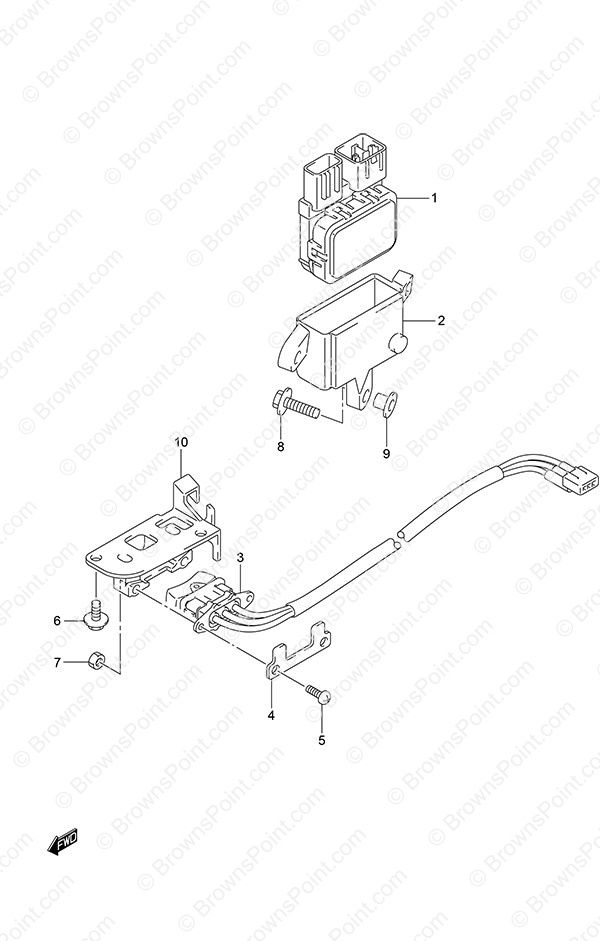

Fig. 85 - PTT Switch Tiller Handle w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38410-93J21 PTT Relay Assembly
SKU: 38410-93J21 Weight: 0.500000 Brand: Price: $ 117.55 |
PTT Relay Assembly | 1 | $ 117.55 | ||
| 2 | 38415-89L00 PTT Relay Holder
SKU: 38415-89L00 Weight: 0.500000 Brand: Price: $ 17.83 |
PTT Relay Holder | 1 | $ 17.83 | ||
| 3 | 37850-94JA3 Tilt Switch Assembly
SKU: 37850-94JA3 Weight: 0.250000 Brand: Price: $ 74.27 |
Tilt Switch Assembly | 1 | $ 74.27 | ||
| 4 | 37852-94JA0 PTT Switch Plate
SKU: 37852-94JA0 Weight: 0.060000 Brand: Price: $ 10.05 |
PTT Switch Plate | 1 | $ 10.05 | ||
| 5 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 6 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 2 | $ 2.05 | ||
| 7 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | ||
| 8 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 2 | $ 3.54 | ||
| 9 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 10 | 37851-89L00 PTT Switch Holder
SKU: 37851-89L00 Weight: 0.250000 Brand: Price: $ 26.49 |
PTT Switch Holder | 1 | $ 26.49 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
