Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

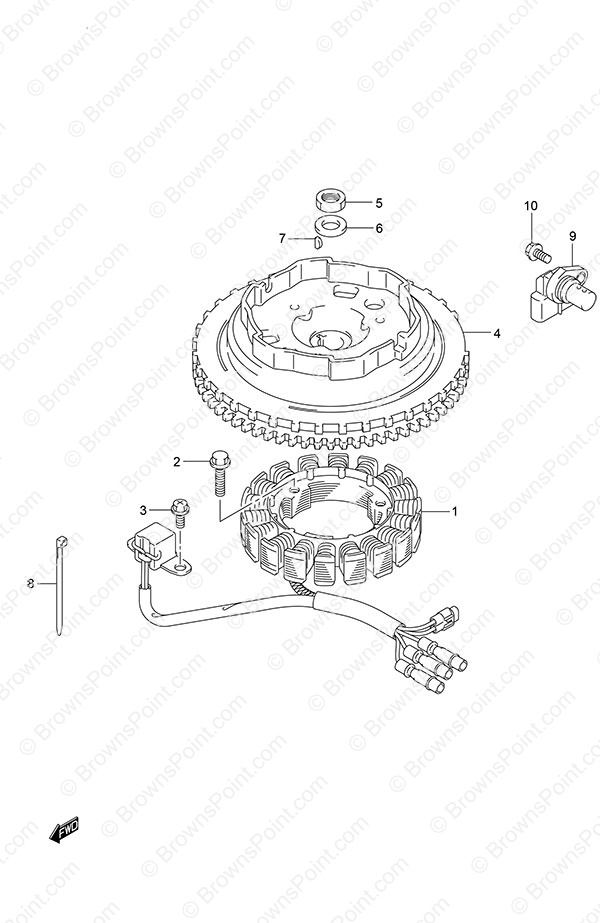

Fig. 73 - Magneto Electric Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32120-89L00 Stator & Pulser Coil
SKU: 32120-89L00 Weight: 2.000000 Brand: Price: $ 331.63 |
Stator & Pulser Coil | 1 | $ 331.63 | ||
| 2 | 01547-0625A BOLT
SKU: 01547-0625A Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT | 3 | $ 2.04 | ||
| 3 | 01550-05127 Bolt
SKU: 01550-05127 Weight: 0.060000 Brand: Price: $ 1.49 |
Bolt | 2 | $ 1.49 | ||
| 4 | 32102-89L00 Flywheel
SKU: 32102-89L00 Weight: 5.000000 Brand: Price: $ 481.95 |
Flywheel | 1 | $ 481.95 | ||
| 5 | 09140-14008 Nut 14mm
SKU: 09140-14008 Weight: 0.125000 Brand: Price: $ 2.32 |
Nut 14mm | 1 | $ 2.32 | ||
| 6 | 09160-15057 Washer (15x27x4)
SKU: 09160-15057 Weight: 0.250000 Brand: Price: $ 2.26 |
Washer (15x27x4) | 1 | $ 2.26 | ||
| 7 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 8 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 7 | $ 3.09 | ||
| 9 | 33220-84M10 CMP Sensor Assembly
SKU: 33220-84M10 Weight: 0.180000 Brand: Price: $ 96.98 |
CMP Sensor Assembly | 1 | $ 96.98 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
