Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

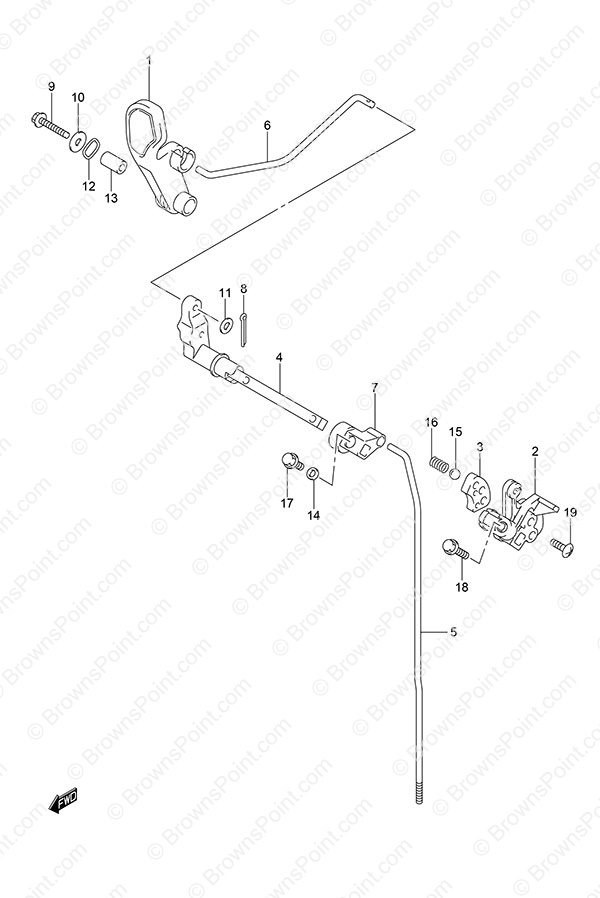

Fig. 55 - Clutch Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21111-89L01 Clutch Lever
SKU: 21111-89L01 Weight: 0.250000 Brand: Price: $ 8.78 |
Clutch Lever | 1 | $ 8.78 | ||
| 2 | 21120-89L00 Clutch Notch Lever
SKU: 21120-89L00 Weight: 0.250000 Brand: Price: $ 10.88 |
Clutch Notch Lever | 1 | $ 10.88 | ||
| 3 | 21122-89L00 Clutch Notch Plate (NLA)
SKU: 21122-89L00 Weight: 0.250000 Brand: Price: $ 22.49 |
Clutch Notch Plate (NLA) | 1 | $ 22.49 | ||
| 4 | 21210-89L00 Clutch Lever Shaft
SKU: 21210-89L00 Weight: 0.250000 Brand: Price: $ 28.48 |
Clutch Lever Shaft | 1 | $ 28.48 | ||
| 5-1 | 23111-89L00 Clutch Rod (S)
SKU: 23111-89L00 Weight: 0.220000 Brand: Price: $ 19.66 |
Clutch Rod (S) | 1 | $ 19.66 | w/Transom (S) | |
| 5-2 | 23111-89L10 Clutch Rod (L)
SKU: 23111-89L10 Weight: 0.500000 Brand: Price: $ 23.10 |
Clutch Rod (L) | 1 | $ 23.10 | w/Transom (L) | |
| 6 | 23115-89L00 Clutch Lever Link
SKU: 23115-89L00 Weight: 0.250000 Brand: Price: $ 12.53 |
Clutch Lever Link | 1 | $ 12.53 | ||
| 7 | 23211-89L00 Clutch Rod Arm
SKU: 23211-89L00 Weight: 0.250000 Brand: Price: $ 8.54 |
Clutch Rod Arm | 1 | $ 8.54 | ||
| 8 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 9 | 09116-06234 Bolt (6x35)
SKU: 09116-06234 Weight: 0.250000 Brand: Price: $ 2.96 |
Bolt (6x35) | 1 | $ 2.96 | ||
| 10 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 11 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 1 | $ 1.44 | ||
| 12 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 2 | $ 2.04 | ||
| 13 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 14 | 09180-06362 Spacer (6.5x10.5x4) (NLA)
SKU: 09180-06362 Weight: 0.125000 Brand: Price: $ 0.66 |
Spacer (6.5x10.5x4) (NLA) | 1 | $ 0.66 | ||
| 15 | 09260-12003 Ball
SKU: 09260-12003 Weight: 0.100000 Brand: Price: $ 3.99 |
Ball | 1 | $ 3.99 | ||
| 16 | 09440-09041 Clutch Notch Spring
SKU: 09440-09041 Weight: 0.100000 Brand: Price: $ 2.72 |
Clutch Notch Spring | 1 | $ 2.72 | ||
| 17 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 18 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 19 | 02142-06207 SCREW 6X20
SKU: 02142-06207 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X20 | 2 | $ 1.38 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
