Suzuki DF 20A Parts Listings - 2014
S/N 02002F-410001 to 02002F-41XXXX

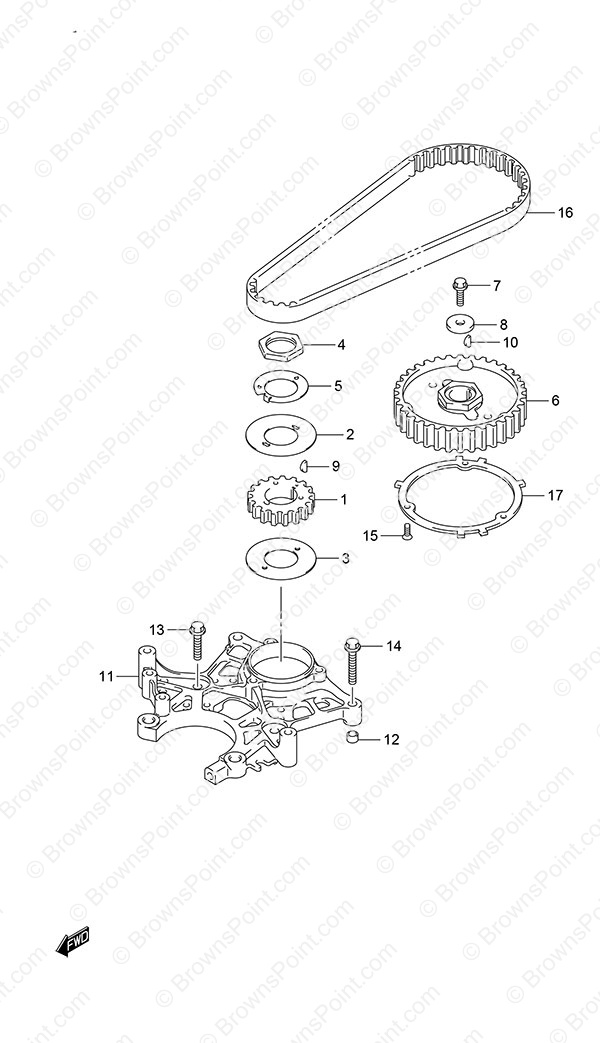

Fig. 4 - Timing Belt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12631-89L10 Crankshaft Pulley (NT:17)
SKU: 12631-89L10 Weight: 0.500000 Brand: Price: $ 63.66 |
Crankshaft Pulley (NT:17) | 1 | $ 63.66 | ||
| 2 | 12635-89L00 Timing Belt Guide
SKU: 12635-89L00 Weight: 0.250000 Brand: Price: $ 7.82 |
Timing Belt Guide | 1 | $ 7.82 | ||
| 3 | 12636-89L00 Timing Belt Guide (Lower)
SKU: 12636-89L00 Weight: 0.250000 Brand: Price: $ 8.11 |
Timing Belt Guide (Lower) | 1 | $ 8.11 | ||
| 4 | 12637-89L00 Timing Pulley Nut
SKU: 12637-89L00 Weight: 0.250000 Brand: Price: $ 9.18 |
Timing Pulley Nut | 1 | $ 9.18 | ||
| 5 | 12638-89L00 Pulley Nut Lock Washer
SKU: 12638-89L00 Weight: 0.250000 Brand: Price: $ 4.03 |
Pulley Nut Lock Washer | 1 | $ 4.03 | ||
| 6 | 12741-89L00 Camshaft Pulley (NT:34)
SKU: 12741-89L00 Weight: 0.800000 Brand: Price: $ 78.13 |
Camshaft Pulley (NT:34) | 1 | $ 78.13 | ||
| 7 | 09103-06267 Bolt (6x18)
SKU: 09103-06267 Weight: 0.100000 Brand: Price: $ 2.72 |
Bolt (6x18) | 1 | $ 2.72 | ||
| 8 | 09160-06171 Washer
SKU: 09160-06171 Weight: 0.200000 Brand: Price: $ 0.00 |
Washer | 1 | $ 0.00 | ||
| 9 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 10 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 11 | 12625-89L00 Stator Base
SKU: 12625-89L00 Weight: 0.500000 Brand: Price: $ 62.14 |
Stator Base | 1 | $ 62.14 | ||
| 12 | 04211-09149 PIN 9X14
SKU: 04211-09149 Weight: 0.100000 Brand: Price: $ 1.66 |
PIN 9X14 | 2 | $ 1.66 | ||
| 13 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 14 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 15 | 02122-04127 SCREW
SKU: 02122-04127 Weight: 0.100000 Brand: Price: $ 1.97 |
SCREW | 3 | $ 1.97 | ||
| 16 | 12761-93EL0 Timing Belt
SKU: 12761-93EL0 Weight: 0.180000 Brand: Price: $ 49.27 |
Timing Belt | 1 | $ 49.27 | ||
| 17 | 12744-89L00 Sensing Plate
SKU: 12744-89L00 Weight: 0.500000 Brand: Price: $ 36.25 |
Sensing Plate | 1 | $ 36.25 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
