Suzuki DF 15A Parts Listings - 2014
S/N 01504F-410001 to 01504F-41XXXX

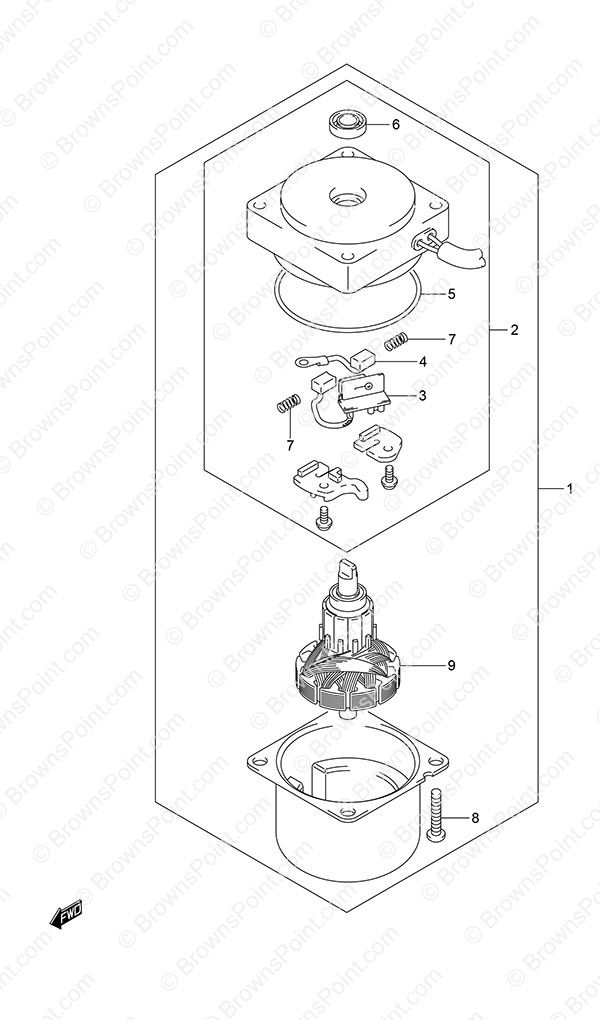

Fig. 125 - PTT Motor Tiller Handle w/Power Tilt

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 38100-89LA2 Replaced by 38100-89LA3 1 $ 585.04

Not Available

2 31174-89LA0 Bracket 1 $ 427.83

Not Available

3 31136-94J00 Breaker 1 $ 103.91
4 31133-94910 Brush 1 $ 12.57
5 31123-94J01 O-Ring 1 $ 13.86
6 33799-97E00 Oil Seal 1 $ 23.27
7 31135-94900 Spring 2 $ 5.02
8 09136-05041 Screw (5x20) 2 $ 1.97
9 31311-94J00 Armature (NLA) 1 $ 417.00

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
