Suzuki DF 9.9B Parts Listings - 2014
S/N 00995F-410001 to 00995F-41XXXX

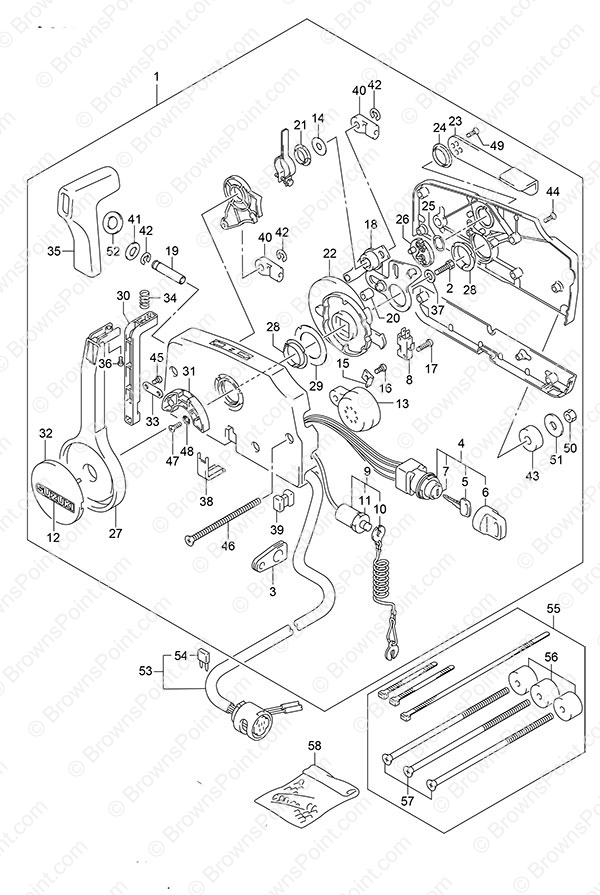

Fig. 194 - Opt: Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-94J20 Side Mount Control Box
SKU: 67200-94J20 Weight: 8.000000 Brand: Price: $ 439.95 |
Side Mount Control Box | 1 | $ 439.95 | ||
| 2 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 3 | 36628-92E00 Wire Harness Grommet
SKU: 36628-92E00 Weight: 0.060000 Brand: Price: $ 5.90 |
Wire Harness Grommet | 1 | $ 5.90 | ||
| 4 | 37110-94J02 Igntion Switch Assembly
SKU: 37110-94J02 Weight: 0.500000 Brand: Price: $ 108.20 |
Igntion Switch Assembly | 1 | $ 108.20 | ||
| 5-1 | 37141-99E00 (931) Ignition Key
SKU: 37141-99E00 Weight: 0.060000 Brand: Price: $ 15.38 |
(931) Ignition Key | 2 | $ 15.38 | ||
| 5-2 | 37141-99E10 (932) Ignition Key
SKU: 37141-99E10 Weight: 0.060000 Brand: Price: $ 15.38 |
(932) Ignition Key | 2 | $ 15.38 | ||
| 5-3 | 37141-99E20 (933) Ignition Key
SKU: 37141-99E20 Weight: 0.060000 Brand: Price: $ 15.38 |
(933) Ignition Key | 2 | $ 15.38 | ||
| 5-4 | 37141-99E30 (934) Ignition Key
SKU: 37141-99E30 Weight: 0.060000 Brand: Price: $ 15.38 |
(934) Ignition Key | 2 | $ 15.38 | ||
| 5-5 | 37141-99E40 (935) Ignition Key
SKU: 37141-99E40 Weight: 0.060000 Brand: Price: $ 15.38 |
(935) Ignition Key | 2 | $ 15.38 | ||
| 5-6 | 37141-99E50 (936) Ignition Key
SKU: 37141-99E50 Weight: 0.060000 Brand: Price: $ 15.38 |
(936) Ignition Key | 2 | $ 15.38 | ||
| 5-7 | 37141-99E60 (937) Ignition Key
SKU: 37141-99E60 Weight: 0.060000 Brand: Price: $ 15.38 |
(937) Ignition Key | 2 | $ 15.38 | ||
| 5-8 | 37141-99E70 (938) Ignition Key
SKU: 37141-99E70 Weight: 0.060000 Brand: Price: $ 15.38 |
(938) Ignition Key | 2 | $ 15.38 | ||
| 5-9 | 37141-99E80 (939) Ignition Key
SKU: 37141-99E80 Weight: 0.060000 Brand: Price: $ 15.38 |
(939) Ignition Key | 2 | $ 15.38 | ||
| 5-10 | 37141-99E90 (940) Ignition Key
SKU: 37141-99E90 Weight: 0.060000 Brand: Price: $ 15.38 |
(940) Ignition Key | 2 | $ 15.38 | ||
| 5-11 | 37141-99EA0 (941) Ignition Key
SKU: 37141-99EA0 Weight: 0.060000 Brand: Price: $ 15.38 |
(941) Ignition Key | 2 | $ 15.38 | ||
| 5-12 | 37141-99EB0 (942) Ignition Key
SKU: 37141-99EB0 Weight: 0.060000 Brand: Price: $ 15.38 |
(942) Ignition Key | 2 | $ 15.38 | ||
| 6 | 37143-99E01 Key Cap
SKU: 37143-99E01 Weight: 0.060000 Brand: Price: $ 6.09 |
Key Cap | 1 | $ 6.09 | ||
| 7 | 37149-93J00 Cylinder Body Cap
SKU: 37149-93J00 Weight: 0.060000 Brand: Price: $ 8.50 |
Cylinder Body Cap | 1 | $ 8.50 | ||
| 8 | 37721-93J91 Neutral Switch Assembly
SKU: 37721-93J91 Weight: 0.250000 Brand: Price: $ 44.17 |
Neutral Switch Assembly | 1 | $ 44.17 | ||
| 9 | 37820-93J05 Emergency Stop Switch Assembly
SKU: 37820-93J05 Weight: 0.250000 Brand: Price: $ 41.72 |
Emergency Stop Switch Assembly | 1 | $ 41.72 | ||
| 10 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 11 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 12 | 68165-16B01-13L Suzuki Emblem
SKU: 68165-16B01-13L Weight: 0.060000 Brand: Price: $ 4.80 |
Suzuki Emblem | 1 | $ 4.80 | ||
| 13 | 38500-93J00 Warning Buzzer*
SKU: 38500-93J00 Weight: 0.140000 Brand: Price: $ 67.48 |
Warning Buzzer* | 1 | $ 67.48 | ||
| 14 | 67212-95600 Washer (NLA)
SKU: 67212-95600 Weight: 0.100000 Brand: Price: $ 2.03 |
Washer (NLA) | 1 | $ 2.03 | ||
| 15 | 67213-92E00 Buzzer Bracket (NLA)
SKU: 67213-92E00 Weight: 0.100000 Brand: Price: $ 3.69 |
Buzzer Bracket (NLA) | 1 | $ 3.69 | ||
| 16 | 09125-05042 Screw (5x10)
SKU: 09125-05042 Weight: 0.060000 Brand: Price: $ 1.99 |
Screw (5x10) | 1 | $ 1.99 | ||
| 17 | 67296-92E11 Screw (3x15)
SKU: 67296-92E11 Weight: 0.100000 Brand: Price: $ 3.01 |
Screw (3x15) | 2 | $ 3.01 | ||
| 18 | 67220-95630 Plate Assembly
SKU: 67220-95630 Weight: 0.420000 Brand: Price: $ 96.86 |
Plate Assembly | 1 | $ 96.86 | ||
| 19 | 67223-99E10 Brake Adjustment Knob
SKU: 67223-99E10 Weight: 0.060000 Brand: Price: $ 9.12 |
Brake Adjustment Knob | 1 | $ 9.12 | ||
| 20 | 67229-95600 Roller (NLA)
SKU: 67229-95600 Weight: 0.100000 Brand: Price: $ 3.82 |
Roller (NLA) | 1 | $ 3.82 | ||
| 21 | 67232-95600 Bushing
SKU: 67232-95600 Weight: 0.100000 Brand: Price: $ 6.50 |
Bushing | 1 | $ 6.50 | ||
| 22 | 67238-87D00 Drive Gear
SKU: 67238-87D00 Weight: 0.100000 Brand: Price: $ 48.50 |
Drive Gear | 1 | $ 48.50 | ||
| 23 | 67241-99E10 Free Throttle Lever (NLA)
SKU: 67241-99E10 Weight: 0.100000 Brand: Price: $ 15.56 |
Free Throttle Lever (NLA) | 1 | $ 15.56 | ||
| 24 | 67243-95600 Bushing (NLA)
SKU: 67243-95600 Weight: 0.060000 Brand: Price: $ 3.16 |
Bushing (NLA) | 1 | $ 3.16 | ||
| 25 | 67244-95600 Wave Washer (NLA)
SKU: 67244-95600 Weight: 0.100000 Brand: Price: $ 2.19 |
Wave Washer (NLA) | 1 | $ 2.19 | ||
| 26 | 67245-95600 Free Throttle Drum (NLA)
SKU: 67245-95600 Weight: 0.100000 Brand: Price: $ 14.51 |
Free Throttle Drum (NLA) | 1 | $ 14.51 | ||
| 27 | 67251-99E10 Handle Lever
SKU: 67251-99E10 Weight: 0.100000 Brand: Price: $ 57.62 |
Handle Lever | 1 | $ 57.62 | ||
| 28 | 67252-95600 Bushing
SKU: 67252-95600 Weight: 0.060000 Brand: Price: $ 5.10 |
Bushing | 2 | $ 5.10 | ||
| 29 | 67253-95600 Washer (NLA)
SKU: 67253-95600 Weight: 0.100000 Brand: Price: $ 2.64 |
Washer (NLA) | 1 | $ 2.64 | ||
| 30 | 67255-99E00 Neutral Lock Arm
SKU: 67255-99E00 Weight: 0.100000 Brand: Price: $ 13.57 |
Neutral Lock Arm | 1 | $ 13.57 | ||
| 31 | 67256-95600 Neutral Lock Holder
SKU: 67256-95600 Weight: 0.060000 Brand: Price: $ 10.73 |
Neutral Lock Holder | 1 | $ 10.73 | ||
| 32 | 67257-99E00 Lever Cap
SKU: 67257-99E00 Weight: 0.060000 Brand: Price: $ 7.46 |
Lever Cap | 1 | $ 7.46 | ||
| 33 | 67258-99E00 Neutral Arm Bracket
SKU: 67258-99E00 Weight: 0.100000 Brand: Price: $ 5.38 |
Neutral Arm Bracket | 1 | $ 5.38 | ||
| 34 | 67259-87D00 Neutral Arm Spring (NLA)
SKU: 67259-87D00 Weight: 0.060000 Brand: Price: $ 4.38 |
Neutral Arm Spring (NLA) | 1 | $ 4.38 | ||
| 35 | 67261-99E00 Grip
SKU: 67261-99E00 Weight: 0.250000 Brand: Price: $ 33.95 |
Grip | 1 | $ 33.95 | ||
| 36 | 67296-94310 Screw
SKU: 67296-94310 Weight: 0.060000 Brand: Price: $ 1.85 |
Screw | 1 | $ 1.85 | ||
| 37 | 67264-95600 Washer (NLA)
SKU: 67264-95600 Weight: 0.100000 Brand: Price: $ 2.10 |
Washer (NLA) | 1 | $ 2.10 | ||
| 38 | 67267-93J00 Wire Cover
SKU: 67267-93J00 Weight: 0.250000 Brand: Price: $ 6.87 |
Wire Cover | 1 | $ 6.87 | ||
| 39 | 67273-95600 Spacer
SKU: 67273-95600 Weight: 0.060000 Brand: Price: $ 3.88 |
Spacer | 1 | $ 3.88 | ||
| 40 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 2 | $ 8.02 | ||
| 41 | 67288-92E00 Washer
SKU: 67288-92E00 Weight: 0.060000 Brand: Price: $ 2.88 |
Washer | 1 | $ 2.88 | ||
| 42 | 67292-94300 E Ring
SKU: 67292-94300 Weight: 0.060000 Brand: Price: $ 1.22 |
E Ring | 3 | $ 1.22 | ||
| 43 | 67294-95600 Spacer
SKU: 67294-95600 Weight: 0.060000 Brand: Price: $ 4.67 |
Spacer | 3 | $ 4.67 | ||
| 44 | 67296-90J10 Rear Cover Screw
SKU: 67296-90J10 Weight: 0.060000 Brand: Price: $ 2.92 |
Rear Cover Screw | 5 | $ 2.92 | ||
| 45 | 67296-94300 Screw (4x10)
SKU: 67296-94300 Weight: 0.060000 Brand: Price: $ 1.31 |
Screw (4x10) | 2 | $ 1.31 | ||
| 46 | 67296-95600 Screw
SKU: 67296-95600 Weight: 0.060000 Brand: Price: $ 5.83 |
Screw | 3 | $ 5.83 | ||
| 47 | 67296-95610 Screw
SKU: 67296-95610 Weight: 0.060000 Brand: Price: $ 2.85 |
Screw | 2 | $ 2.85 | ||
| 48 | 67297-95600 Washer
SKU: 67297-95600 Weight: 0.060000 Brand: Price: $ 2.96 |
Washer | 2 | $ 2.96 | ||
| 49 | 09126-05003 Screw (5x12)
SKU: 09126-05003 Weight: 0.060000 Brand: Price: $ 2.06 |
Screw (5x12) | 2 | $ 2.06 | ||
| 50 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 3 | $ 1.82 | ||
| 51 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 3 | $ 2.64 | ||
| 52 | 37859-90J00 Spacer
SKU: 37859-90J00 Weight: 0.100000 Brand: Price: $ 3.74 |
Spacer | 1 | $ 3.74 | ||
| 53 | 36620-94J01 21 ft. Main Wiring Harness (NON PT or PTT)
SKU: 36620-94J01 Weight: 5.000000 Brand: Price: $ 294.26 |
21 ft. Main Wiring Harness (NON PT or PTT) | 1 | $ 294.26 | ||
| 54 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | ||
| 55 | 67140-95600 Replaced by 67140-95601
SKU: 67140-95600 Weight: 0.300000 Brand: Price: $ 35.78 |
Replaced by 67140-95601 | 1 | $ 35.78 | ||
| 56 | 67294-95600 Spacer
SKU: 67294-95600 Weight: 0.060000 Brand: Price: $ 4.67 |
Spacer | 3 | $ 4.67 | ||
| 57 | 67296-95620 Screw (L:165) (NLA)
SKU: 67296-95620 Weight: 0.100000 Brand: Price: $ 9.33 |
Screw (L:165) (NLA) | 3 | $ 9.33 | ||
| 58 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
