Suzuki DF 9.9B Parts Listings - 2014
S/N 00995F-410001 to 00995F-41XXXX

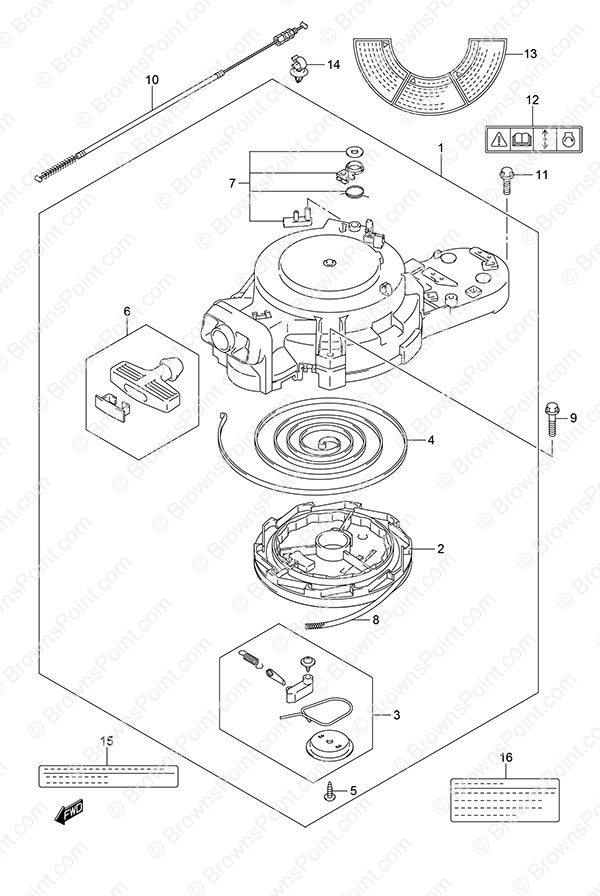

Fig. 27 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-94JN1 STARTER ASSY,RE
SKU: 18100-94JN1 Weight: 0.000000 Brand: Price: $ 105.12 |
STARTER ASSY,RE | 1 | $ 105.12 | ||
| 2 | 18121-94JL0 Reel
SKU: 18121-94JL0 Weight: 0.250000 Brand: Price: $ 66.16 |
Reel | 1 | $ 66.16 | ||
| 3 | 18130-93E01 Ratchet Set
SKU: 18130-93E01 Weight: 0.250000 Brand: Price: $ 17.20 |
Ratchet Set | 1 | $ 17.20 | ||
| 4 | 18142-93E00 Spiral Spring
SKU: 18142-93E00 Weight: 0.062500 Brand: Price: $ 27.50 |
Spiral Spring | 1 | $ 27.50 | ||
| 5 | 18132-89L00 Tapping Screw
SKU: 18132-89L00 Weight: 0.250000 Brand: Price: $ 2.26 |
Tapping Screw | 1 | $ 2.26 | ||
| 6 | 18210-93002 Grip Assembly
SKU: 18210-93002 Weight: 0.250000 Brand: Price: $ 16.38 |
Grip Assembly | 1 | $ 16.38 | ||
| 7 | 18280-93E00 NSI Set
SKU: 18280-93E00 Weight: 0.250000 Brand: Price: $ 9.89 |
NSI Set | 1 | $ 9.89 | ||
| 8 | 99000-81158-50M Starter Rope
SKU: 99000-81158-50M Weight: 10.000000 Brand: Price: $ 267.96 |
Starter Rope | 1 | $ 267.96 | Optional L:50000->1200 | |
| 9 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 3 | $ 2.74 | ||
| 10 | 18290-94J01 NSI Cable Assembly
SKU: 18290-94J01 Weight: 0.250000 Brand: Price: $ 36.12 |
NSI Cable Assembly | 1 | $ 36.12 | ||
| 11 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 12 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 13 | 61472-93E20 Recoil Starter Label (NLA)
SKU: 61472-93E20 Weight: 0.125000 Brand: Price: $ 6.11 |
Recoil Starter Label (NLA) | 1 | $ 6.11 | ||
| 14 | 09403-12415 Clamp (NLA)
SKU: 09403-12415 Weight: 0.250000 Brand: Price: $ 1.82 |
Clamp (NLA) | 1 | $ 1.82 | ||
| 15 | 61493-94J00 Clearance Label
SKU: 61493-94J00 Weight: 0.100000 Brand: Price: $ 6.22 |
Clearance Label | 1 | $ 6.22 | ||
| 16 | 61494-94J00 Oil Label
SKU: 61494-94J00 Weight: 0.100000 Brand: Price: $ 6.22 |
Oil Label | 1 | $ 6.22 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
