Suzuki DF 9.9B Parts Listings - 2014
S/N 00995F-410001 to 00995F-41XXXX

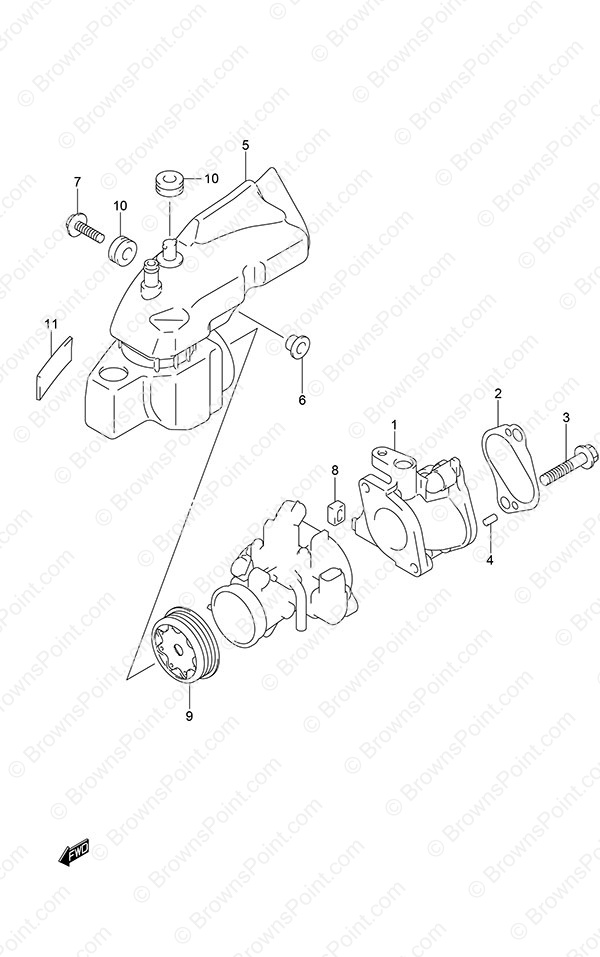

Fig. 14 - Inlet Manifold

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 13111-89L00 Inlet Manifold 1 $ 110.24
2 13119-89L00 Inlet Manifold Gasket 1 $ 3.90
3 01550-08407 BOLT 8 X 40 2 $ 3.48
4 04221-05109 PIN 2 $ 1.49
5 13811-89L00 Silencer 1 $ 30.93
6 09169-06062 Washer (6.3x17x1.6) 1 $ 2.52
7 09116-06202 Bolt w/Washer (6x25) 1 $ 3.54
8 13116-94J00 Inlet Manifold Cap (NLA) 1 $ 2.49

Not Available

9 13820-89L10 Restrictor Holder 1 $ 9.28
10 09320-09052 Cushion 2 $ 1.91
11 13831-89L00 Air Inlet Pipe Cushion (NLA) 1 $ 3.11

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
