Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

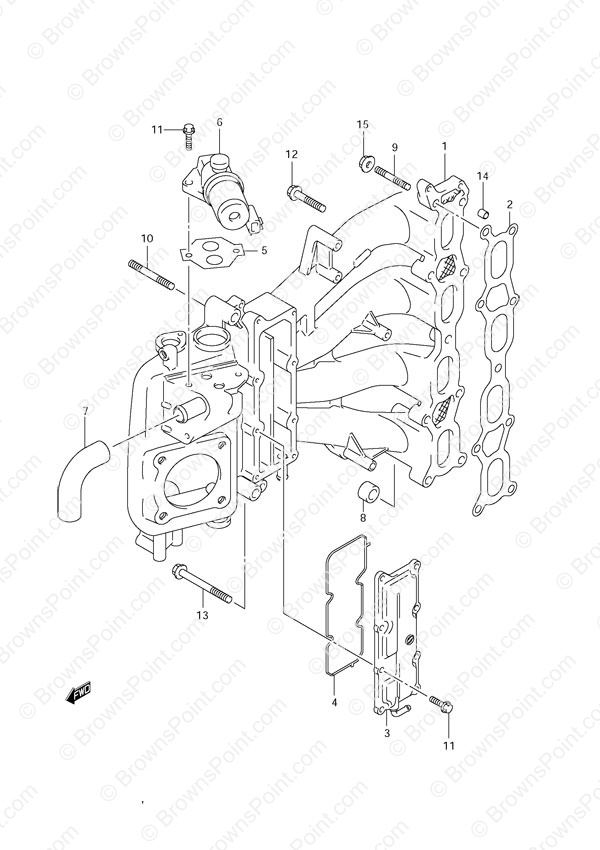

Fig. 7 - Intake Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13110-90J02 Intake Manifold
SKU: 13110-90J02 Weight: 4.000000 Brand: Price: $ 432.15 |
Intake Manifold | 1 | $ 432.15 | ||
| 2 | 13119-90J00 Intake Manifold Gasket
SKU: 13119-90J00 Weight: 0.060000 Brand: Price: $ 6.88 |
Intake Manifold Gasket | 1 | $ 6.88 | ||
| 3 | 13140-90J00 Water Jacket Cover
SKU: 13140-90J00 Weight: 0.100000 Brand: Price: $ 74.59 |
Water Jacket Cover | 1 | $ 74.59 | ||
| 4 | 13145-90J00 Water Jacket Cover O-Ring
SKU: 13145-90J00 Weight: 0.060000 Brand: Price: $ 10.24 |
Water Jacket Cover O-Ring | 1 | $ 10.24 | ||
| 5 | 18134-77E00 IAC Valve Gasket
SKU: 18134-77E00 Weight: 0.060000 Brand: Price: $ 3.93 |
IAC Valve Gasket | 1 | $ 3.93 | ||
| 6 | 18137-77E00 IAC Valve
SKU: 18137-77E00 Weight: 0.540000 Brand: Price: $ 358.11 |
IAC Valve | 1 | $ 358.11 | ||
| 7 | 18141-90J00 IAC Hose
SKU: 18141-90J00 Weight: 0.060000 Brand: Price: $ 12.49 |
IAC Hose | 1 | $ 12.49 | ||
| 8 | 09329-12004 Cushion
SKU: 09329-12004 Weight: 0.060000 Brand: Price: $ 2.67 |
Cushion | 1 | $ 2.67 | ||
| 9 | 01421-08357 BOLT,STUD
SKU: 01421-08357 Weight: 0.060000 Brand: Price: $ 4.62 |
BOLT,STUD | 1 | $ 4.62 | ||
| 10 | 01421-08507 STUD BOLT
SKU: 01421-08507 Weight: 0.060000 Brand: Price: $ 5.01 |
STUD BOLT | 1 | $ 5.01 | ||
| 11 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 10 | $ 2.33 | ||
| 12 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 8 | $ 3.48 | ||
| 13 | 01550-08757 BOLT
SKU: 01550-08757 Weight: 0.080000 Brand: Price: $ 4.05 |
BOLT | 1 | $ 4.05 | ||
| 14 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 15 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 2 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
