Suzuki DF 9.9A Parts Listings - 2014
S/N 00994F-410001 to 00994F-41XXXX

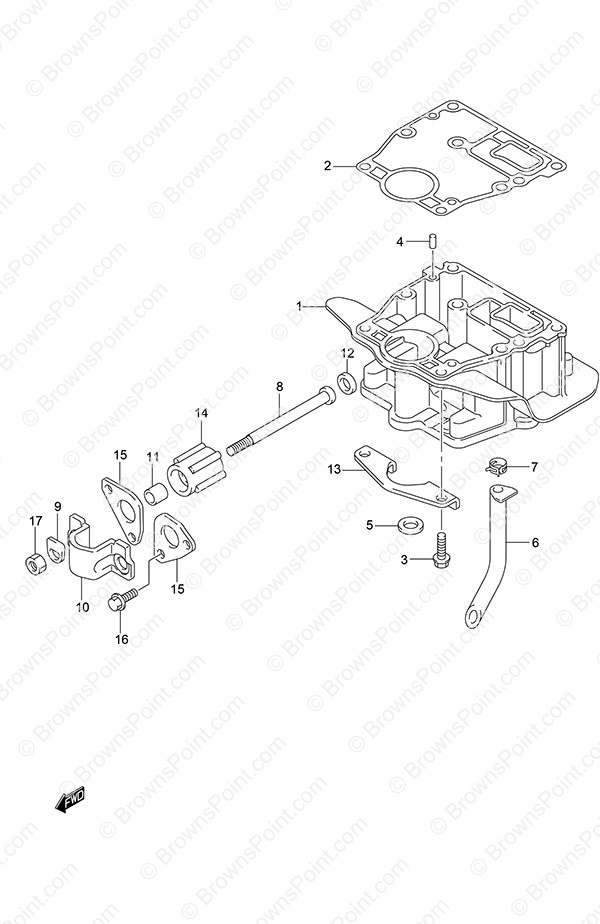

Fig. 57 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51110-99J00 Engine Holder
SKU: 51110-99J00 Weight: 5.000000 Brand: Price: $ 387.97 |
Engine Holder | 1 | $ 387.97 | ||
| 2 | 51211-99J00 Engine Holder Gasket
SKU: 51211-99J00 Weight: 0.060000 Brand: Price: $ 76.21 |
Engine Holder Gasket | 1 | $ 76.21 | ||
| 3 | 09116-08151 Bolt (8x30)
SKU: 09116-08151 Weight: 0.250000 Brand: Price: $ 2.18 |
Bolt (8x30) | 2 | $ 2.18 | ||
| 4 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 5 | 09282-12017 Oil Seal (11x24x4.5)
SKU: 09282-12017 Weight: 0.250000 Brand: Price: $ 18.90 |
Oil Seal (11x24x4.5) | 1 | $ 18.90 | ||
| 6 | 16515-99J00 Oil Hose
SKU: 16515-99J00 Weight: 0.250000 Brand: Price: $ 41.27 |
Oil Hose | 1 | $ 41.27 | ||
| 7 | 09401-15404 Clip
SKU: 09401-15404 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 1 | $ 2.27 | ||
| 8 | 54112-99J01 Upper Mount Bolt (L:123)
SKU: 54112-99J01 Weight: 0.250000 Brand: Price: $ 29.83 |
Upper Mount Bolt (L:123) | 2 | $ 29.83 | ||
| 9 | 54113-99JL0 Upper Mount Bolt Washer
SKU: 54113-99JL0 Weight: 0.250000 Brand: Price: $ 7.06 |
Upper Mount Bolt Washer | 2 | $ 7.06 | ||
| 10 | 54120-99J00 Upper Thrust Mount
SKU: 54120-99J00 Weight: 0.250000 Brand: Price: $ 42.22 |
Upper Thrust Mount | 1 | $ 42.22 | ||
| 11 | 54122-99J00 Upper Mount Spacer
SKU: 54122-99J00 Weight: 0.250000 Brand: Price: $ 42.22 |
Upper Mount Spacer | 2 | $ 42.22 | ||
| 12 | 54125-99J00 Upper Reverse Thrust Stopper
SKU: 54125-99J00 Weight: 0.250000 Brand: Price: $ 8.84 |
Upper Reverse Thrust Stopper | 2 | $ 8.84 | ||
| 13 | 54126-99JL0 Upper Thrust Stopper
SKU: 54126-99JL0 Weight: 0.250000 Brand: Price: $ 30.23 |
Upper Thrust Stopper | 1 | $ 30.23 | ||
| 14 | 54130-99J00 Upper Mount
SKU: 54130-99J00 Weight: 0.250000 Brand: Price: $ 68.00 |
Upper Mount | 2 | $ 68.00 | ||
| 15 | 54148-99J00 Upper Mount Cover
SKU: 54148-99J00 Weight: 0.250000 Brand: Price: $ 40.67 |
Upper Mount Cover | 2 | $ 40.67 | ||
| 16 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 4 | $ 7.44 | ||
| 17 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
