Suzuki DF 9.9A Parts Listings - 2014
S/N 00994F-410001 to 00994F-41XXXX

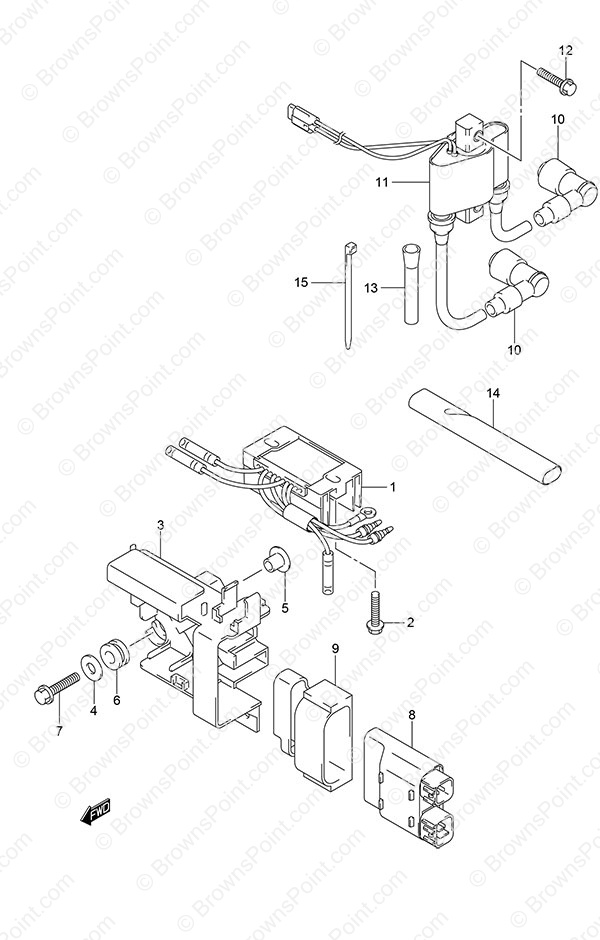

Fig. 39 - Rectifier/Ignition Coil Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-99J00 Rectifier/Regulator Assembly
SKU: 32800-99J00 Weight: 1.000000 Brand: Price: $ 222.23 |
Rectifier/Regulator Assembly | 1 | $ 222.23 | Electric Starter | |
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | Electric Starter | |
| 3 | 32890-99J00 Electric Parts Holder
SKU: 32890-99J00 Weight: 0.250000 Brand: Price: $ 31.84 |
Electric Parts Holder | 1 | $ 31.84 | ||
| 4 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 2 | $ 1.78 | ||
| 5 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 6 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 2 | $ 1.97 | ||
| 7 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 8-1 | 32900-99J00 CDI Unit
SKU: 32900-99J00 Weight: 1.000000 Brand: Price: $ 347.16 |
CDI Unit | 1 | $ 347.16 | Electric Starter | |
| 8-2 | 32900-99J10 CDI Unit
SKU: 32900-99J10 Weight: 1.000000 Brand: Price: $ 347.16 |
CDI Unit | 1 | $ 347.16 | Manual Starter | |
| 9 | 32980-99J00 CDI Cushion
SKU: 32980-99J00 Weight: 0.250000 Brand: Price: $ 28.99 |
CDI Cushion | 1 | $ 28.99 | ||
| 10 | 33500-07H00 Spark Plug Cap
SKU: 33500-07H00 Weight: 0.080000 Brand: Price: $ 44.59 |
Spark Plug Cap | 2 | $ 44.59 | ||
| 11 | 33410-99J00 Ignition Coil Assembly
SKU: 33410-99J00 Weight: 0.250000 Brand: Price: $ 131.60 |
Ignition Coil Assembly | 1 | $ 131.60 | ||
| 12 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 13 | 33833-94JL0 Switch Lead Tube
SKU: 33833-94JL0 Weight: 0.100000 Brand: Price: $ 4.39 |
Switch Lead Tube | 1 | $ 4.39 | ||
| 14 | 33833-94J10 Protector (NLA)
SKU: 33833-94J10 Weight: 0.100000 Brand: Price: $ 1.87 |
Protector (NLA) | 1 | $ 1.87 | Electric Starter | |
| 15 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | Electric Starter |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
