Suzuki DF 9.9A Parts Listings - 2014
S/N 00994F-410001 to 00994F-41XXXX

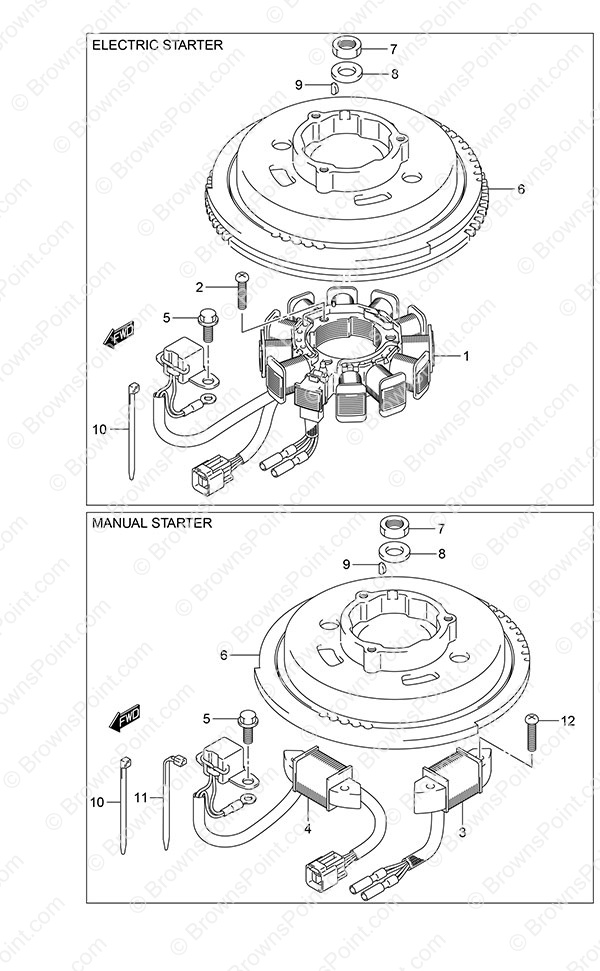

Fig. 35 - Magneto Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32120-99J00 Stator & Pulser Coil
SKU: 32120-99J00 Weight: 1.000000 Brand: Price: $ 274.18 |
Stator & Pulser Coil | 1 | $ 274.18 | Electric Starter | |
| 2 | 09125-06035 Screw (6x25)
SKU: 09125-06035 Weight: 0.060000 Brand: Price: $ 1.93 |
Screw (6x25) | 3 | $ 1.93 | Electric Starter | |
| 4 | 32140-99J10 Exiter/Pulser Coil (NLA)
SKU: 32140-99J10 Weight: 0.500000 Brand: Price: $ 120.89 |
Exiter/Pulser Coil (NLA) | 1 | $ 120.89 | Manual Starter | |
| 5 | 01550-05127 Bolt
SKU: 01550-05127 Weight: 0.060000 Brand: Price: $ 1.49 |
Bolt | 2 | $ 1.49 | ||
| 6-2 | 32102-99J10 FLYWHEEL,MAGNET
SKU: 32102-99J10 Weight: 0.000000 Brand: Price: $ 352.10 |
FLYWHEEL,MAGNET | 1 | $ 352.10 | Manual Starter | |
| 7 | 09140-14008 Nut 14mm
SKU: 09140-14008 Weight: 0.125000 Brand: Price: $ 2.32 |
Nut 14mm | 1 | $ 2.32 | ||
| 8 | 09160-15057 Washer (15x27x4)
SKU: 09160-15057 Weight: 0.250000 Brand: Price: $ 2.26 |
Washer (15x27x4) | 1 | $ 2.26 | ||
| 9 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 10 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 11 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | Manual Starter | |
| 12 | 02112-06307 SCREW, 6X30 CRO
SKU: 02112-06307 Weight: 0.125000 Brand: Price: $ 1.97 |
SCREW, 6X30 CRO | 4 | $ 1.97 | Manual Starter |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
