Suzuki DF 9.9A Parts Listings - 2014
S/N 00994F-410001 to 00994F-41XXXX

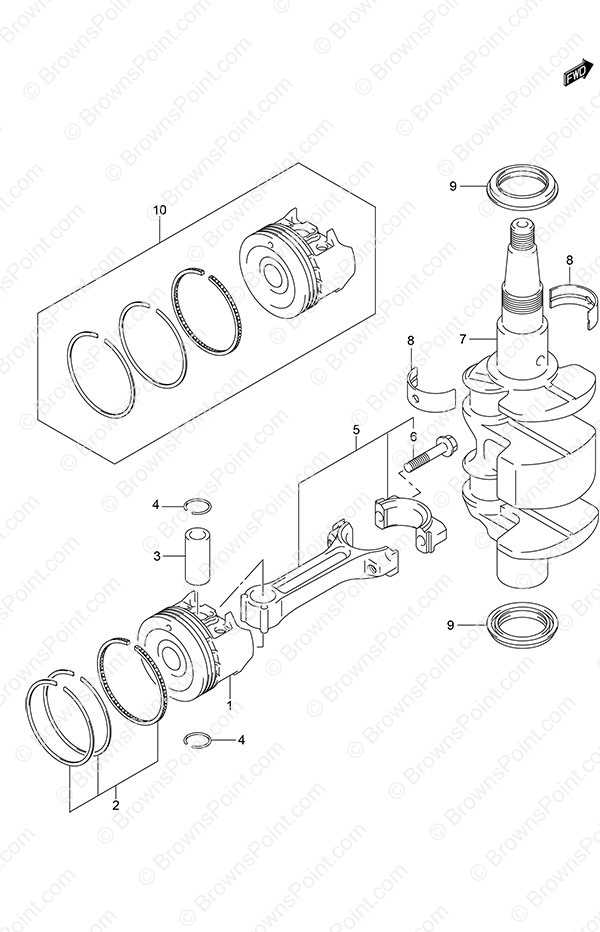

Fig. 3 - Crankshaft

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 12111-99JL0-0B0 Piston 2 $ 48.73
2 12140-99J00 Piston Ring Set 2 $ 69.26
3 12151-99JL0 Piston Pin 2 $ 0.00
4 09381-14001 Piston Pin Circlip 4 $ 1.44
5 12160-99JL1 Connecting Rod Assembly 2 $ 42.86
6 12163-99JL0 Connecting Rod Bolt 4 $ 2.42

Not Available

7 12220-99JL0 Crankshaft Assembly 1 $ 0.00
8 12341-99J00 Crankshaft Bearing 4 $ 10.28

Not Available

9 09283-30075 Oil Seal (28.8x45.5x6.5) 2 $ 22.08

Not Available

10 12100-99JL0-050 Piston & Ring Set (OS:0.50) 2 $ 0.00
Optional

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
