Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

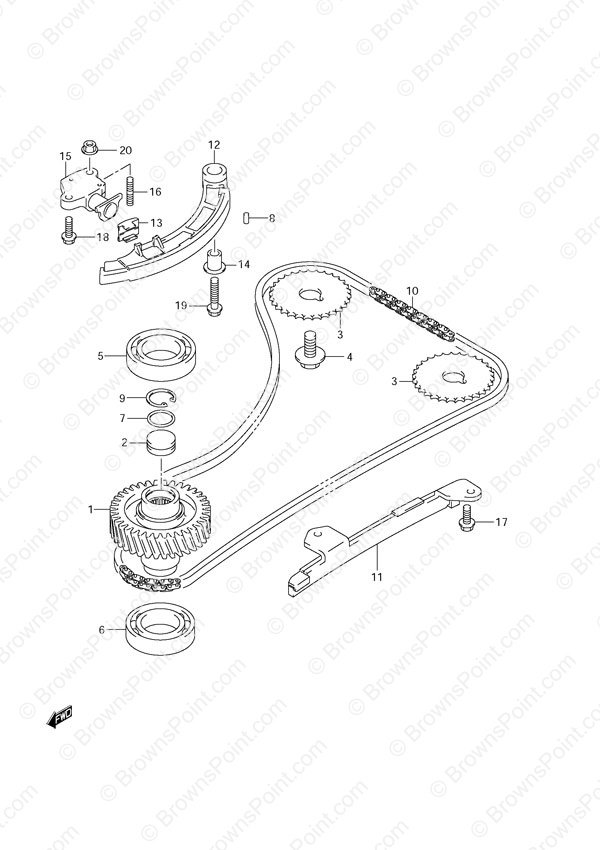

Fig. 5 - Timing Chain
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12732-90J01 GEAR,DRIVEN
SKU: 12732-90J01 Weight: 1.500000 Brand: Price: $ 168.29 |
GEAR,DRIVEN | 1 | $ 168.29 | ||
| 2 | 12733-90J00 Driven Gear Plug
SKU: 12733-90J00 Weight: 0.100000 Brand: Price: $ 8.02 |
Driven Gear Plug | 1 | $ 8.02 | ||
| 3 | 12741-90J01 Camshaft Timing Sprocket
SKU: 12741-90J01 Weight: 0.100000 Brand: Price: $ 21.84 |
Camshaft Timing Sprocket | 2 | $ 21.84 | ||
| 4 | 09103-12049 Bolt (12x25)
SKU: 09103-12049 Weight: 0.060000 Brand: Price: $ 4.27 |
Bolt (12x25) | 2 | $ 4.27 | ||
| 5 | 09262-35068 Bearing (35x62x14)
SKU: 09262-35068 Weight: 0.340000 Brand: Price: $ 55.94 |
Bearing (35x62x14) | 1 | $ 55.94 | Upper | |
| 6 | 09262-35069 Bearing (35x62x16)
SKU: 09262-35069 Weight: 0.400000 Brand: Price: $ 106.42 |
Bearing (35x62x16) | 1 | $ 106.42 | Lower | |
| 7 | 09280-22022 O-Ring
SKU: 09280-22022 Weight: 0.060000 Brand: Price: $ 4.92 |
O-Ring | 1 | $ 4.92 | ||
| 8 | 04221-05109 PIN
SKU: 04221-05109 Weight: 0.125000 Brand: Price: $ 1.49 |
PIN | 2 | $ 1.49 | ||
| 9 | 08331-41269 Circlip
SKU: 08331-41269 Weight: 0.100000 Brand: Price: $ 2.37 |
Circlip | 1 | $ 2.37 | ||
| 10 | 12761-90J00 Timing Chain
SKU: 12761-90J00 Weight: 0.700000 Brand: Price: $ 95.23 |
Timing Chain | 1 | $ 95.23 | ||
| 11 | 12771-90J00 Timing Chain Guide
SKU: 12771-90J00 Weight: 0.400000 Brand: Price: $ 54.59 |
Timing Chain Guide | 1 | $ 54.59 | ||
| 12 | 12810-90J00 Timing Chain Tensioner
SKU: 12810-90J00 Weight: 0.100000 Brand: Price: $ 78.25 |
Timing Chain Tensioner | 1 | $ 78.25 | ||
| 13 | 12813-73G00 Timing Chain Tensioner Pad
SKU: 12813-73G00 Weight: 0.100000 Brand: Price: $ 4.09 |
Timing Chain Tensioner Pad | 1 | $ 4.09 | ||
| 14 | 12812-90J00 Timing Chain Tensioner Spacer
SKU: 12812-90J00 Weight: 0.100000 Brand: Price: $ 7.10 |
Timing Chain Tensioner Spacer | 1 | $ 7.10 | ||
| 15 | 12831-90J02 Tensioner Adjuster Assembly
SKU: 12831-90J02 Weight: 0.320000 Brand: Price: $ 108.92 |
Tensioner Adjuster Assembly | 1 | $ 108.92 | ||
| 16 | 01421-0616A BOLT,STUD
SKU: 01421-0616A Weight: 0.100000 Brand: Price: $ 1.91 |
BOLT,STUD | 1 | $ 1.91 | ||
| 17 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 18 | 01550-0620A BOLT
SKU: 01550-0620A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 19 | 01550-0835A BOLT
SKU: 01550-0835A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 1 | $ 3.09 | ||
| 20 | 08316-1006A Nut
SKU: 08316-1006A Weight: 0.100000 Brand: Price: $ 2.21 |
Nut | 1 | $ 2.21 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
