Suzuki DF 6 Parts Listings - 2014
S/N 00602F-410001 to 00602F-41XXXX

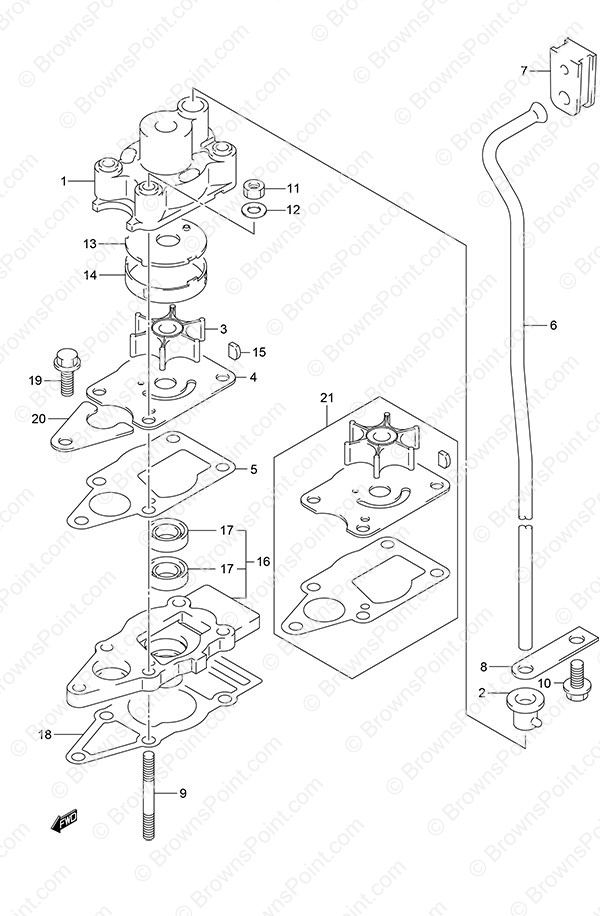

Fig. 11 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-91JL0 Water Pump Case
SKU: 17410-91JL0 Weight: 0.160000 Brand: Price: $ 37.32 |
Water Pump Case | 1 | $ 37.32 | ||
| 2 | 17415-98501 Water Pump Case Grommet
SKU: 17415-98501 Weight: 0.060000 Brand: Price: $ 2.07 |
Water Pump Case Grommet | 1 | $ 2.07 | ||
| 3 | 17461-985M0 Water Pump Impeller
SKU: 17461-985M0 Weight: 0.060000 Brand: Price: $ 21.72 |
Water Pump Impeller | 1 | $ 21.72 | ||
| 4 | 17471-98610 Water Pump Plate (NLA)
SKU: 17471-98610 Weight: 0.200000 Brand: Price: $ 5.28 |
Water Pump Plate (NLA) | 1 | $ 5.28 | ||
| 5 | 17472-91J00 Water Pump Plate Gasket
SKU: 17472-91J00 Weight: 0.060000 Brand: Price: $ 2.62 |
Water Pump Plate Gasket | 1 | $ 2.62 | ||
| 6-1 | 17561-91JN0 Water Tube (S)
SKU: 17561-91JN0 Weight: 0.500000 Brand: Price: $ 22.72 |
Water Tube (S) | 1 | $ 22.72 | w/Transom (S) | |
| 6-2 | 17561-91JP0 Water Tube (L)
SKU: 17561-91JP0 Weight: 0.500000 Brand: Price: $ 26.43 |
Water Tube (L) | 1 | $ 26.43 | Type: L | |
| 7 | 17563-91J01 Water Tube Upper Grommet
SKU: 17563-91J01 Weight: 0.250000 Brand: Price: $ 4.21 |
Water Tube Upper Grommet | 1 | $ 4.21 | ||
| 8 | 17564-98600 Water Tube Guide
SKU: 17564-98600 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Tube Guide | 1 | $ 3.47 | ||
| 9 | 09108-06146 Stud Bolt (6x52)
SKU: 09108-06146 Weight: 0.060000 Brand: Price: $ 4.25 |
Stud Bolt (6x52) | 4 | $ 4.25 | ||
| 10 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 1 | $ 2.60 | ||
| 11 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 4 | $ 1.80 | ||
| 12 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 4 | $ 1.44 | ||
| 13 | 17412-91JL0 Water Pump Case Upper Plate
SKU: 17412-91JL0 Weight: 0.060000 Brand: Price: $ 3.57 |
Water Pump Case Upper Plate | 1 | $ 3.57 | ||
| 14 | 17413-91JL0 Water Pump Case Sleeve
SKU: 17413-91JL0 Weight: 0.060000 Brand: Price: $ 5.95 |
Water Pump Case Sleeve | 1 | $ 5.95 | ||
| 16 | 56130-91J20 Drive Shaft Bearing Housing
SKU: 56130-91J20 Weight: 1.000000 Brand: Price: $ 91.96 |
Drive Shaft Bearing Housing | 1 | $ 91.96 | ||
| 17 | 09282-10008 Oil Seal (10x21x4.5)
SKU: 09282-10008 Weight: 0.060000 Brand: Price: $ 3.57 |
Oil Seal (10x21x4.5) | 2 | $ 3.57 | ||
| 18 | 56132-91J00 Drive Shaft Housing Gasket
SKU: 56132-91J00 Weight: 0.060000 Brand: Price: $ 7.01 |
Drive Shaft Housing Gasket | 1 | $ 7.01 | ||
| 19 | 09116-06229 Bolt (6x25)
SKU: 09116-06229 Weight: 0.250000 Brand: Price: $ 2.38 |
Bolt (6x25) | 1 | $ 2.38 | ||
| 20 | 25215-98601 Shift Rod Guide Stopper
SKU: 25215-98601 Weight: 0.200000 Brand: Price: $ 2.96 |
Shift Rod Guide Stopper | 1 | $ 2.96 | ||
| 21 | 17400-986L2 Water Pump Repair Kit DF4/4A/6/6A
SKU: 17400-986L2 Weight: 0.250000 Brand: Price: $ 26.00 |
Water Pump Repair Kit DF4/4A/6/6A | 1 | $ 26.00 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
