Suzuki DF 4 Parts Listings - 2014
S/N 00402F-410001 to 00402F-41XXXX

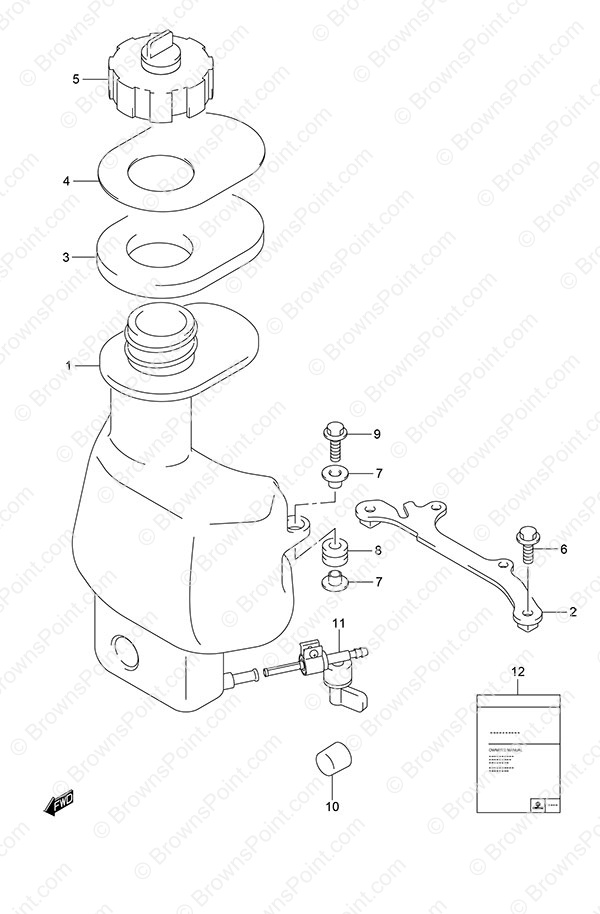

Fig. 27 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65110-91J40 Fuel Tank
SKU: 65110-91J40 Weight: 2.000000 Brand: Price: $ 85.67 |
Fuel Tank | 1 | $ 85.67 | ||
| 2 | 65260-91J00 Fuel Tank Bracket (NLA)
SKU: 65260-91J00 Weight: 0.100000 Brand: Price: $ 20.29 |
Fuel Tank Bracket (NLA) | 1 | $ 20.29 | ||
| 3 | 65281-91J11 Fuel Tank Grommet
SKU: 65281-91J11 Weight: 0.060000 Brand: Price: $ 16.49 |
Fuel Tank Grommet | 1 | $ 16.49 | ||
| 4 | 65284-91JL0 Fuel Tank Grommet Rubber
SKU: 65284-91JL0 Weight: 0.060000 Brand: Price: $ 7.30 |
Fuel Tank Grommet Rubber | 1 | $ 7.30 | ||
| 5 | 65510-97J00 Fuel Tank Cap Assembly
SKU: 65510-97J00 Weight: 0.250000 Brand: Price: $ 36.52 |
Fuel Tank Cap Assembly | 1 | $ 36.52 | ||
| 6 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 7 | 09169-06088 Washer (NLA)
SKU: 09169-06088 Weight: 0.100000 Brand: Price: $ 3.86 |
Washer (NLA) | 4 | $ 3.86 | ||
| 8 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 2 | $ 3.31 | ||
| 9 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 61151-91J20 Cushion
SKU: 61151-91J20 Weight: 0.100000 Brand: Price: $ 4.08 |
Cushion | 2 | $ 4.08 | ||
| 11 | 66100-91JL0 Fuel Cock Assembly
SKU: 66100-91JL0 Weight: 0.200000 Brand: Price: $ 39.41 |
Fuel Cock Assembly | 1 | $ 39.41 | ||
| 12 | 99011-91J40-03B Owners Manual DF4/DF6 - 2014
SKU: 99011-91J40-03B Weight: 0.250000 Brand: Price: $ 0.00 |
Owners Manual DF4/DF6 - 2014 | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
