Suzuki DF 4 Parts Listings - 2014
S/N 00402F-410001 to 00402F-41XXXX

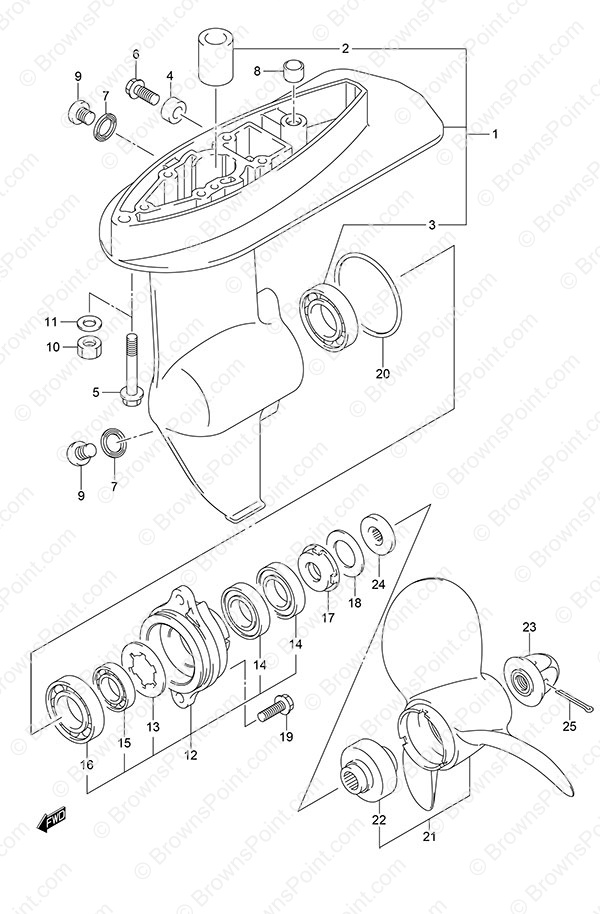

Fig. 21 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-91J30-0EP Gear Case Housing
SKU: 55100-91J30-0EP Weight: 10.000000 Brand: Price: $ 309.76 |
Gear Case Housing | 1 | $ 309.76 | ||
| 2 | 59311-91J00 Pinion Bushing
SKU: 59311-91J00 Weight: 0.200000 Brand: Price: $ 28.55 |
Pinion Bushing | 1 | $ 28.55 | ||
| 3 | 09262-20106 Bearing (20x42x12)
SKU: 09262-20106 Weight: 0.160000 Brand: Price: $ 25.39 |
Bearing (20x42x12) | 1 | $ 25.39 | ||
| 4 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 5 | 09116-08156 Bolt (8x50)
SKU: 09116-08156 Weight: 0.060000 Brand: Price: $ 4.71 |
Bolt (8x50) | 2 | $ 4.71 | w/Transom (S) | |
| 6 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 7 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 2 | $ 1.60 | ||
| 8 | 09206-11006 Pin (8.4x11x8) (NLA)
SKU: 09206-11006 Weight: 0.060000 Brand: Price: $ 2.73 |
Pin (8.4x11x8) (NLA) | 1 | $ 2.73 | ||
| 9 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 10 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | Type: L | |
| 11 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | Type: L | |
| 12 | 56120-91JM0-0EP Propeller Shaft Bearing Housing
SKU: 56120-91JM0-0EP Weight: 1.000000 Brand: Price: $ 135.37 |
Propeller Shaft Bearing Housing | 1 | $ 135.37 | ||
| 13 | 09167-23001 Washer
SKU: 09167-23001 Weight: 0.060000 Brand: Price: $ 2.93 |
Washer | 1 | $ 2.93 | ||
| 14 | 09282-12L05 Oil Seal
SKU: 09282-12L05 Weight: 0.250000 Brand: Price: $ 7.27 |
Oil Seal | 2 | $ 7.27 | ||
| 15 | 09262-12001 Bearing (12x28x8)
SKU: 09262-12001 Weight: 0.250000 Brand: Price: $ 18.80 |
Bearing (12x28x8) | 1 | $ 18.80 | ||
| 16 | 09262-20106 Bearing (20x42x12)
SKU: 09262-20106 Weight: 0.160000 Brand: Price: $ 25.39 |
Bearing (20x42x12) | 1 | $ 25.39 | ||
| 17 | 56122-98602 Oil Seal Protector
SKU: 56122-98602 Weight: 0.060000 Brand: Price: $ 4.47 |
Oil Seal Protector | 1 | $ 4.47 | ||
| 18 | 56123-98600 Protector Washer
SKU: 56123-98600 Weight: 0.060000 Brand: Price: $ 4.76 |
Protector Washer | 1 | $ 4.76 | ||
| 19 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
| 20 | 09280-49002 O-Ring
SKU: 09280-49002 Weight: 0.060000 Brand: Price: $ 1.92 |
O-Ring | 1 | $ 1.92 | ||
| 21-1 | 58110-91JL0-019 C601 Propeller (3x7-1/2x6)
SKU: 58110-91JL0-019 Weight: 1.500000 Brand: Price: $ 118.00 |
C601 Propeller (3x7-1/2x6) | 1 | $ 118.00 | ||
| 21-2 | 58110-91JM0-019 C611 Propeller (3x7-1/2x6-1/2)
SKU: 58110-91JM0-019 Weight: 1.500000 Brand: Price: $ 118.00 |
C611 Propeller (3x7-1/2x6-1/2) | 1 | $ 118.00 | ||
| 23 | 58130-91JL0 Propeller Nut
SKU: 58130-91JL0 Weight: 0.125000 Brand: Price: $ 37.86 |
Propeller Nut | 1 | $ 37.86 | ||
| 21-3 | 58110-91JN0-019 C701 Propeller (3x7-1/2x7)
SKU: 58110-91JN0-019 Weight: 1.500000 Brand: Price: $ 167.97 |
C701 Propeller (3x7-1/2x7) | 1 | $ 167.97 | ||
| 22 | 58120-91JL0 Type C Propeller Bushing
SKU: 58120-91JL0 Weight: 0.160000 Brand: Price: $ 38.46 |
Type C Propeller Bushing | 1 | $ 38.46 | ||
| 24 | 57635-91JL0 Propeller Stopper
SKU: 57635-91JL0 Weight: 0.140000 Brand: Price: $ 44.01 |
Propeller Stopper | 1 | $ 44.01 | ||
| 25 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
