Suzuki DF 4 Parts Listings - 2014
S/N 00402F-410001 to 00402F-41XXXX

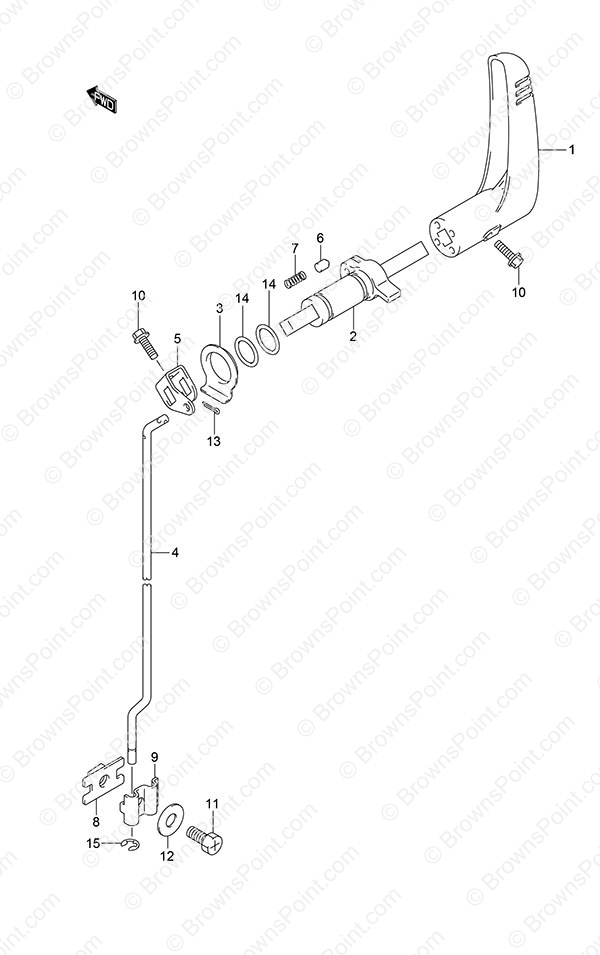

Fig. 14 - Clutch Lever
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21110-91JL0 Clutch Lever
SKU: 21110-91JL0 Weight: 0.250000 Brand: Price: $ 33.83 |
Clutch Lever | 1 | $ 33.83 | ||
| 2 | 21120-91J02 Clutch Notch Plate
SKU: 21120-91J02 Weight: 0.120000 Brand: Price: $ 30.10 |
Clutch Notch Plate | 1 | $ 30.10 | ||
| 3 | 21216-91J00 Clutch Shaft Spacer
SKU: 21216-91J00 Weight: 0.060000 Brand: Price: $ 5.08 |
Clutch Shaft Spacer | 1 | $ 5.08 | ||
| 4 | 23111-91J01 Clutch Rod
SKU: 23111-91J01 Weight: 0.100000 Brand: Price: $ 18.67 |
Clutch Rod | 1 | $ 18.67 | ||
| 5 | 23210-91J00 Clutch Rod Arm
SKU: 23210-91J00 Weight: 0.060000 Brand: Price: $ 7.33 |
Clutch Rod Arm | 1 | $ 7.33 | ||
| 6 | 23212-91J00 Clutch Notch Pin
SKU: 23212-91J00 Weight: 0.060000 Brand: Price: $ 2.62 |
Clutch Notch Pin | 1 | $ 2.62 | ||
| 7 | 23213-91J00 Clutch Notch Spring
SKU: 23213-91J00 Weight: 0.060000 Brand: Price: $ 2.62 |
Clutch Notch Spring | 1 | $ 2.62 | ||
| 8 | 23310-91J00 Clutch Rod Connector
SKU: 23310-91J00 Weight: 0.100000 Brand: Price: $ 5.17 |
Clutch Rod Connector | 1 | $ 5.17 | ||
| 9 | 23321-91J00 Clutch Rod Connector
SKU: 23321-91J00 Weight: 0.100000 Brand: Price: $ 5.52 |
Clutch Rod Connector | 1 | $ 5.52 | ||
| 10 | 09116-06227 Bolt (6x20)
SKU: 09116-06227 Weight: 0.060000 Brand: Price: $ 2.91 |
Bolt (6x20) | 2 | $ 2.91 | ||
| 11 | 09128-06014 Bolt (6x20) (NLA)
SKU: 09128-06014 Weight: 0.100000 Brand: Price: $ 0.68 |
Bolt (6x20) (NLA) | 1 | $ 0.68 | ||
| 12 | 09160-06145 Washer (6.2x19x3.0)
SKU: 09160-06145 Weight: 0.100000 Brand: Price: $ 1.78 |
Washer (6.2x19x3.0) | 1 | $ 1.78 | ||
| 13 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 14 | 09280-16005 O-Ring
SKU: 09280-16005 Weight: 0.060000 Brand: Price: $ 2.27 |
O-Ring | 2 | $ 2.27 | ||
| 15 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 1 | $ 0.76 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
