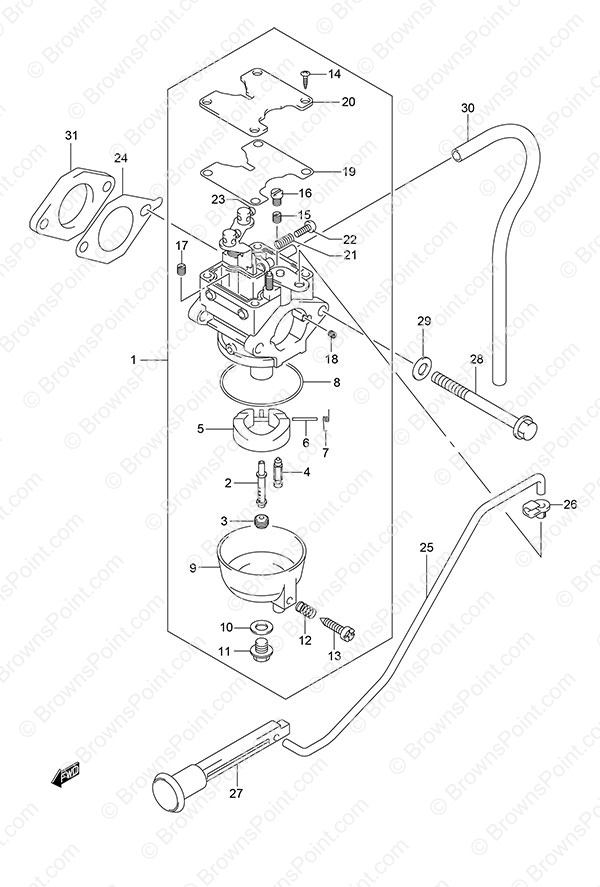

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 13200-91JQ1 Carburetor Assembly SKU: 13200-91JQ1 Weight: 1.000000 Brand: Price: $ 156.06 |
Carburetor Assembly | 1 | $ 156.06 | ||
2 | 13236-91J50 Main Nozzle (NLA) SKU: 13236-91J50 Weight: 0.060000 Brand: Price: $ 18.92 |
Main Nozzle (NLA) | 1 | $ 18.92 | ||
3-1 | 09491-50L01 Main Jet #50 SKU: 09491-50L01 Weight: 0.060000 Brand: Price: $ 10.87 |
Main Jet #50 | 1 | $ 10.87 | ||
3-2 | 09491-52L01 Main Jet #52 SKU: 09491-52L01 Weight: 0.125000 Brand: Price: $ 12.21 |
Main Jet #52 | 1 | $ 12.21 | ||
3-3 | 09491-54L01 Main Jet #54 SKU: 09491-54L01 Weight: 0.100000 Brand: Price: $ 12.21 |
Main Jet #54 | 1 | $ 12.21 | ||
4 | 13371-91J20 Needle Valve SKU: 13371-91J20 Weight: 0.250000 Brand: Price: $ 23.41 |
Needle Valve | 1 | $ 23.41 | ||
5 | 13250-97J00 Carburetor Float SKU: 13250-97J00 Weight: 0.125000 Brand: Price: $ 31.27 |
Carburetor Float | 1 | $ 31.27 | ||
6 | 13254-97J00 Float Pin SKU: 13254-97J00 Weight: 0.060000 Brand: Price: $ 3.57 |
Float Pin | 1 | $ 3.57 | ||
7 | 13268-97J30 Spring SKU: 13268-97J30 Weight: 0.060000 Brand: Price: $ 3.07 |
Spring | 1 | $ 3.07 | ||
8 | 13251-97J00 Float Chamber Gasket SKU: 13251-97J00 Weight: 0.060000 Brand: Price: $ 6.78 |
Float Chamber Gasket | 1 | $ 6.78 | ||
9 | 13245-97J00 Float Chamber SKU: 13245-97J00 Weight: 0.125000 Brand: Price: $ 16.86 |
Float Chamber | 1 | $ 16.86 | ||
10 | 13249-97J00 Gasket SKU: 13249-97J00 Weight: 0.060000 Brand: Price: $ 2.59 |
Gasket | 1 | $ 2.59 | ||
11 | 13247-97J00 Screw SKU: 13247-97J00 Weight: 0.100000 Brand: Price: $ 4.14 |
Screw | 1 | $ 4.14 | ||
12 | 13268-97J10 Spring SKU: 13268-97J10 Weight: 0.100000 Brand: Price: $ 4.39 |
Spring | 1 | $ 4.39 | ||
13 | 13616-97J00 Screw SKU: 13616-97J00 Weight: 0.100000 Brand: Price: $ 22.62 |
Screw | 1 | $ 22.62 | ||
14 | 13267-97J00 Screw (NLA) SKU: 13267-97J00 Weight: 0.100000 Brand: Price: $ 1.57 |
Screw (NLA) | 4 | $ 1.57 | ||
15-1 | 09492-32011 Pilot Jet #32 SKU: 09492-32011 Weight: 0.060000 Brand: Price: $ 15.87 |
Pilot Jet #32 | 1 | $ 15.87 | ||
15-2 | 09492-34004 Pilot Jet #34 SKU: 09492-34004 Weight: 0.060000 Brand: Price: $ 15.58 |
Pilot Jet #34 | 1 | $ 15.58 | ||
15-3 | 09492-36L01 Pilot Jet #36 SKU: 09492-36L01 Weight: 0.060000 Brand: Price: $ 13.26 |
Pilot Jet #36 | 1 | $ 13.26 | ||
16 | 13267-97J10 Screw SKU: 13267-97J10 Weight: 0.100000 Brand: Price: $ 4.20 |
Screw | 1 | $ 4.20 | ||
17 | 09493-22L01 Main Air Jet #110 SKU: 09493-22L01 Weight: 0.250000 Brand: Price: $ 10.20 |
Main Air Jet #110 | 1 | $ 10.20 | ||
18 | 09493-95L01 Slow Air Jet #95 SKU: 09493-95L01 Weight: 0.250000 Brand: Price: $ 0.00 |
Slow Air Jet #95 | 1 | $ 0.00 | ||
19 | 13249-97J10 Gasket SKU: 13249-97J10 Weight: 0.060000 Brand: Price: $ 11.50 |
Gasket | 1 | $ 11.50 | ||
20 | 13248-97J00 Plate (NLA) SKU: 13248-97J00 Weight: 0.100000 Brand: Price: $ 13.48 |
Plate (NLA) | 1 | $ 13.48 | ||
21 | 13268-97J20 Spring SKU: 13268-97J20 Weight: 0.100000 Brand: Price: $ 4.74 |
Spring | 1 | $ 4.74 | ||
22 | 13534-97J10 Screw SKU: 13534-97J10 Weight: 0.100000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
23 | 13267-97J20 Screw (NLA) SKU: 13267-97J20 Weight: 0.100000 Brand: Price: $ 2.64 |
Screw (NLA) | 2 | $ 2.64 | ||
24 | 13125-91J10 Carburetor Gasket SKU: 13125-91J10 Weight: 0.060000 Brand: Price: $ 2.63 |
Carburetor Gasket | 2 | $ 2.63 | ||
25 | 13413-91JL0 Choke Rod SKU: 13413-91JL0 Weight: 0.250000 Brand: Price: $ 7.28 |
Choke Rod | 1 | $ 7.28 | ||
26 | 13436-91J00 Choke Rod Connector SKU: 13436-91J00 Weight: 0.060000 Brand: Price: $ 3.08 |
Choke Rod Connector | 1 | $ 3.08 | ||
27 | 13631-91J00 Choke Knob SKU: 13631-91J00 Weight: 0.060000 Brand: Price: $ 6.21 |
Choke Knob | 1 | $ 6.21 | ||
28 | 01547-06857 BOLT 6X85 SKU: 01547-06857 Weight: 0.100000 Brand: Price: $ 2.84 |
BOLT 6X85 | 2 | $ 2.84 | ||
29 | 08322-01067 Washer (6.5x13x1.0) SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 | ||
30 | 44421-13ER0 Hose (5x10x600) SKU: 44421-13ER0 Weight: 0.200000 Brand: Price: $ 10.62 |
Hose (5x10x600) | 1 | $ 10.62 | L:600->230 | |
31 | 13124-91JL0 Carburetor Insulator SKU: 13124-91JL0 Weight: 0.250000 Brand: Price: $ 10.35 |
Carburetor Insulator | 1 | $ 10.35 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
