Suzuki DF 4 Parts Listings - 2014
S/N 00402F-410001 to 00402F-41XXXX

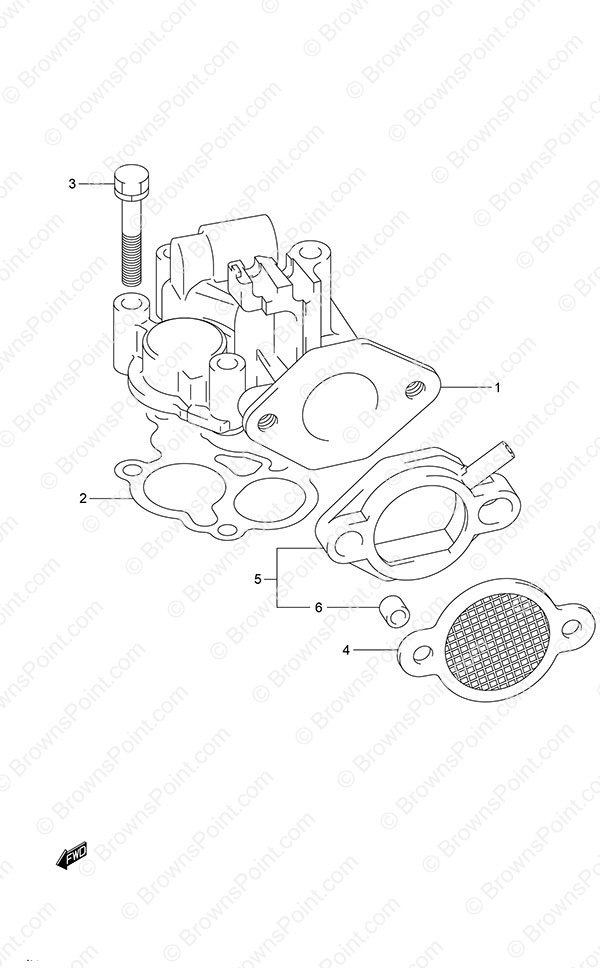

Fig. 5 - Intake Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13111-91J90 Intake Manifold
SKU: 13111-91J90 Weight: 2.000000 Brand: Price: $ 28.72 |
Intake Manifold | 1 | $ 28.72 | ||
| 2 | 13119-91J00 Inlet Manifold Gasket
SKU: 13119-91J00 Weight: 0.060000 Brand: Price: $ 2.81 |
Inlet Manifold Gasket | 1 | $ 2.81 | ||
| 3 | 01570-06357 BOLT
SKU: 01570-06357 Weight: 0.060000 Brand: Price: $ 2.38 |
BOLT | 4 | $ 2.38 | ||
| 4 | 13710-91J20 Flame Arrester
SKU: 13710-91J20 Weight: 0.100000 Brand: Price: $ 6.18 |
Flame Arrester | 1 | $ 6.18 | ||
| 5 | 13720-91J30 Flame Arrester Holder
SKU: 13720-91J30 Weight: 0.060000 Brand: Price: $ 36.42 |
Flame Arrester Holder | 1 | $ 36.42 | ||
| 6 | 09180-06310 Spacer (6.5x10x10)
SKU: 09180-06310 Weight: 0.060000 Brand: Price: $ 1.91 |
Spacer (6.5x10x10) | 2 | $ 1.91 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
