Suzuki DF 4 Parts Listings - 2014
S/N 00402F-410001 to 00402F-41XXXX

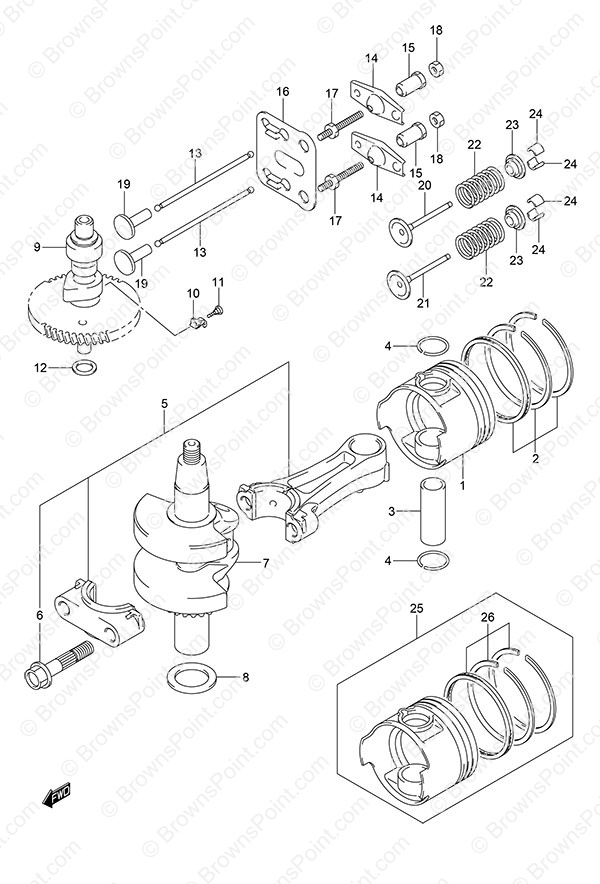

Fig. 4 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-91J01-0B0 Piston
SKU: 12111-91J01-0B0 Weight: 0.300000 Brand: Price: $ 54.52 |
Piston | 1 | $ 54.52 | ||
| 2 | 12140-91J10 Piston Ring Set
SKU: 12140-91J10 Weight: 0.060000 Brand: Price: $ 34.53 |
Piston Ring Set | 1 | $ 34.53 | ||
| 3 | 12151-90900 Piston Pin
SKU: 12151-90900 Weight: 0.100000 Brand: Price: $ 7.62 |
Piston Pin | 1 | $ 7.62 | ||
| 4 | 09381-18002 Piston Pin Circlip
SKU: 09381-18002 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 2 | $ 1.44 | ||
| 5 | 12160-91JL0-0A0 Connecting Rod Assembly
SKU: 12160-91JL0-0A0 Weight: 1.000000 Brand: Price: $ 97.65 |
Connecting Rod Assembly | 1 | $ 97.65 | ||
| 6 | 12163-91JL0 Connecting Rod Bolt (NLA)
SKU: 12163-91JL0 Weight: 0.250000 Brand: Price: $ 3.11 |
Connecting Rod Bolt (NLA) | 2 | $ 3.11 | ||
| 7 | 12200-91JL0 Crankshaft Assembly
SKU: 12200-91JL0 Weight: 4.000000 Brand: Price: $ 253.38 |
Crankshaft Assembly | 1 | $ 253.38 | ||
| 8 | 08211-25361 Washer
SKU: 08211-25361 Weight: 0.060000 Brand: Price: $ 3.40 |
Washer | 1 | $ 3.40 | ||
| 9 | 12711-91J20 Camshaft
SKU: 12711-91J20 Weight: 5.000000 Brand: Price: $ 159.90 |
Camshaft | 1 | $ 159.90 | ||
| 10 | 12951-91J01 Decompression Cam
SKU: 12951-91J01 Weight: 0.060000 Brand: Price: $ 3.00 |
Decompression Cam | 1 | $ 3.00 | ||
| 11 | 09106-02001 Bolt (2x9.8)
SKU: 09106-02001 Weight: 0.200000 Brand: Price: $ 2.77 |
Bolt (2x9.8) | 1 | $ 2.77 | ||
| 12 | 08211-17251 Thrust Washer
SKU: 08211-17251 Weight: 0.060000 Brand: Price: $ 2.45 |
Thrust Washer | 1 | $ 2.45 | ||
| 13 | 12894-91JL0 Push Rod
SKU: 12894-91JL0 Weight: 0.250000 Brand: Price: $ 6.30 |
Push Rod | 2 | $ 6.30 | ||
| 14 | 12961-90900 Rocker Arm (NLA)
SKU: 12961-90900 Weight: 0.100000 Brand: Price: $ 2.25 |
Rocker Arm (NLA) | 2 | $ 2.25 | ||
| 15 | 12962-91JL0 Pivot (NLA)
SKU: 12962-91JL0 Weight: 0.250000 Brand: Price: $ 4.93 |
Pivot (NLA) | 2 | $ 4.93 | ||
| 16 | 12966-91J00 Push Rod Guide
SKU: 12966-91J00 Weight: 0.100000 Brand: Price: $ 6.18 |
Push Rod Guide | 1 | $ 6.18 | ||
| 17 | 09108-06126 Stud Bolt (NLA)
SKU: 09108-06126 Weight: 0.100000 Brand: Price: $ 2.62 |
Stud Bolt (NLA) | 2 | $ 2.62 | ||
| 18 | 09140-06021 Nut
SKU: 09140-06021 Weight: 0.125000 Brand: Price: $ 1.23 |
Nut | 2 | $ 1.23 | ||
| 19 | 12891-87C00 Tappet
SKU: 12891-87C00 Weight: 0.200000 Brand: Price: $ 12.06 |
Tappet | 2 | $ 12.06 | ||
| 20 | 12911-91J02 Intake Valve
SKU: 12911-91J02 Weight: 0.125000 Brand: Price: $ 11.44 |
Intake Valve | 1 | $ 11.44 | ||
| 21 | 12915-91J02 Exhaust Valve
SKU: 12915-91J02 Weight: 0.125000 Brand: Price: $ 18.43 |
Exhaust Valve | 1 | $ 18.43 | ||
| 22 | 12921-91J00 Valve Spring
SKU: 12921-91J00 Weight: 0.100000 Brand: Price: $ 6.41 |
Valve Spring | 2 | $ 6.41 | ||
| 23 | 12931-78G00 Valve Spring Retainer
SKU: 12931-78G00 Weight: 0.060000 Brand: Price: $ 4.25 |
Valve Spring Retainer | 2 | $ 4.25 | ||
| 24 | 12932-24400 Valve Cotter
SKU: 12932-24400 Weight: 0.060000 Brand: Price: $ 2.04 |
Valve Cotter | 4 | $ 2.04 | ||
| 25 | 12100-91J10-050 Piston & Ring Set (OS:0.50) (NLA)
SKU: 12100-91J10-050 Weight: 1.000000 Brand: Price: $ 60.13 |
Piston & Ring Set (OS:0.50) (NLA) | 1 | $ 60.13 | Optional | |
| 26 | 12140-91J10-050 Piston Ring Set (OS:0.50) (NLA)
SKU: 12140-91J10-050 Weight: 0.100000 Brand: Price: $ 22.83 |
Piston Ring Set (OS:0.50) (NLA) | 1 | $ 22.83 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
