Suzuki DF 4 Parts Listings - 2014
S/N 00402F-410001 to 00402F-41XXXX

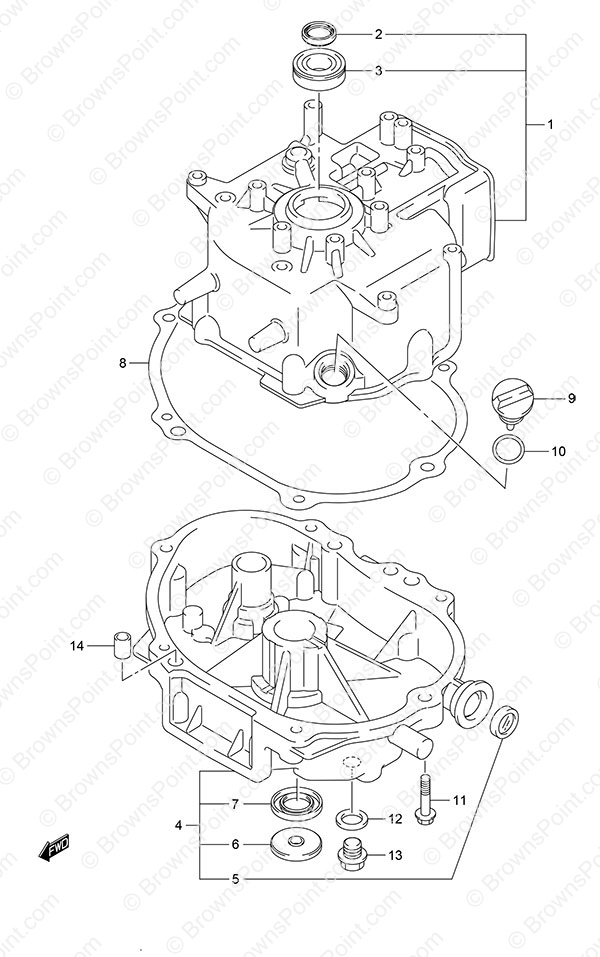

Fig. 3 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11200-91J20 Cylinder Block Assembly
SKU: 11200-91J20 Weight: 5.010000 Brand: Price: $ 533.58 |
Cylinder Block Assembly | 1 | $ 533.58 | ||
| 2 | 09283-25098 Oil Seal (25x35x5)
SKU: 09283-25098 Weight: 0.150000 Brand: Price: $ 7.72 |
Oil Seal (25x35x5) | 1 | $ 7.72 | ||
| 3 | 09262-25003 Bearing (25x52x15)
SKU: 09262-25003 Weight: 0.300000 Brand: Price: $ 25.27 |
Bearing (25x52x15) | 1 | $ 25.27 | ||
| 4 | 11300-91J20 Crankcase Assembly
SKU: 11300-91J20 Weight: 2.600000 Brand: Price: $ 347.18 |
Crankcase Assembly | 1 | $ 347.18 | ||
| 5 | 11971-91J01 Oil Level Filler Lens
SKU: 11971-91J01 Weight: 0.060000 Brand: Price: $ 11.51 |
Oil Level Filler Lens | 1 | $ 11.51 | ||
| 6 | 09283-10009 Oil Seal (10x45x5)
SKU: 09283-10009 Weight: 0.060000 Brand: Price: $ 6.41 |
Oil Seal (10x45x5) | 1 | $ 6.41 | ||
| 7 | 09283-25076 Oil Seal (25x45x5)
SKU: 09283-25076 Weight: 0.060000 Brand: Price: $ 10.37 |
Oil Seal (25x45x5) | 1 | $ 10.37 | Lower | |
| 8 | 11351-91J00 Crankcase Gasket
SKU: 11351-91J00 Weight: 0.100000 Brand: Price: $ 12.07 |
Crankcase Gasket | 1 | $ 12.07 | ||
| 9 | 11381-91J10 Oil Level Gauge (Yellow)
SKU: 11381-91J10 Weight: 0.060000 Brand: Price: $ 9.45 |
Oil Level Gauge (Yellow) | 1 | $ 9.45 | ||
| 10 | 09280-15007 O-Ring
SKU: 09280-15007 Weight: 0.060000 Brand: Price: $ 1.73 |
O-Ring | 1 | $ 1.73 | ||
| 11 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 6 | $ 2.74 | ||
| 12 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 1 | $ 1.60 | ||
| 13 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 1 | $ 6.59 | ||
| 14 | 04211-09149 PIN 9X14
SKU: 04211-09149 Weight: 0.100000 Brand: Price: $ 1.66 |
PIN 9X14 | 2 | $ 1.66 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
