Suzuki DF 250S Parts Listings - 2013
S/N 25004F-310001 to 25004F-31XXXX

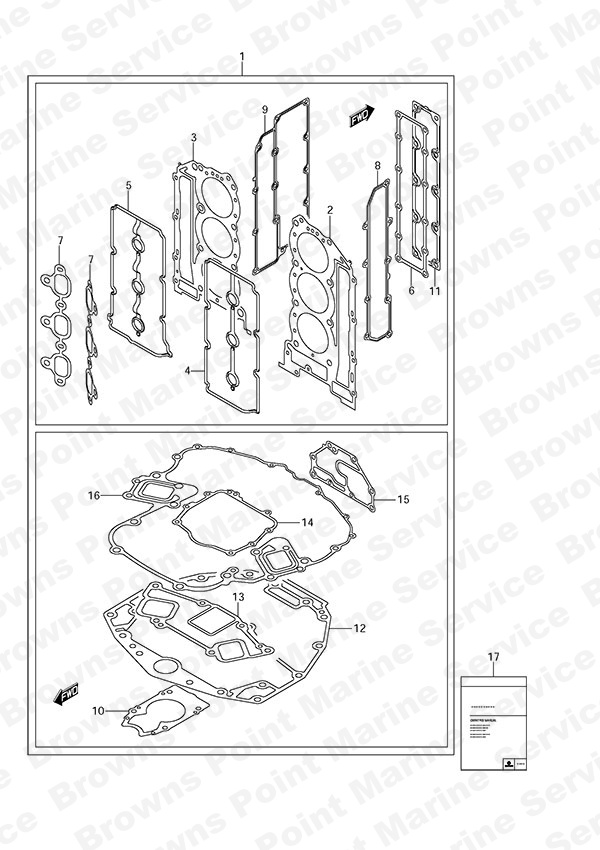

Fig. 211 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11410-98830 Engine Gasket Set
SKU: 11410-98830 Weight: 5.000000 Brand: Price: $ 385.69 |
Engine Gasket Set | 1 | $ 385.69 | ||
| 2 | 11141-98J10 Starboard Cylinder Head Gasket
SKU: 11141-98J10 Weight: 0.500000 Brand: Price: $ 96.84 |
Starboard Cylinder Head Gasket | 1 | $ 96.84 | ||
| 3 | 11142-98J10 Port Cylinder Head Gasket
SKU: 11142-98J10 Weight: 0.500000 Brand: Price: $ 107.95 |
Port Cylinder Head Gasket | 1 | $ 107.95 | ||
| 4 | 11179-93J00 Cylinder Head Cover Gasket - Starboard
SKU: 11179-93J00 Weight: 0.125000 Brand: Price: $ 22.76 |
Cylinder Head Cover Gasket - Starboard | 1 | $ 22.76 | ||
| 5 | 11189-93J00 Cylinder Head Cover Gasket - Port
SKU: 11189-93J00 Weight: 0.125000 Brand: Price: $ 22.00 |
Cylinder Head Cover Gasket - Port | 1 | $ 22.00 | ||
| 6 | 11332-93J00 Crankcase Water Jacket Cover Gasket
SKU: 11332-93J00 Weight: 0.250000 Brand: Price: $ 9.00 |
Crankcase Water Jacket Cover Gasket | 1 | $ 9.00 | ||
| 7 | 13119-98J00 Intake Manifold Gasket
SKU: 13119-98J00 Weight: 0.100000 Brand: Price: $ 9.78 |
Intake Manifold Gasket | 2 | $ 9.78 | Not for DF 250S Order Ref# 18 for DF 250S | |
| 8 | 14151-93J00 Starboard Exhaust Cover Gasket
SKU: 14151-93J00 Weight: 0.200000 Brand: Price: $ 9.24 |
Starboard Exhaust Cover Gasket | 1 | $ 9.24 | ||
| 9 | 14152-93J00 Port Exhaust Cover Gasket
SKU: 14152-93J00 Weight: 0.150000 Brand: Price: $ 20.53 |
Port Exhaust Cover Gasket | 1 | $ 20.53 | ||
| 10 | 17472-98J00 Water Pump Plate Gasket
SKU: 17472-98J00 Weight: 0.060000 Brand: Price: $ 8.94 |
Water Pump Plate Gasket | 1 | $ 8.94 | ||
| 11 | 11272-93J00 Cylinder Block Plate Gasket
SKU: 11272-93J00 Weight: 0.060000 Brand: Price: $ 7.36 |
Cylinder Block Plate Gasket | 1 | $ 7.36 | ||
| 12 | 11489-93J00 Oil Pan Gasket
SKU: 11489-93J00 Weight: 2.000000 Brand: Price: $ 59.33 |
Oil Pan Gasket | 1 | $ 59.33 | ||
| 13 | 14212-93J00 Exhaust Tube Gasket
SKU: 14212-93J00 Weight: 0.060000 Brand: Price: $ 10.12 |
Exhaust Tube Gasket | 1 | $ 10.12 | ||
| 14 | 51123-93J01 Mount Oil Seal Cover Gasket
SKU: 51123-93J01 Weight: 0.080000 Brand: Price: $ 9.43 |
Mount Oil Seal Cover Gasket | 1 | $ 9.43 | ||
| 15 | 51142-93J00 Engine Holder Cover Gasket
SKU: 51142-93J00 Weight: 0.100000 Brand: Price: $ 8.02 |
Engine Holder Cover Gasket | 1 | $ 8.02 | ||
| 16 | 51211-93J00 Engine Holder Gasket
SKU: 51211-93J00 Weight: 2.000000 Brand: Price: $ 87.40 |
Engine Holder Gasket | 1 | $ 87.40 | ||
| 17 | 99011-93J50-03B O/M DF 250S - 2013
SKU: 99011-93J50-03B Weight: 0.250000 Brand: Price: $ 20.00 |
O/M DF 250S - 2013 | 1 | $ 20.00 | ||
| 18 | 13119-93J00 Intake Manifold Gasket
SKU: 13119-93J00 Weight: 0.200000 Brand: Price: $ 15.01 |
Intake Manifold Gasket | 2 | $ 15.01 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
