Suzuki DF 250 Parts Listings - 2013
S/N 25003F-310001 to 25003F-31XXXX
S/N 25003Z-310001 to 25003Z-31XXXX

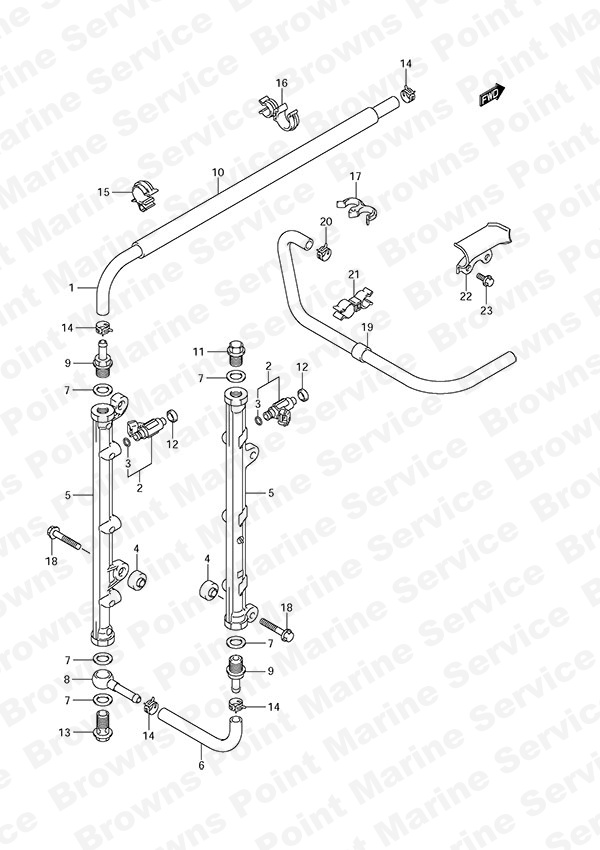

Fig. 51 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15681-93J02 HOSE,FUEL(3 WAY
SKU: 15681-93J02 Weight: 0.000000 Brand: Price: $ 35.21 |
HOSE,FUEL(3 WAY | 1 | $ 35.21 | ||
| 2 | 15710-93J00 Fuel Injector
SKU: 15710-93J00 Weight: 0.250000 Brand: Price: $ 228.00 |
Fuel Injector | 6 | $ 228.00 | ||
| 3 | 15717-16G00 O-Ring
SKU: 15717-16G00 Weight: 0.060000 Brand: Price: $ 10.51 |
O-Ring | 6 | $ 10.51 | ||
| 4 | 15735-58B00 Delivery Pipe Insulator
SKU: 15735-58B00 Weight: 0.250000 Brand: Price: $ 5.35 |
Delivery Pipe Insulator | 4 | $ 5.35 | ||
| 5 | 15751-93J00 Delivery Pipe
SKU: 15751-93J00 Weight: 1.000000 Brand: Price: $ 136.66 |
Delivery Pipe | 2 | $ 136.66 | ||
| 6 | 15756-93J02 Fuel Hose (Delvery Pipe to Delivery Pipe)
SKU: 15756-93J02 Weight: 0.250000 Brand: Price: $ 18.01 |
Fuel Hose (Delvery Pipe to Delivery Pipe) | 1 | $ 18.01 | ||
| 7 | 15762-93J00 Delivery Pipe Gasket
SKU: 15762-93J00 Weight: 0.060000 Brand: Price: $ 1.90 |
Delivery Pipe Gasket | 5 | $ 1.90 | ||
| 8 | 15830-77EA0 Delivery Pipe Union
SKU: 15830-77EA0 Weight: 0.100000 Brand: Price: $ 15.22 |
Delivery Pipe Union | 1 | $ 15.22 | ||
| 9 | 15831-93J00 Delivery Pipe Union
SKU: 15831-93J00 Weight: 0.100000 Brand: Price: $ 13.15 |
Delivery Pipe Union | 2 | $ 13.15 | ||
| 10 | 18498-93J01 Fuel Hose Protector (L:340)
SKU: 18498-93J01 Weight: 0.100000 Brand: Price: $ 7.78 |
Fuel Hose Protector (L:340) | 1 | $ 7.78 | ||
| 11 | 09247-14041 Delivery Pipe Plug
SKU: 09247-14041 Weight: 0.100000 Brand: Price: $ 4.27 |
Delivery Pipe Plug | 1 | $ 4.27 | ||
| 12 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 6 | $ 13.65 | ||
| 13 | 09360-14009 Delivery Pipe Union Bolt
SKU: 09360-14009 Weight: 0.100000 Brand: Price: $ 12.28 |
Delivery Pipe Union Bolt | 1 | $ 12.28 | ||
| 14 | 09401-11425 Clip
SKU: 09401-11425 Weight: 0.060000 Brand: Price: $ 3.46 |
Clip | 4 | $ 3.46 | ||
| 15 | 09403-16307 CLAMP
SKU: 09403-16307 Weight: 0.000000 Brand: Price: $ 2.20 |
CLAMP | 1 | $ 2.20 | ||
| 16 | 09408-00105 Clamp
SKU: 09408-00105 Weight: 0.100000 Brand: Price: $ 4.27 |
Clamp | 1 | $ 4.27 | ||
| 17 | 09408-00155 Clamp (NLA)
SKU: 09408-00155 Weight: 0.060000 Brand: Price: $ 2.80 |
Clamp (NLA) | 1 | $ 2.80 | ||
| 18 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 4 | $ 3.48 | ||
| 19 | 15680-93J21 Fuel Hose (Inlet to Filter)
SKU: 15680-93J21 Weight: 1.000000 Brand: Price: $ 146.71 |
Fuel Hose (Inlet to Filter) | 1 | $ 146.71 | ||
| 20 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 1 | $ 1.58 | ||
| 21 | 09408-00135 Clamp (NLA)
SKU: 09408-00135 Weight: 0.100000 Brand: Price: $ 2.90 |
Clamp (NLA) | 2 | $ 2.90 | ||
| 22 | 15684-98J00 Fuel Hose Guide
SKU: 15684-98J00 Weight: 0.100000 Brand: Price: $ 10.86 |
Fuel Hose Guide | 1 | $ 10.86 | ||
| 23 | 01550-06107 PLUG
SKU: 01550-06107 Weight: 0.125000 Brand: Price: $ 2.43 |
PLUG | 2 | $ 2.43 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
