Suzuki DF 250 Parts Listings - 2013
S/N 25003F-310001 to 25003F-31XXXX
S/N 25003Z-310001 to 25003Z-31XXXX

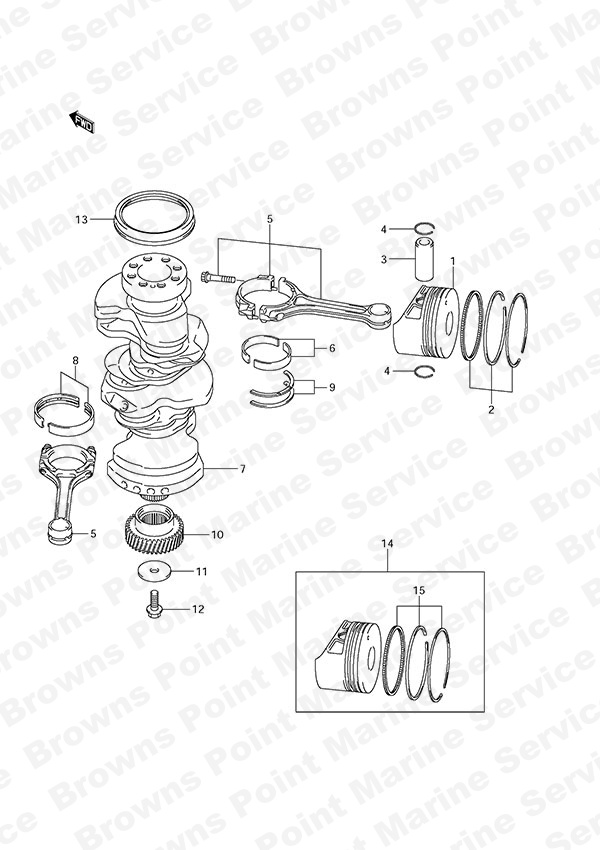

Fig. 20 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-93J02-0B0 Piston
SKU: 12111-93J02-0B0 Weight: 0.950000 Brand: Price: $ 83.28 |
Piston | 6 | $ 83.28 | ||
| 2 | 12140-93J00 Piston Ring Set
SKU: 12140-93J00 Weight: 0.100000 Brand: Price: $ 64.90 |
Piston Ring Set | 6 | $ 64.90 | ||
| 3 | 12151-93J10 Piston Pin
SKU: 12151-93J10 Weight: 0.300000 Brand: Price: $ 10.46 |
Piston Pin | 6 | $ 10.46 | ||
| 4 | 09381-22010 Piston Pin Circlip
SKU: 09381-22010 Weight: 0.060000 Brand: Price: $ 2.28 |
Piston Pin Circlip | 12 | $ 2.28 | ||
| 5 | 12160-93J10 Connecting Rod Assembly
SKU: 12160-93J10 Weight: 1.500000 Brand: Price: $ 145.52 |
Connecting Rod Assembly | 6 | $ 145.52 | ||
| 6-1 | 12100-98810-0A0 Connrod Bearing Set (Green)
SKU: 12100-98810-0A0 Weight: 0.120000 Brand: Price: $ 28.43 |
Connrod Bearing Set (Green) | 6 | $ 28.43 | ||
| 6-2 | 12100-98810-025 Connrod Bearing Set (US:0.25)
SKU: 12100-98810-025 Weight: 0.120000 Brand: Price: $ 29.94 |
Connrod Bearing Set (US:0.25) | 6 | $ 29.94 | Optional | |
| 7 | 12220-93J01 Crankshaft Assembly
SKU: 12220-93J01 Weight: 50.000000 Brand: Price: $ 2,250.15 |
Crankshaft Assembly | 1 | $ 2,250.15 | ||
| 8-1 | 12340-86FA2-0B0 Crankshaft Bearing Set (Black)
SKU: 12340-86FA2-0B0 Weight: 0.200000 Brand: Price: $ 36.42 |
Crankshaft Bearing Set (Black) | 4 | $ 36.42 | ||
| 8-2 | 12340-86FA2-0C0 Crankshaft Bearing Set (Non)
SKU: 12340-86FA2-0C0 Weight: 0.180000 Brand: Price: $ 36.42 |
Crankshaft Bearing Set (Non) | 4 | $ 36.42 | ||
| 8-3 | 12340-86FA2-0D0 Crankshaft Bearing Set (Yellow)
SKU: 12340-86FA2-0D0 Weight: 0.180000 Brand: Price: $ 35.90 |
Crankshaft Bearing Set (Yellow) | 4 | $ 35.90 | ||
| 8-4 | 12340-86FA2-0E0 Crankshaft Bearing Set (Blue)
SKU: 12340-86FA2-0E0 Weight: 0.200000 Brand: Price: $ 37.10 |
Crankshaft Bearing Set (Blue) | 4 | $ 37.10 | ||
| 8-5 | 12340-86FA2-0F0 Crankshaft Bearing Set (Pink)
SKU: 12340-86FA2-0F0 Weight: 0.200000 Brand: Price: $ 37.80 |
Crankshaft Bearing Set (Pink) | 4 | $ 37.80 | ||
| 8-9 | 12300-86812-0EA Crankshaft Bearing Set (Red/Blue)
SKU: 12300-86812-0EA Weight: 0.125000 Brand: Price: $ 37.80 |
Crankshaft Bearing Set (Red/Blue) | 4 | $ 37.80 | Optional US:0.25 | |
| 8-6 | 12300-86812-0BA Crankshaft Bearing Set (Red/Black)
SKU: 12300-86812-0BA Weight: 0.125000 Brand: Price: $ 37.80 |
Crankshaft Bearing Set (Red/Black) | 4 | $ 37.80 | Optional US:0.25 | |
| 8-7 | 12300-86812-0CA Crankshaft Bearing Set (Red)
SKU: 12300-86812-0CA Weight: 0.125000 Brand: Price: $ 37.80 |
Crankshaft Bearing Set (Red) | 4 | $ 37.80 | Optional US:0.25 | |
| 8-8 | 12300-86812-0DA Crankshaft Bearing Set (Red/Yellow)
SKU: 12300-86812-0DA Weight: 0.125000 Brand: Price: $ 37.80 |
Crankshaft Bearing Set (Red/Yellow) | 4 | $ 37.80 | Optional US:0.25 | |
| 8-10 | 12300-86812-0FA Crankshaft Bearing Set (Red/Pink)
SKU: 12300-86812-0FA Weight: 0.125000 Brand: Price: $ 37.80 |
Crankshaft Bearing Set (Red/Pink) | 4 | $ 37.80 | Optional US:0.25 | |
| 9-1 | 12300-85830 Crank Thrust Bearing Set
SKU: 12300-85830 Weight: 0.080000 Brand: Price: $ 24.43 |
Crank Thrust Bearing Set | 1 | $ 24.43 | ||
| 9-2 | 12300-85830-012 Crank Thrust Bearing Set (OS:0.12)
SKU: 12300-85830-012 Weight: 0.250000 Brand: Price: $ 26.22 |
Crank Thrust Bearing Set (OS:0.12) | 1 | $ 26.22 | Optional OS:0.25 | |
| 10 | 12242-93J01 Drive Gear
SKU: 12242-93J01 Weight: 2.850000 Brand: Price: $ 186.34 |
Drive Gear | 1 | $ 186.34 | ||
| 11 | 09160-10104 Drive Gear Washer (NLA)
SKU: 09160-10104 Weight: 0.100000 Brand: Price: $ 2.27 |
Drive Gear Washer (NLA) | 1 | $ 2.27 | ||
| 12 | 01550-1025A BOLT
SKU: 01550-1025A Weight: 0.060000 Brand: Price: $ 3.11 |
BOLT | 1 | $ 3.11 | ||
| 13 | 09283-91001 Crankshaft Oil Seal
SKU: 09283-91001 Weight: 0.120000 Brand: Price: $ 42.16 |
Crankshaft Oil Seal | 1 | $ 42.16 | ||
| 14 | 12100-93J00-050 Piston & Ring Set (OS:0.50)
SKU: 12100-93J00-050 Weight: 1.000000 Brand: Price: $ 166.14 |
Piston & Ring Set (OS:0.50) | 6 | $ 166.14 | Optional | |
| 15 | 12140-93J00-050 Piston Ring Set (OS:0.50)
SKU: 12140-93J00-050 Weight: 0.100000 Brand: Price: $ 67.38 |
Piston Ring Set (OS:0.50) | 6 | $ 67.38 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
