Suzuki DF 200 Parts Listings - 2013
S/N 20002F-310001 to 20002F-31XXXX
S/N 20002Z-310001 to 20002Z-31XXXX

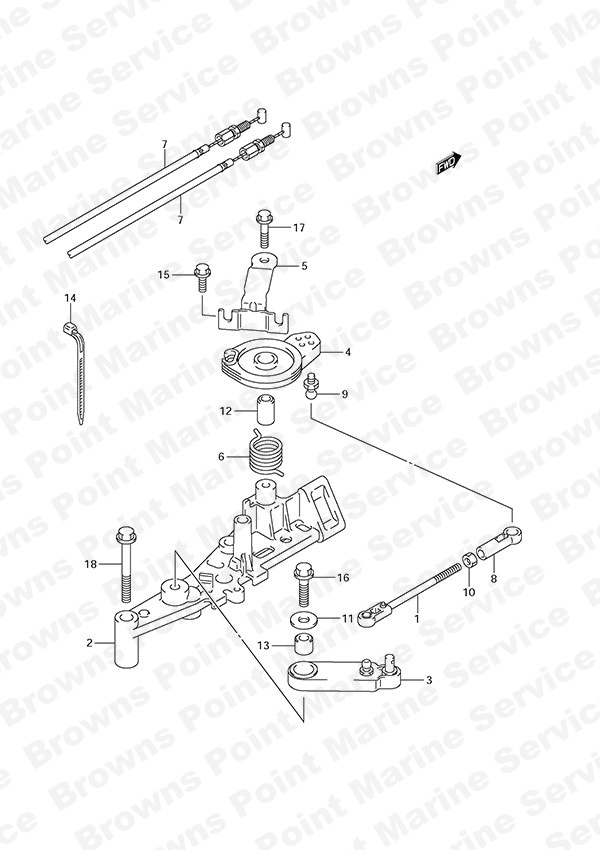

Fig. 69 - Throttle Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13510-93J00 Throttle Rod No 1
SKU: 13510-93J00 Weight: 0.060000 Brand: Price: $ 16.50 |
Throttle Rod No 1 | 1 | $ 16.50 | ||
| 2 | 19115-93J02 Throttle Lever Holder
SKU: 19115-93J02 Weight: 0.200000 Brand: Price: $ 72.67 |
Throttle Lever Holder | 1 | $ 72.67 | ||
| 3 | 19121-93J02 Throttle Control Lever No. 1
SKU: 19121-93J02 Weight: 0.250000 Brand: Price: $ 32.46 |
Throttle Control Lever No. 1 | 1 | $ 32.46 | ||
| 4 | 19148-93J00 Throttle Drum
SKU: 19148-93J00 Weight: 0.250000 Brand: Price: $ 14.12 |
Throttle Drum | 1 | $ 14.12 | ||
| 5 | 19184-93J00 Throttle Cable Bracket (NLA)
SKU: 19184-93J00 Weight: 0.100000 Brand: Price: $ 4.70 |
Throttle Cable Bracket (NLA) | 1 | $ 4.70 | ||
| 6 | 19185-93J00 Throttle Lever Spring
SKU: 19185-93J00 Weight: 0.060000 Brand: Price: $ 5.01 |
Throttle Lever Spring | 1 | $ 5.01 | ||
| 7 | 63610-93J00 Throttle Cable Assembly
SKU: 63610-93J00 Weight: 0.500000 Brand: Price: $ 40.96 |
Throttle Cable Assembly | 2 | $ 40.96 | ||
| 8 | 67463-95200 Throttle Rod Connector
SKU: 67463-95200 Weight: 0.060000 Brand: Price: $ 3.47 |
Throttle Rod Connector | 1 | $ 3.47 | ||
| 9 | 09119-06047 Pivot Ball
SKU: 09119-06047 Weight: 0.060000 Brand: Price: $ 6.99 |
Pivot Ball | 1 | $ 6.99 | ||
| 10 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 11 | 09160-06066 Washer (6.5x20x1.6)
SKU: 09160-06066 Weight: 0.250000 Brand: Price: $ 1.91 |
Washer (6.5x20x1.6) | 1 | $ 1.91 | ||
| 12 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 13 | 09180-06230 Spacer (6.2x12.6x12.5)
SKU: 09180-06230 Weight: 0.060000 Brand: Price: $ 6.41 |
Spacer (6.2x12.6x12.5) | 1 | $ 6.41 | ||
| 14 | 09407-11401 Clamp (L:95)
SKU: 09407-11401 Weight: 0.060000 Brand: Price: $ 2.28 |
Clamp (L:95) | 1 | $ 2.28 | ||
| 15 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 16 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 17 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 | ||
| 18 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 2 | $ 3.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
