Suzuki DF 200 Parts Listings - 2013
S/N 20002F-310001 to 20002F-31XXXX
S/N 20002Z-310001 to 20002Z-31XXXX

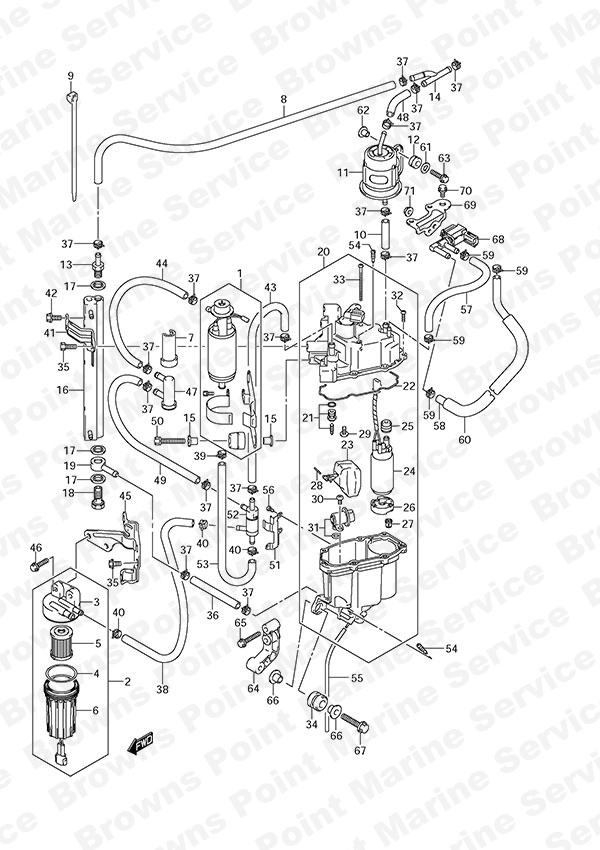

Fig. 40 - Fuel Pump/Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-94900 Fuel Pump Assembly
SKU: 15100-94900 Weight: 2.000000 Brand: Price: $ 565.52 |
Fuel Pump Assembly | 1 | $ 565.52 | Low Pressure | |
| 2 | 15410-93J11 Fuel Filter Assembly
SKU: 15410-93J11 Weight: 0.500000 Brand: Price: $ 181.30 |
Fuel Filter Assembly | 1 | $ 181.30 | Low Pressure | |
| 3 | 15411-93J10 Fuel Filter Cap
SKU: 15411-93J10 Weight: 0.250000 Brand: Price: $ 61.29 |
Fuel Filter Cap | 1 | $ 61.29 | ||
| 4 | 15415-93J10 Fuel Filter O-Ring
SKU: 15415-93J10 Weight: 0.060000 Brand: Price: $ 10.90 |
Fuel Filter O-Ring | 1 | $ 10.90 | ||
| 5 | 15412-93J10 Fuel Filter Element
SKU: 15412-93J10 Weight: 0.125000 Brand: Price: $ 24.80 |
Fuel Filter Element | 1 | $ 24.80 | ||
| 6 | 15413-93J10 Fuel Filter Cup
SKU: 15413-93J10 Weight: 0.140000 Brand: Price: $ 82.13 |
Fuel Filter Cup | 1 | $ 82.13 | ||
| 7 | 15644-93J00 Fuel Filter Cover
SKU: 15644-93J00 Weight: 0.060000 Brand: Price: $ 9.33 |
Fuel Filter Cover | 3 | $ 9.33 | ||
| 8 | 15633-93J20 Fuel Hose (H)
SKU: 15633-93J20 Weight: 1.000000 Brand: Price: $ 77.26 |
Fuel Hose (H) | 1 | $ 77.26 | ||
| 9 | 15646-93J00 Fuel Filter Clamp
SKU: 15646-93J00 Weight: 0.060000 Brand: Price: $ 4.34 |
Fuel Filter Clamp | 1 | $ 4.34 | ||
| 10 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | L:600->65 | |
| 11 | 15440-93J00 H/P Fuel Filter
SKU: 15440-93J00 Weight: 0.840000 Brand: Price: $ 80.72 |
H/P Fuel Filter | 1 | $ 80.72 | ||
| 12 | 09320-08501 Cushion
SKU: 09320-08501 Weight: 0.060000 Brand: Price: $ 3.28 |
Cushion | 2 | $ 3.28 | ||
| 13 | 15773-90J10 UNION,FUEL HOSE
SKU: 15773-90J10 Weight: 0.000000 Brand: Price: $ 18.53 |
UNION,FUEL HOSE | 1 | $ 18.53 | ||
| 14 | 15830-93J00 3 Way Union (NLA)
SKU: 15830-93J00 Weight: 0.060000 Brand: Price: $ 17.23 |
3 Way Union (NLA) | 1 | $ 17.23 | ||
| 15 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 4 | $ 2.52 | ||
| 16 | 15770-93J00 Fuel Cooler
SKU: 15770-93J00 Weight: 1.000000 Brand: Price: $ 94.67 |
Fuel Cooler | 1 | $ 94.67 | ||
| 17 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 3 | $ 3.46 | ||
| 18 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 1 | $ 9.81 | ||
| 19 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 16.69 |
Union | 1 | $ 16.69 | ||
| 20 | 15600-93J02 Fuel Vapor Separator Assembly
SKU: 15600-93J02 Weight: 2.000000 Brand: Price: $ 723.55 |
Fuel Vapor Separator Assembly | 1 | $ 723.55 | ||
| 21 | 13370-93J10 Needle Valve Assembly
SKU: 13370-93J10 Weight: 0.060000 Brand: Price: $ 46.03 |
Needle Valve Assembly | 1 | $ 46.03 | ||
| 22 | 15626-93J00 Separator Gasket
SKU: 15626-93J00 Weight: 0.060000 Brand: Price: $ 13.02 |
Separator Gasket | 1 | $ 13.02 | ||
| 23 | 15650-93J00 Float Assembly
SKU: 15650-93J00 Weight: 0.100000 Brand: Price: $ 69.39 |
Float Assembly | 1 | $ 69.39 | ||
| 24 | 15200-93J01 Fuel Pump Assembly
SKU: 15200-93J01 Weight: 0.740000 Brand: Price: $ 438.00 |
Fuel Pump Assembly | 1 | $ 438.00 | ||
| 25 | 15647-93J00 Fuel Pump Bushing
SKU: 15647-93J00 Weight: 0.060000 Brand: Price: $ 10.12 |
Fuel Pump Bushing | 1 | $ 10.12 | ||
| 26 | 15641-90J00 Fuel Pump Spacer
SKU: 15641-90J00 Weight: 0.060000 Brand: Price: $ 26.17 |
Fuel Pump Spacer | 1 | $ 26.17 | ||
| 27 | 15642-90J00 Fuel Pump Filter
SKU: 15642-90J00 Weight: 0.060000 Brand: Price: $ 11.18 |
Fuel Pump Filter | 1 | $ 11.18 | ||
| 28 | 15654-99E00 Float Pin
SKU: 15654-99E00 Weight: 0.060000 Brand: Price: $ 2.50 |
Float Pin | 1 | $ 2.50 | ||
| 29 | 02142-0408B SCREW
SKU: 02142-0408B Weight: 0.060000 Brand: Price: $ 1.72 |
SCREW | 1 | $ 1.72 | ||
| 30 | 02112-05107 5 X 10 CROSS SC
SKU: 02112-05107 Weight: 0.060000 Brand: Price: $ 1.44 |
5 X 10 CROSS SC | 1 | $ 1.44 | ||
| 31 | 15760-93J01 Fuel Pressure Regulator
SKU: 15760-93J01 Weight: 0.160000 Brand: Price: $ 132.70 |
Fuel Pressure Regulator | 1 | $ 132.70 | ||
| 32 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 6 | $ 2.42 | ||
| 33 | 15627-93J00 Screw (NLA)
SKU: 15627-93J00 Weight: 0.060000 Brand: Price: $ 4.29 |
Screw (NLA) | 1 | $ 4.29 | ||
| 34 | 09320-12072 Cushion
SKU: 09320-12072 Weight: 0.060000 Brand: Price: $ 2.32 |
Cushion | 3 | $ 2.32 | ||
| 35 | 15675-93J00 Cooler Bracket Bolt
SKU: 15675-93J00 Weight: 0.100000 Brand: Price: $ 2.05 |
Cooler Bracket Bolt | 3 | $ 2.05 | ||
| 36 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | L:600->50 | |
| 37 | 09401-11414 Clip
SKU: 09401-11414 Weight: 0.060000 Brand: Price: $ 2.81 |
Clip | 14 | $ 2.81 | ||
| 38 | 15636-98J20 Fuel Hose (L)
SKU: 15636-98J20 Weight: 1.000000 Brand: Price: $ 50.25 |
Fuel Hose (L) | 1 | $ 50.25 | ||
| 39 | 15686-93J00 Fuel Hose Clip
SKU: 15686-93J00 Weight: 0.060000 Brand: Price: $ 4.34 |
Fuel Hose Clip | 1 | $ 4.34 | ||
| 40 | 15685-93J00 Fuel Hose Clip
SKU: 15685-93J00 Weight: 0.060000 Brand: Price: $ 5.43 |
Fuel Hose Clip | 3 | $ 5.43 | ||
| 41 | 15672-93J00 Fuel Cooler Bracket (NLA)
SKU: 15672-93J00 Weight: 0.100000 Brand: Price: $ 12.44 |
Fuel Cooler Bracket (NLA) | 1 | $ 12.44 | ||
| 42 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 1.97 |
BOLT | 4 | $ 1.97 | ||
| 43 | 15635-93J20 Fuel Hose (H)
SKU: 15635-93J20 Weight: 1.000000 Brand: Price: $ 85.03 |
Fuel Hose (H) | 1 | $ 85.03 | ||
| 44 | 15632-93J20 Fuel Hose (H)
SKU: 15632-93J20 Weight: 0.060000 Brand: Price: $ 76.21 |
Fuel Hose (H) | 1 | $ 76.21 | ||
| 45 | 15673-98J00 Fuel Filter Bracket
SKU: 15673-98J00 Weight: 0.250000 Brand: Price: $ 39.32 |
Fuel Filter Bracket | 1 | $ 39.32 | ||
| 46 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 47 | 15643-93J00 Fuel Filter (L)
SKU: 15643-93J00 Weight: 0.060000 Brand: Price: $ 33.84 |
Fuel Filter (L) | 1 | $ 33.84 | ||
| 48 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | L:600->65 | |
| 49 | 15634-93J20 Fuel Hose (H)
SKU: 15634-93J20 Weight: 0.060000 Brand: Price: $ 80.31 |
Fuel Hose (H) | 1 | $ 80.31 | ||
| 50 | 01570-06357 BOLT
SKU: 01570-06357 Weight: 0.060000 Brand: Price: $ 2.38 |
BOLT | 2 | $ 2.38 | ||
| 51 | 15674-93J00 Check Valve Bracket
SKU: 15674-93J00 Weight: 0.100000 Brand: Price: $ 15.45 |
Check Valve Bracket | 1 | $ 15.45 | ||
| 52 | 15645-93J00 Check Valve
SKU: 15645-93J00 Weight: 0.110000 Brand: Price: $ 90.51 |
Check Valve | 1 | $ 90.51 | ||
| 53 | 15637-93J20 Fuel Hose (L)
SKU: 15637-93J20 Weight: 0.500000 Brand: Price: $ 53.73 |
Fuel Hose (L) | 1 | $ 53.73 | ||
| 54 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 2 | $ 5.49 | ||
| 55 | 15683-87J00 Drain Hose (L:120)
SKU: 15683-87J00 Weight: 0.125000 Brand: Price: $ 3.37 |
Drain Hose (L:120) | 1 | $ 3.37 | ||
| 56 | 02112-0406B SCREW
SKU: 02112-0406B Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 3 | $ 1.57 | ||
| 57 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 9.36 |
Hose (5x8.2x600) | 1 | $ 9.36 | L:600->220 | |
| 58 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 9.36 |
Hose (5x8.2x600) | 1 | $ 9.36 | L:600->550 | |
| 59 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 60 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | ||
| 61 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 2 | $ 1.78 | ||
| 62 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 63 | 01500-06257 BOLT
SKU: 01500-06257 Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 64 | 15671-93J00 Vapor Separator Bracket (NLA)
SKU: 15671-93J00 Weight: 0.100000 Brand: Price: $ 22.97 |
Vapor Separator Bracket (NLA) | 1 | $ 22.97 | ||
| 65 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 66 | 09169-08042 Washer
SKU: 09169-08042 Weight: 0.060000 Brand: Price: $ 5.86 |
Washer | 6 | $ 5.86 | ||
| 67 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 3 | $ 3.48 | ||
| 68 | 18117-52G10 Evap Purge Valve Assy
SKU: 18117-52G10 Weight: 0.250000 Brand: Price: $ 135.74 |
Evap Purge Valve Assy | 1 | $ 135.74 | ||
| 69 | 18417-93J00 Purge Valve Bracket
SKU: 18417-93J00 Weight: 0.100000 Brand: Price: $ 5.38 |
Purge Valve Bracket | 1 | $ 5.38 | ||
| 70 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 71 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 |
