Suzuki DF 300A Parts Listings - 2013
S/N 30002P-310001 to 30002P-31XXXX

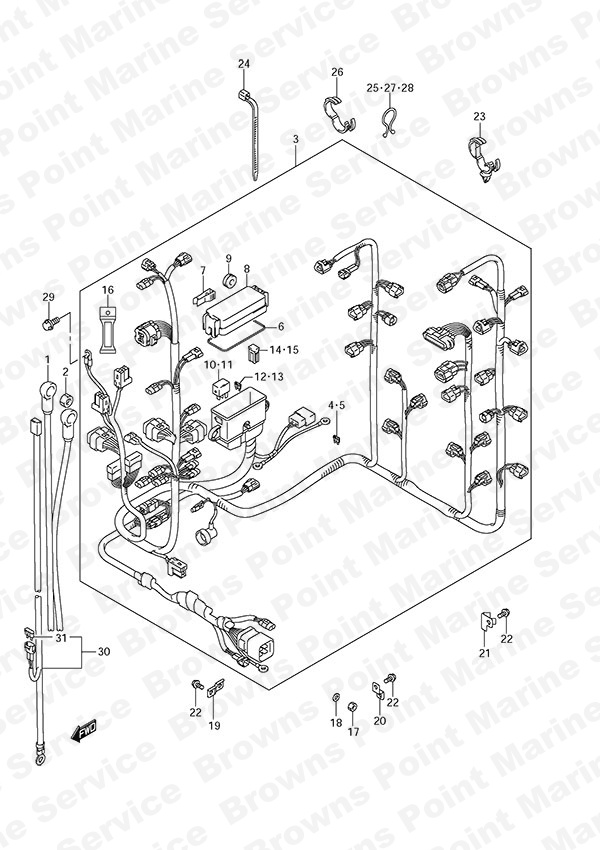

Fig. 23 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-98J01 Starter Motor Cable Assembly
SKU: 33810-98J01 Weight: 5.000000 Brand: Price: $ 317.56 |
Starter Motor Cable Assembly | 1 | $ 317.56 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 1 | $ 2.38 | ||
| 3 | 36610-98J42 HARNESS ASSY,WI
SKU: 36610-98J42 Weight: 0.000000 Brand: Price: $ 1,211.86 |
HARNESS ASSY,WI | 1 | $ 1,211.86 | ||
| 4 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.17 |
10 Amp Fuse | 2 | $ 2.17 | ||
| 5 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.17 |
15 Amp Fuse | 2 | $ 2.17 | ||
| 6 | 36721-96J00 Upper Cover O-Ring
SKU: 36721-96J00 Weight: 0.060000 Brand: Price: $ 12.30 |
Upper Cover O-Ring | 1 | $ 12.30 | ||
| 7 | 36737-96J00 Fuse Puller (NLA)
SKU: 36737-96J00 Weight: 0.060000 Brand: Price: $ 4.01 |
Fuse Puller (NLA) | 1 | $ 4.01 | ||
| 8 | 36738-98J00 Fuse Case Upper Cover
SKU: 36738-98J00 Weight: 0.060000 Brand: Price: $ 18.70 |
Fuse Case Upper Cover | 1 | $ 18.70 | ||
| 9 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.80 |
Cushion (8.5x20x8) | 2 | $ 1.80 | ||
| 10 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | Engine Control Unit | |
| 11 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | Starter Motor | |
| 12 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.17 |
15 Amp Fuse | 3 | $ 2.17 | ||
| 13 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.45 |
30 Amp Fuse | 3 | $ 2.45 | ||
| 14 | 09481-40401 40 Amp Fuse
SKU: 09481-40401 Weight: 0.060000 Brand: Price: $ 7.16 |
40 Amp Fuse | 1 | $ 7.16 | ||
| 15 | 09481-60401 60 Amp Fuse
SKU: 09481-60401 Weight: 0.060000 Brand: Price: $ 6.94 |
60 Amp Fuse | 2 | $ 6.94 | ||
| 16 | 36612-98J10 Regular Rotation Selector
SKU: 36612-98J10 Weight: 0.125000 Brand: Price: $ 15.17 |
Regular Rotation Selector | 1 | $ 15.17 | ||
| 17 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 1 | $ 1.95 | ||
| 18 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 | ||
| 19 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.12 |
Harness Bracket | 3 | $ 2.12 | ||
| 20 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.06 |
Harness Bracket | 8 | $ 2.06 | ||
| 21 | 36617-98J00 Harness Bracket (NLA)
SKU: 36617-98J00 Weight: 0.060000 Brand: Price: $ 5.92 |
Harness Bracket (NLA) | 1 | $ 5.92 | ||
| 22 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 12 | $ 2.45 | ||
| 23 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.80 |
Clip | 1 | $ 3.80 | ||
| 24 | 09407-18402 Clamp (L:165)
SKU: 09407-18402 Weight: 0.060000 Brand: Price: $ 2.32 |
Clamp (L:165) | 4 | $ 2.32 | ||
| 25 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 2 | $ 2.25 | ||
| 26 | 09408-00184 Clamp
SKU: 09408-00184 Weight: 0.125000 Brand: Price: $ 3.10 |
Clamp | 3 | $ 3.10 | ||
| 27 | 09408-00012 Clamp
SKU: 09408-00012 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 1 | $ 2.25 | ||
| 28 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 1 | $ 2.25 | ||
| 29 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 30 | 36625-98J10 Battery Wire Assembly
SKU: 36625-98J10 Weight: 0.500000 Brand: Price: $ 97.31 |
Battery Wire Assembly | 1 | $ 97.31 | Optional | |
| 31 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.45 |
30 Amp Fuse | 1 | $ 2.45 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
