Suzuki DF 300A Parts Listings - 2013
S/N 30002P-310001 to 30002P-31XXXX

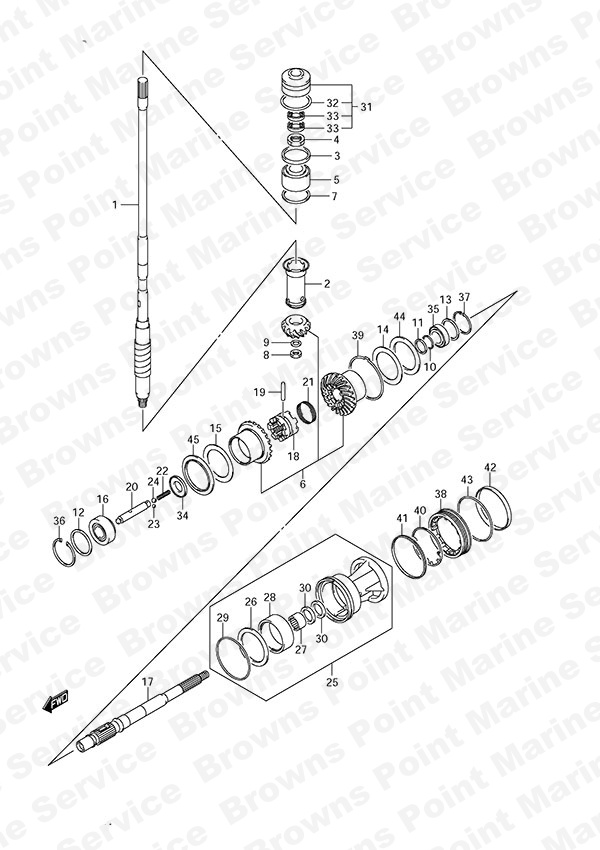

Fig. 18 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-93L12 Drive Shaft (X)
SKU: 57110-93L12 Weight: 20.000000 Brand: Price: $ 830.71 |
Drive Shaft (X) | 1 | $ 830.71 | w/Transom (X) | |
| 1-2 | 57110-93L22 Drive Shaft (XX)
SKU: 57110-93L22 Weight: 20.000000 Brand: Price: $ 889.19 |
Drive Shaft (XX) | 1 | $ 889.19 | Type: XX | |
| 2 | 57133-93L00 Drive Shaft Collar
SKU: 57133-93L00 Weight: 0.250000 Brand: Price: $ 10.73 |
Drive Shaft Collar | 1 | $ 10.73 | ||
| 3 | 57134-93J00 Drive Shaft Bearing Spacer
SKU: 57134-93J00 Weight: 0.250000 Brand: Price: $ 25.91 |
Drive Shaft Bearing Spacer | 1 | $ 25.91 | ||
| 4 | 09159-28003 Drive Shaft Bearing Nut
SKU: 09159-28003 Weight: 0.100000 Brand: Price: $ 44.52 |
Drive Shaft Bearing Nut | 1 | $ 44.52 | ||
| 5 | 09269-32002 Bearing (32x66x49)
SKU: 09269-32002 Weight: 0.500000 Brand: Price: $ 205.05 |
Bearing (32x66x49) | 1 | $ 205.05 | ||
| 6 | 57300-93L03 Pinion & Gear Set
SKU: 57300-93L03 Weight: 5.000000 Brand: Price: $ 1,549.55 |
Pinion & Gear Set | 1 | $ 1,549.55 | ||
| 7-1 | 09181-60004 Shim (0.45)
SKU: 09181-60004 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.45) | 1 | $ 4.85 | ||
| 7-2 | 09181-60005 Shim (0.50)
SKU: 09181-60005 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.50) | 1 | $ 4.85 | ||
| 7-3 | 09181-60006 Shim (0.55)
SKU: 09181-60006 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.55) | 1 | $ 4.85 | ||
| 7-4 | 09181-60007 Shim (0.60)
SKU: 09181-60007 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.60) | 1 | $ 4.85 | ||
| 7-5 | 09181-60008 Shim (0.65)
SKU: 09181-60008 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.65) | 1 | $ 4.85 | ||
| 7-6 | 09181-60009 Shim (0.70)
SKU: 09181-60009 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.70) | 1 | $ 4.85 | ||
| 7-7 | 09181-60010 Shim (0.75)
SKU: 09181-60010 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.75) | 1 | $ 4.85 | ||
| 7-8 | 09181-60011 Shim (0.80)
SKU: 09181-60011 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.80) | 1 | $ 4.85 | ||
| 7-9 | 09181-60012 Shim (0.85)
SKU: 09181-60012 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.85) | 1 | $ 4.85 | ||
| 7-10 | 09181-60013 Shim (0.90)
SKU: 09181-60013 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.90) | 1 | $ 4.85 | ||
| 8 | 09140-16026 Nut 16mm
SKU: 09140-16026 Weight: 0.060000 Brand: Price: $ 5.16 |
Nut 16mm | 1 | $ 5.16 | ||
| 9 | 08221-16256 Washer
SKU: 08221-16256 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer | 1 | $ 1.91 | ||
| 10 | 09180-32006 Spacer (32.4x40x3)
SKU: 09180-32006 Weight: 0.060000 Brand: Price: $ 10.41 |
Spacer (32.4x40x3) | 1 | $ 10.41 | Rev Gear | |
| 11-1 | 09181-32035 Shim (0.50)
SKU: 09181-32035 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.50) | 1 | $ 4.18 | Rev Gear | |
| 11-2 | 09181-32036 Shim (0.55)
SKU: 09181-32036 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.55) | 1 | $ 4.18 | ||
| 11-3 | 09181-32037 Shim (0.60)
SKU: 09181-32037 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.60) | 1 | $ 4.18 | ||
| 11-4 | 09181-32038 Shim (0.65)
SKU: 09181-32038 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.65) | 1 | $ 4.18 | ||
| 11-5 | 09181-32039 Shim (0.70)
SKU: 09181-32039 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.70) | 1 | $ 4.18 | ||
| 11-6 | 09181-32040 Shim (0.75)
SKU: 09181-32040 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.75) | 1 | $ 4.08 | ||
| 11-7 | 09181-32041 Shim (0.80)
SKU: 09181-32041 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.80) | 1 | $ 4.08 | ||
| 11-8 | 09181-32042 Shim (0.85)
SKU: 09181-32042 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.85) | 1 | $ 4.08 | ||
| 11-9 | 09181-32043 Shim (0.90)
SKU: 09181-32043 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.90) | 1 | $ 4.08 | ||
| 11-10 | 09181-32044 Shim (0.95)
SKU: 09181-32044 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.95) | 1 | $ 4.08 | ||
| 12 | 09160-60012 Washer (60x72x3)
SKU: 09160-60012 Weight: 0.100000 Brand: Price: $ 9.16 |
Washer (60x72x3) | 1 | $ 9.16 | Fwd Gear | |
| 13 | 09160-50006 Washer (50x58x3)
SKU: 09160-50006 Weight: 0.100000 Brand: Price: $ 6.95 |
Washer (50x58x3) | 1 | $ 6.95 | Rev Gear | |
| 14-1 | 09181-78001 Shim (0.50)
SKU: 09181-78001 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.50) | 1 | $ 9.16 | Rev Gear | |
| 14-2 | 09181-78002 Shim (0.55)
SKU: 09181-78002 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.55) | 1 | $ 9.16 | ||
| 14-3 | 09181-78003 Shim (0.60)
SKU: 09181-78003 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.60) | 1 | $ 9.16 | ||
| 14-4 | 09181-78004 Shim (0.65)
SKU: 09181-78004 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.65) | 1 | $ 9.16 | ||
| 14-5 | 09181-78005 Shim (0.70)
SKU: 09181-78005 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.70) | 1 | $ 9.16 | ||
| 14-6 | 09181-78006 Shim (0.75)
SKU: 09181-78006 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.75) | 1 | $ 9.16 | ||
| 14-7 | 09181-78007 Shim (0.80)
SKU: 09181-78007 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.80) | 1 | $ 9.16 | ||
| 14-8 | 09181-78008 Shim (0.85)
SKU: 09181-78008 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.85) | 1 | $ 9.16 | ||
| 14-9 | 09181-78009 Shim (0.90)
SKU: 09181-78009 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.90) | 1 | $ 9.16 | ||
| 14-10 | 09181-78010 Shim (0.95)
SKU: 09181-78010 Weight: 0.100000 Brand: Price: $ 9.16 |
Shim (0.95) | 1 | $ 9.16 | ||
| 15-1 | 09181-84001 Shim (0.50)
SKU: 09181-84001 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.50) | 1 | $ 9.49 | Fwd Gear | |
| 15-2 | 09181-84002 Shim (0.55)
SKU: 09181-84002 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.55) | 1 | $ 9.49 | ||
| 15-3 | 09181-84003 Shim (0.60)
SKU: 09181-84003 Weight: 0.100000 Brand: Price: $ 9.47 |
Shim (0.60) | 1 | $ 9.47 | ||
| 15-4 | 09181-84004 Shim (0.65)
SKU: 09181-84004 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.65) | 1 | $ 9.49 | ||
| 15-5 | 09181-84005 Shim (0.70)
SKU: 09181-84005 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.70) | 1 | $ 9.49 | ||
| 15-6 | 09181-84006 Shim (0.75)
SKU: 09181-84006 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.75) | 1 | $ 9.49 | ||
| 15-7 | 09181-84007 Shim (0.80)
SKU: 09181-84007 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.80) | 1 | $ 9.49 | ||
| 15-8 | 09181-84008 Shim (0.85)
SKU: 09181-84008 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.85) | 1 | $ 9.49 | ||
| 15-9 | 09181-84009 Shim (0.90)
SKU: 09181-84009 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.90) | 1 | $ 9.49 | ||
| 15-10 | 09181-84010 Shim (0.95)
SKU: 09181-84010 Weight: 0.100000 Brand: Price: $ 9.49 |
Shim (0.95) | 1 | $ 9.49 | ||
| 16 | 09265-30033 Bearing (30x72x28.75)
SKU: 09265-30033 Weight: 0.500000 Brand: Price: $ 64.31 |
Bearing (30x72x28.75) | 1 | $ 64.31 | ||
| 17 | 57610-93L00 Propeller Shaft
SKU: 57610-93L00 Weight: 10.000000 Brand: Price: $ 636.92 |
Propeller Shaft | 1 | $ 636.92 | ||
| 18 | 57621-93L00 Clutch Dog Shifter
SKU: 57621-93L00 Weight: 1.000000 Brand: Price: $ 372.51 |
Clutch Dog Shifter | 1 | $ 372.51 | ||
| 19 | 09202-08013 Clutch Dog Shifter Pin
SKU: 09202-08013 Weight: 0.250000 Brand: Price: $ 11.25 |
Clutch Dog Shifter Pin | 1 | $ 11.25 | ||
| 20 | 57631-93L00 Connector Pin
SKU: 57631-93L00 Weight: 0.250000 Brand: Price: $ 23.59 |
Connector Pin | 1 | $ 23.59 | ||
| 21 | 09440-58001 Clutch Dog Spring
SKU: 09440-58001 Weight: 0.250000 Brand: Price: $ 5.56 |
Clutch Dog Spring | 1 | $ 5.56 | ||
| 22 | 57617-93L00 Detent Spring
SKU: 57617-93L00 Weight: 0.250000 Brand: Price: $ 3.21 |
Detent Spring | 1 | $ 3.21 | ||
| 23 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | ||
| 24 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | ||
| 25 | 56120-93L11 Propeller Shaft Bearing Housing
SKU: 56120-93L11 Weight: 4.000000 Brand: Price: $ 606.41 |
Propeller Shaft Bearing Housing | 1 | $ 606.41 | ||
| 26 | 56124-93L00 Reverse Gear Thrust Wahser
SKU: 56124-93L00 Weight: 0.250000 Brand: Price: $ 92.58 |
Reverse Gear Thrust Wahser | 1 | $ 92.58 | ||
| 27 | 09263-30063 Bearing (30x40x25)
SKU: 09263-30063 Weight: 0.200000 Brand: Price: $ 43.67 |
Bearing (30x40x25) | 1 | $ 43.67 | ||
| 24 | 09263-72001 Bearing (72x90x34)
SKU: 09263-72001 Weight: 0.500000 Brand: Price: $ 484.33 |
Bearing (72x90x34) | 1 | $ 484.33 | ||
| 29 | 09280-00047 O-Ring
SKU: 09280-00047 Weight: 0.060000 Brand: Price: $ 8.54 |
O-Ring | 1 | $ 8.54 | ||
| 30 | 09282-30006 Oil Seal (30x45x6)
SKU: 09282-30006 Weight: 0.060000 Brand: Price: $ 5.72 |
Oil Seal (30x45x6) | 2 | $ 5.72 | ||
| 31 | 56130-93J02 Drive Shaft Bearing Housing
SKU: 56130-93J02 Weight: 0.560000 Brand: Price: $ 91.72 |
Drive Shaft Bearing Housing | 1 | $ 91.72 | ||
| 32 | 09280-66004 O-Ring
SKU: 09280-66004 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 | ||
| 33 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 34 | 57622-93L00 Forward Thrust Spacer
SKU: 57622-93L00 Weight: 0.250000 Brand: Price: $ 22.08 |
Forward Thrust Spacer | 1 | $ 22.08 | ||
| 35 | 09265-32003 Bearing (32x58x17)
SKU: 09265-32003 Weight: 0.250000 Brand: Price: $ 47.65 |
Bearing (32x58x17) | 1 | $ 47.65 | ||
| 36 | 09381-72001 Circlip
SKU: 09381-72001 Weight: 0.250000 Brand: Price: $ 10.42 |
Circlip | 1 | $ 10.42 | ||
| 37 | 08331-4158A Circlip
SKU: 08331-4158A Weight: 0.250000 Brand: Price: $ 3.44 |
Circlip | 1 | $ 3.44 | ||
| 38 | 56122-93L00 Prop Shaft Bearing Housing Stopper
SKU: 56122-93L00 Weight: 0.500000 Brand: Price: $ 66.91 |
Prop Shaft Bearing Housing Stopper | 1 | $ 66.91 | ||
| 39 | 56126-93L00 Prop Shaft Bearing Housing Washer No. 1
SKU: 56126-93L00 Weight: 0.250000 Brand: Price: $ 21.79 |
Prop Shaft Bearing Housing Washer No. 1 | 1 | $ 21.79 | ||
| 40 | 56127-93L00 Prop Shaft Bearing Housing Washer No. 2
SKU: 56127-93L00 Weight: 0.250000 Brand: Price: $ 8.83 |
Prop Shaft Bearing Housing Washer No. 2 | 1 | $ 8.83 | ||
| 41 | 56128-93L00 Prop Shaft Bearing Housing Seal
SKU: 56128-93L00 Weight: 0.250000 Brand: Price: $ 11.07 |
Prop Shaft Bearing Housing Seal | 1 | $ 11.07 | ||
| 42 | 56129-93L00 Stopper Bushing
SKU: 56129-93L00 Weight: 0.500000 Brand: Price: $ 88.04 |
Stopper Bushing | 1 | $ 88.04 | ||
| 43 | 09280-00050 O-Ring
SKU: 09280-00050 Weight: 0.060000 Brand: Price: $ 7.10 |
O-Ring | 1 | $ 7.10 | ||
| 44 | 09263-78001 Bearing (78.26x105x5.45)
SKU: 09263-78001 Weight: 0.250000 Brand: Price: $ 139.80 |
Bearing (78.26x105x5.45) | 1 | $ 139.80 | Reverse | |
| 45 | 09263-83001 Bearing (83.26x110x5.45)
SKU: 09263-83001 Weight: 0.250000 Brand: Price: $ 157.44 |
Bearing (83.26x110x5.45) | 1 | $ 157.44 | Forward |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
- All contents of this website apply to the continental U.S. market only.
- All trademarks or product names mentioned herein are the property of their respective owners.
