Suzuki DF 225 Parts Listings - 2012
S/N 22503F-210001 to 22503F-21XXXX

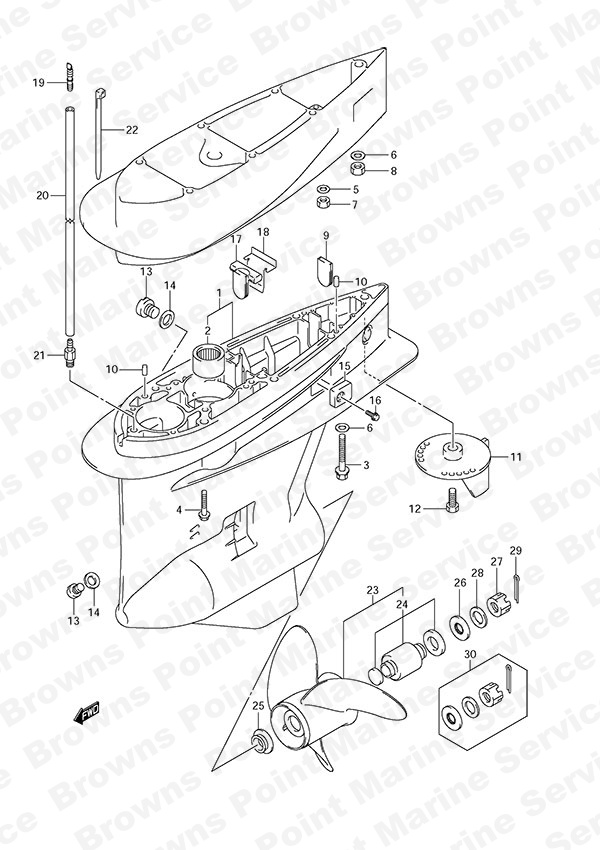

Fig. 142 - Gear Case

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 55110-93J20-0EP Gear Case Housing 1 $ 2,042.57
2 09263-32017 Pinion Bearing 1 $ 171.49
3 09100-12052 Bolt (12x70) 1 $ 11.80
Type: X
4 09116-10150 Bolt (10x55) 6 $ 15.95
Type: X
5 09160-10141 Washer (10.5x19x2) 6 $ 3.41
Type: XX
6 09160-12066 Washer (12.5x22x2.5) 1 $ 1.80
7 09140-10031 Nut (10mm) 6 $ 2.04
Type: XX
8 09159-12014 Nut (12x17) 1 $ 5.04
Type: XX
9 17566-87D12 GROMMET 1 $ 6.66
10 09202-08006 Knock Pin (8x12) 2 $ 2.77
11 55125-98J00-0EP Trim Tab 1 $ 104.41
12 09116-08137 Bolt (8x22) 1 $ 7.44
13 55128-93J10 Drain Plug 3 $ 5.92
14 09168-10038 GASKET,DRAIN PL 3 $ 2.23
15 55321-93J01 Protection Anode 2 $ 15.13
16 09116-06094 Bolt (6x15) 2 $ 2.28
17 55332-87D12 Exhaust Seal Rubber 1 $ 6.66
18 55333-87D10 Exhaust Seal Plate 1 $ 10.93
19 55127-87D00 Hose Union 1 $ 3.83
20 09355-40805-00B Hose (4x8x2000) 1 $ 29.37
L:2000->1700
21 09362-09008 Nipple 1 $ 2.92
22 09407-10404 Clamp (L:100) 2 $ 2.52
23-1 990C0-00810-17P S/S Watergrip Propeller 3x16x17 1 $ 696.48
23-2 990C0-00810-185 S/S Watergrip Propeller 3x16x18-1/2 1 $ 696.48
23-3 990C0-00810-20P S/S Watergrip Propeller 3x16x20 1 $ 696.48
23-4 990C0-00810-215 S/S Watergrip Propeller 3x16x21-1/2 1 $ 696.48
23-5 990C0-00810-23P S/S Watergrip Propeller 3x16x23 1 $ 696.48
23-6 990C0-00810-245 S/S Watergrip Propeller 3x16x24-1/2 1 $ 696.48
23-7 990C0-00810-26P S/S Watergrip Propeller 3x16x26 1 $ 696.48
23-8 990C0-00810-275 S/S Watergrip Propeller 3x16x27-1/2 1 $ 696.48
24 58105-93J10 Propeller Bushing Set 1 $ 176.22
25 57632-93L01 Propeller Bushing Stopper 1 $ 59.32
26 57633-87D30 Propeller Nut Spacer 1 $ 20.99
27 09141-18005 Nut (18mm) 1 $ 10.32
28 09160-18028 Washer (18.5x31x1.0) 1 $ 3.69
29 09204-03003 Prop Nut Cotter Pin 1 $ 2.44
30 57630-92E00 Propeller Hardware Kit DF150/175 DFV6 DTV6 1 $ 34.42
Optional
31 25700-93J00 Gear Case Seal Kit DF150 / DF175 / DF200 / DF225 / DF250 1 $ 32.39
Opt: Not Shown

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
