Suzuki DF 225 Parts Listings - 2012
S/N 22503F-210001 to 22503F-21XXXX

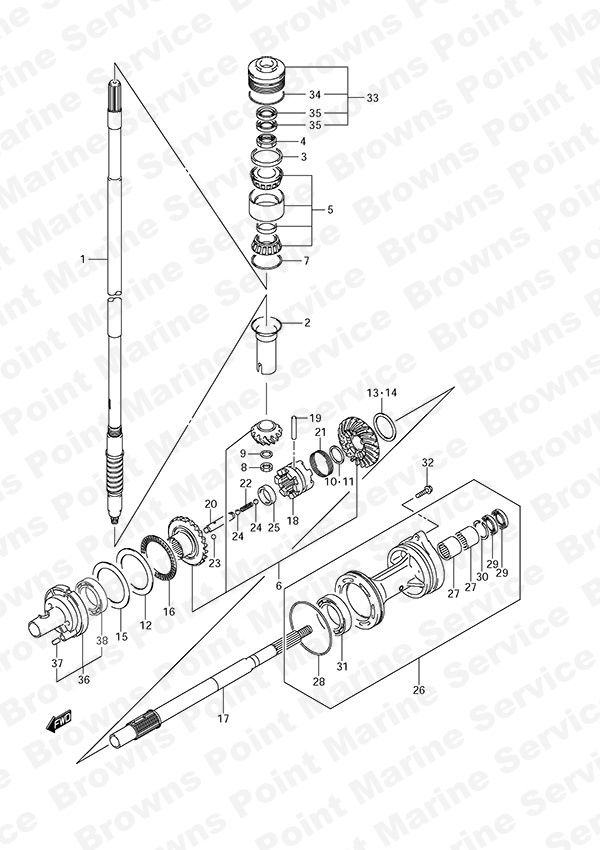

Fig. 64 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-93J00 Drive Shaft (X)
SKU: 57110-93J00 Weight: 8.820000 Brand: Price: $ 792.18 |
Drive Shaft (X) | 1 | $ 792.18 | Type: X | |
| 1-2 | 57110-93J10 Drive Shaft (XX)
SKU: 57110-93J10 Weight: 11.000000 Brand: Price: $ 938.54 |
Drive Shaft (XX) | 1 | $ 938.54 | Type: XX | |
| 2 | 57133-93J00 Drive Shaft Collar
SKU: 57133-93J00 Weight: 0.060000 Brand: Price: $ 12.24 |
Drive Shaft Collar | 1 | $ 12.24 | ||
| 3 | 57134-93J00 Drive Shaft Bearing Spacer
SKU: 57134-93J00 Weight: 0.250000 Brand: Price: $ 25.91 |
Drive Shaft Bearing Spacer | 1 | $ 25.91 | ||
| 4 | 09159-28003 Drive Shaft Bearing Nut
SKU: 09159-28003 Weight: 0.100000 Brand: Price: $ 44.52 |
Drive Shaft Bearing Nut | 1 | $ 44.52 | ||
| 5 | 09269-32002 Bearing (32x66x49)
SKU: 09269-32002 Weight: 0.500000 Brand: Price: $ 205.05 |
Bearing (32x66x49) | 1 | $ 205.05 | ||
| 6 | 57300-93841 Pinion & Gear Set
SKU: 57300-93841 Weight: 6.000000 Brand: Price: $ 974.07 |
Pinion & Gear Set | 1 | $ 974.07 | ||
| 7-1 | 09181-60004 Shim (0.45)
SKU: 09181-60004 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.45) | 1 | $ 4.85 | ||
| 7-2 | 09181-60005 Shim (0.50)
SKU: 09181-60005 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.50) | 1 | $ 4.85 | ||
| 7-3 | 09181-60006 Shim (0.55)
SKU: 09181-60006 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.55) | 1 | $ 4.85 | ||
| 7-4 | 09181-60007 Shim (0.60)
SKU: 09181-60007 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.60) | 1 | $ 4.85 | ||
| 7-5 | 09181-60008 Shim (0.65)
SKU: 09181-60008 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.65) | 1 | $ 4.85 | ||
| 7-6 | 09181-60009 Shim (0.70)
SKU: 09181-60009 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.70) | 1 | $ 4.85 | ||
| 7-7 | 09181-60010 Shim (0.75)
SKU: 09181-60010 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.75) | 1 | $ 4.85 | ||
| 7-8 | 09181-60011 Shim (0.80)
SKU: 09181-60011 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.80) | 1 | $ 4.85 | ||
| 7-9 | 09181-60012 Shim (0.85)
SKU: 09181-60012 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.85) | 1 | $ 4.85 | ||
| 7-10 | 09181-60013 Shim (0.90)
SKU: 09181-60013 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.90) | 1 | $ 4.85 | ||
| 8 | 09140-16021 Pinion Nut
SKU: 09140-16021 Weight: 0.060000 Brand: Price: $ 3.76 |
Pinion Nut | 1 | $ 3.76 | ||
| 9 | 08221-16256 Washer
SKU: 08221-16256 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer | 1 | $ 1.91 | ||
| 10 | 57500-87861 Propeller Shaft Shim Set
SKU: 57500-87861 Weight: 0.250000 Brand: Price: $ 26.95 |
Propeller Shaft Shim Set | 1 | $ 26.95 | ||
| 11-1 | 08211-30382 Thrust Washer (1.50)
SKU: 08211-30382 Weight: 0.100000 Brand: Price: $ 3.42 |
Thrust Washer (1.50) | 1 | $ 3.42 | ||
| 11-2 | 09160-30036 Thrust Washer (1.70)
SKU: 09160-30036 Weight: 0.100000 Brand: Price: $ 4.66 |
Thrust Washer (1.70) | 1 | $ 4.66 | ||
| 11-3 | 09160-30037 Thrust Washer (1.90)
SKU: 09160-30037 Weight: 0.100000 Brand: Price: $ 4.57 |
Thrust Washer (1.90) | 1 | $ 4.57 | ||
| 11-4 | 09160-30038 Thrust Washer (2.10)
SKU: 09160-30038 Weight: 0.100000 Brand: Price: $ 4.66 |
Thrust Washer (2.10) | 1 | $ 4.66 | ||
| 11-5 | 08211-30384 Thrust Washer (2.20)
SKU: 08211-30384 Weight: 0.100000 Brand: Price: $ 3.68 |
Thrust Washer (2.20) | 1 | $ 3.68 | ||
| 11-6 | 09160-30039 Thrust Washer (2.30)
SKU: 09160-30039 Weight: 0.100000 Brand: Price: $ 4.66 |
Thrust Washer (2.30) | 1 | $ 4.66 | ||
| 11-7 | 09160-30041 Thrust Washer (2.40)
SKU: 09160-30041 Weight: 0.100000 Brand: Price: $ 5.54 |
Thrust Washer (2.40) | 1 | $ 5.54 | ||
| 11-8 | 08211-30385 Thrust Washer (2.50)
SKU: 08211-30385 Weight: 0.100000 Brand: Price: $ 3.68 |
Thrust Washer (2.50) | 1 | $ 3.68 | ||
| 11-9 | 09160-30042 Thrust Washer (2.60)
SKU: 09160-30042 Weight: 0.100000 Brand: Price: $ 5.54 |
Thrust Washer (2.60) | 1 | $ 5.54 | ||
| 11-10 | 09160-30043 Thrust Washer (2.70)
SKU: 09160-30043 Weight: 0.100000 Brand: Price: $ 5.54 |
Thrust Washer (2.70) | 1 | $ 5.54 | ||
| 11-11 | 09160-30044 Thrust Washer (2.80)
SKU: 09160-30044 Weight: 0.100000 Brand: Price: $ 5.54 |
Thrust Washer (2.80) | 1 | $ 5.54 | ||
| 12 | 09160-75002 Thrust Washer
SKU: 09160-75002 Weight: 0.062500 Brand: Price: $ 40.65 |
Thrust Washer | 1 | $ 40.65 | Fwd Gear | |
| 13 | 57500-87852 Reverse Gear Shim Set
SKU: 57500-87852 Weight: 0.200000 Brand: Price: $ 33.20 |
Reverse Gear Shim Set | 1 | $ 33.20 | ||
| 14-1 | 09181-50013 Shim (1.00) (NLA)
SKU: 09181-50013 Weight: 0.100000 Brand: Price: $ 3.10 |
Shim (1.00) (NLA) | 1 | $ 3.10 | ||
| 14-2 | 09181-50012 Shim (1.10)
SKU: 09181-50012 Weight: 0.100000 Brand: Price: $ 6.14 |
Shim (1.10) | 1 | $ 6.14 | ||
| 14-3 | 09181-50005 Shim (1.20)
SKU: 09181-50005 Weight: 0.100000 Brand: Price: $ 6.06 |
Shim (1.20) | 1 | $ 6.06 | ||
| 14-4 | 09181-50006 Shim (1.30)
SKU: 09181-50006 Weight: 0.100000 Brand: Price: $ 6.06 |
Shim (1.30) | 1 | $ 6.06 | ||
| 14-5 | 09181-50007 Shim (1.40)
SKU: 09181-50007 Weight: 0.100000 Brand: Price: $ 6.06 |
Shim (1.40) | 1 | $ 6.06 | ||
| 14-9 | 09181-50008 Shim (1.50)
SKU: 09181-50008 Weight: 0.100000 Brand: Price: $ 6.06 |
Shim (1.50) | 1 | $ 6.06 | ||
| 14-7 | 09181-50009 Shim (1.60)
SKU: 09181-50009 Weight: 0.100000 Brand: Price: $ 6.14 |
Shim (1.60) | 1 | $ 6.14 | ||
| 14-8 | 09181-50010 Shim (1.70) (NLA)
SKU: 09181-50010 Weight: 0.100000 Brand: Price: $ 3.39 |
Shim (1.70) (NLA) | 1 | $ 3.39 | ||
| 15-1 | 09181-75018 Shim (0.50)
SKU: 09181-75018 Weight: 0.060000 Brand: Price: $ 7.30 |
Shim (0.50) | 1 | $ 7.30 | Fwd Gear | |
| 15-2 | 09181-75019 Shim (0.55)
SKU: 09181-75019 Weight: 0.060000 Brand: Price: $ 9.97 |
Shim (0.55) | 1 | $ 9.97 | ||
| 15-3 | 09181-75012 Shim (0.60)
SKU: 09181-75012 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.60) | 1 | $ 7.44 | ||
| 15-4 | 09181-75013 Shim (0.65)
SKU: 09181-75013 Weight: 0.060000 Brand: Price: $ 7.57 |
Shim (0.65) | 1 | $ 7.57 | ||
| 15-5 | 09181-75008 Shim (0.70)
SKU: 09181-75008 Weight: 0.060000 Brand: Price: $ 7.57 |
Shim (0.70) | 1 | $ 7.57 | ||
| 15-6 | 09181-75014 Shim (0.75)
SKU: 09181-75014 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.75) | 1 | $ 7.44 | ||
| 15-7 | 09181-75009 Shim (0.80)
SKU: 09181-75009 Weight: 0.060000 Brand: Price: $ 7.30 |
Shim (0.80) | 1 | $ 7.30 | ||
| 15-8 | 09181-75015 Shim (0.85)
SKU: 09181-75015 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.85) | 1 | $ 7.44 | ||
| 15-9 | 09181-75010 Shim (0.90)
SKU: 09181-75010 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.90) | 1 | $ 7.44 | ||
| 15-10 | 09181-75016 Shim (0.95)
SKU: 09181-75016 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.95) | 1 | $ 7.44 | ||
| 15-11 | 09181-75011 Shim (1.00)
SKU: 09181-75011 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (1.00) | 1 | $ 7.44 | ||
| 16 | 09269-75002 Thrust Bearing
SKU: 09269-75002 Weight: 0.200000 Brand: Price: $ 70.26 |
Thrust Bearing | 1 | $ 70.26 | ||
| 17 | 57610-93J00 Propeller Shaft Assembly
SKU: 57610-93J00 Weight: 4.400000 Brand: Price: $ 495.80 |
Propeller Shaft Assembly | 1 | $ 495.80 | ||
| 18 | 57621-93J10 Clutch Dog Shifter
SKU: 57621-93J10 Weight: 1.000000 Brand: Price: $ 235.50 |
Clutch Dog Shifter | 1 | $ 235.50 | ||
| 19 | 09202-08007 Pin (8x49)
SKU: 09202-08007 Weight: 0.060000 Brand: Price: $ 4.47 |
Pin (8x49) | 1 | $ 4.47 | ||
| 20 | 57631-93J00 Connector Pin
SKU: 57631-93J00 Weight: 0.250000 Brand: Price: $ 35.80 |
Connector Pin | 1 | $ 35.80 | ||
| 21 | 09440-52003 Clutch Dog Shifter Spring
SKU: 09440-52003 Weight: 0.060000 Brand: Price: $ 2.62 |
Clutch Dog Shifter Spring | 1 | $ 2.62 | ||
| 22 | 09440-09040 Detent Spring
SKU: 09440-09040 Weight: 0.100000 Brand: Price: $ 2.82 |
Detent Spring | 1 | $ 2.82 | ||
| 23 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | ||
| 24 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | ||
| 25 | 09180-25082 Stopper
SKU: 09180-25082 Weight: 0.125000 Brand: Price: $ 9.37 |
Stopper | 1 | $ 9.37 | ||
| 26 | 56120-93J70-0EP HOUSING,PROP SH
SKU: 56120-93J70-0EP Weight: 0.000000 Brand: Price: $ 358.32 |
HOUSING,PROP SH | 1 | $ 358.32 | ||
| 27 | 09263-30063 Bearing (30x40x25)
SKU: 09263-30063 Weight: 0.200000 Brand: Price: $ 43.67 |
Bearing (30x40x25) | 2 | $ 43.67 | ||
| 28 | 09280-00040 O-Ring
SKU: 09280-00040 Weight: 0.060000 Brand: Price: $ 7.36 |
O-Ring | 1 | $ 7.36 | ||
| 29 | 09282-30006 Oil Seal (30x45x6)
SKU: 09282-30006 Weight: 0.060000 Brand: Price: $ 5.72 |
Oil Seal (30x45x6) | 2 | $ 5.72 | ||
| 30 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 31 | 08113-60100 B1 50X80X16 BEA
SKU: 08113-60100 Weight: 0.700000 Brand: Price: $ 58.71 |
B1 50X80X16 BEA | 1 | $ 58.71 | ||
| 32 | 29116-93J10 Bolt (8x35)
SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 2 | $ 2.90 | ||
| 33 | 56130-93J02 Drive Shaft Bearing Housing
SKU: 56130-93J02 Weight: 0.560000 Brand: Price: $ 91.72 |
Drive Shaft Bearing Housing | 1 | $ 91.72 | ||
| 34 | 09280-66004 O-Ring
SKU: 09280-66004 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 | ||
| 35 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 36 | 56140-93J20 HOUSING COMP,FW
SKU: 56140-93J20 Weight: 0.000000 Brand: Price: $ 244.23 |
HOUSING COMP,FW | 1 | $ 244.23 | ||
| 38 | 09263-50009 Forward Gear Bearing
SKU: 09263-50009 Weight: 0.500000 Brand: Price: $ 104.40 |
Forward Gear Bearing | 1 | $ 104.40 | ||
| 37 | 04221-08129 PIN 8X12
SKU: 04221-08129 Weight: 0.100000 Brand: Price: $ 1.99 |
PIN 8X12 | 1 | $ 1.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
