Suzuki DF 175 Parts Listings
S/N 17502F-310001 to 17502F-31XXXX
S/N 17502Z-310001 to 17502Z-31XXXX

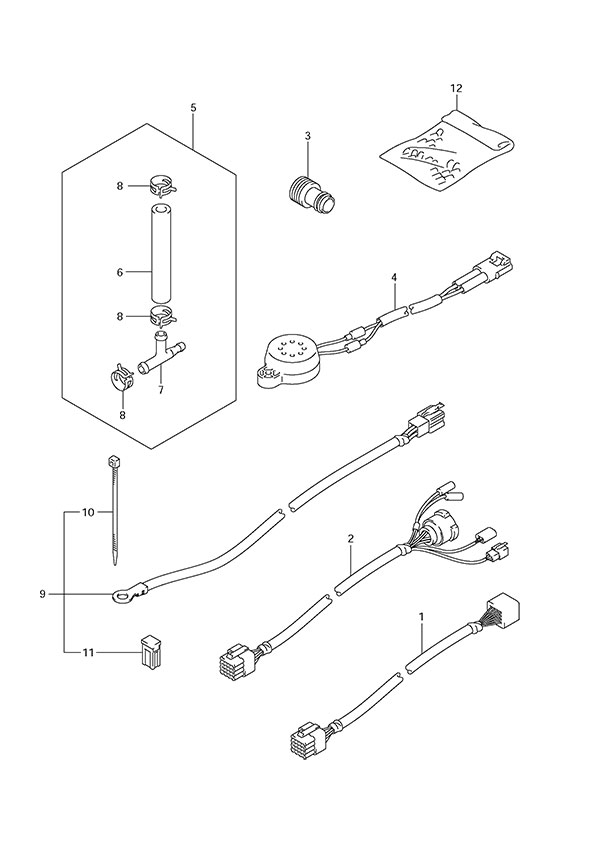

Fig. 80 - Opt: Harness (1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 36620-93J12 MAIN HARNESS EXT 6.5'
SKU: 36620-93J12 Weight: 0.000000 Brand: Price: $ 87.37 |
MAIN HARNESS EXT 6.5' | 1 | $ 87.37 | L:2000 | |
| 1-2 | 36620-93J42 HARNESS EXT 10'
SKU: 36620-93J42 Weight: 0.000000 Brand: Price: $ 120.18 |
HARNESS EXT 10' | 1 | $ 120.18 | L:3000 | |
| 2 | 36620-93J31 DF Wire Harness Adapter
SKU: 36620-93J31 Weight: 2.000000 Brand: Price: $ 103.94 |
DF Wire Harness Adapter | 1 | $ 103.94 | ||
| 3 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 | ||
| 4 | 38500-93J00 Warning Buzzer*
SKU: 38500-93J00 Weight: 0.140000 Brand: Price: $ 67.48 |
Warning Buzzer* | 1 | $ 67.48 | ||
| 5 | 34660-96J01 Water Pressure Gauge Install Kit
SKU: 34660-96J01 Weight: 0.250000 Brand: Price: $ 18.18 |
Water Pressure Gauge Install Kit | 1 | $ 18.18 | ||
| 6 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->70 | |
| 7 | 09367-06006 3 Way
SKU: 09367-06006 Weight: 0.060000 Brand: Price: $ 4.09 |
3 Way | 1 | $ 4.09 | ||
| 8 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 3 | $ 2.09 | ||
| 9 | 33830-96J00 Battery Isolator Lead Set
SKU: 33830-96J00 Weight: 0.800000 Brand: Price: $ 130.37 |
Battery Isolator Lead Set | 1 | $ 130.37 | ||
| 10 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 11 | 09481-30401 30 Amp Fuse
SKU: 09481-30401 Weight: 0.060000 Brand: Price: $ 7.53 |
30 Amp Fuse | 1 | $ 7.53 | ||
| 12 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
