Suzuki DF 175 Parts Listings
S/N 17502F-310001 to 17502F-31XXXX
S/N 17502Z-310001 to 17502Z-31XXXX

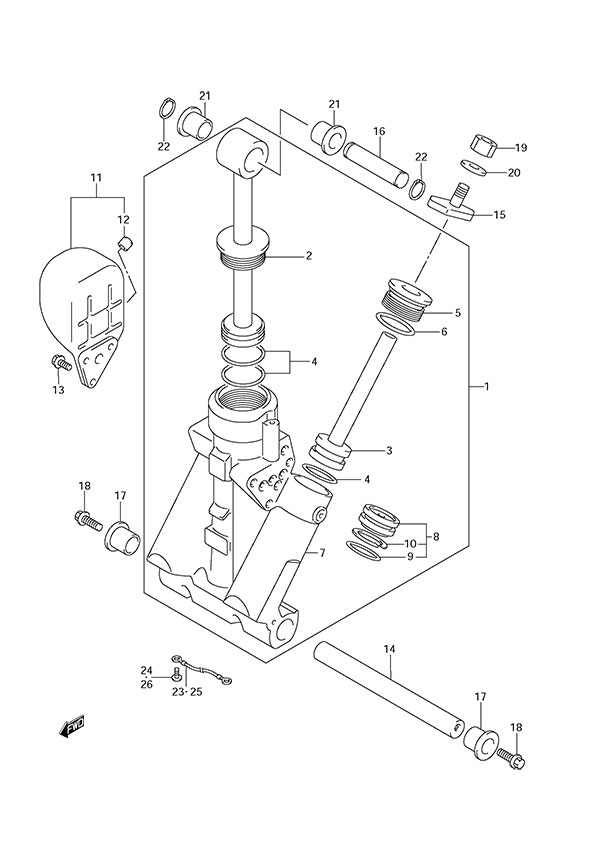

Fig. 57 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48503-96J05 MANIFOLD SUB AS
SKU: 48503-96J05 Weight: 0.000000 Brand: Price: $ 2,575.16 |
MANIFOLD SUB AS | 1 | $ 2,575.16 | ||
| 2 | 48401-96J02 Piston Assembly
SKU: 48401-96J02 Weight: 2.000000 Brand: Price: $ 299.73 |
Piston Assembly | 1 | $ 299.73 | ||
| 3 | 48601-94900 Piston & Ram Assembly
SKU: 48601-94900 Weight: 1.000000 Brand: Price: $ 229.26 |
Piston & Ram Assembly | 2 | $ 229.26 | ||
| 4 | 48627-95E00 O-Ring Set
SKU: 48627-95E00 Weight: 0.060000 Brand: Price: $ 7.63 |
O-Ring Set | 3 | $ 7.63 | ||
| 5 | 48630-96J04 Trim Cylinder Head
SKU: 48630-96J04 Weight: 0.250000 Brand: Price: $ 93.25 |
Trim Cylinder Head | 2 | $ 93.25 | ||
| 6 | 48633-94900 O-Ring Set (Pack of 2)
SKU: 48633-94900 Weight: 0.060000 Brand: Price: $ 5.49 |
O-Ring Set (Pack of 2) | 2 | $ 5.49 | ||
| 7 | 48641-96J03 PTT Manifold
SKU: 48641-96J03 Weight: 5.000000 Brand: Price: $ 965.72 |
PTT Manifold | 1 | $ 965.72 | ||
| 8 | 48650-94900 Free Piston
SKU: 48650-94900 Weight: 0.260000 Brand: Price: $ 79.39 |
Free Piston | 1 | $ 79.39 | ||
| 9 | 48405-87D00 Tilt O-Ring Set
SKU: 48405-87D00 Weight: 0.060000 Brand: Price: $ 5.35 |
Tilt O-Ring Set | 1 | $ 5.35 | ||
| 10 | 48615-97E00 Piston Ring Set
SKU: 48615-97E00 Weight: 0.060000 Brand: Price: $ 8.46 |
Piston Ring Set | 1 | $ 8.46 | ||
| 11 | 48570-95E01 Reservoir Assembly
SKU: 48570-95E01 Weight: 0.340000 Brand: Price: $ 174.79 |
Reservoir Assembly | 1 | $ 174.79 | ||
| 12 | 48572-95E00 Cap
SKU: 48572-95E00 Weight: 0.060000 Brand: Price: $ 19.06 |
Cap | 1 | $ 19.06 | ||
| 13 | 48861-92J01 Reservoir Bolt
SKU: 48861-92J01 Weight: 0.060000 Brand: Price: $ 10.88 |
Reservoir Bolt | 3 | $ 10.88 | ||
| 14 | 48121-92J00 Tilt Cylinder Lower Shaft
SKU: 48121-92J00 Weight: 0.500000 Brand: Price: $ 97.68 |
Tilt Cylinder Lower Shaft | 1 | $ 97.68 | ||
| 15 | 48311-96J10 Trim Cylinder Ram Pad
SKU: 48311-96J10 Weight: 0.125000 Brand: Price: $ 41.00 |
Trim Cylinder Ram Pad | 2 | $ 41.00 | ||
| 16 | 48321-87D03 Tilt Cylinder Upper Shaft
SKU: 48321-87D03 Weight: 0.500000 Brand: Price: $ 23.89 |
Tilt Cylinder Upper Shaft | 1 | $ 23.89 | ||
| 17 | 48326-95E00 Tilt Cylinder Lower Bushing
SKU: 48326-95E00 Weight: 0.060000 Brand: Price: $ 5.18 |
Tilt Cylinder Lower Bushing | 2 | $ 5.18 | ||
| 18 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 2 | $ 11.01 | ||
| 19 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 20 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 21 | 09306-17001 Bushing
SKU: 09306-17001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 22 | 09380-17009 Circlip
SKU: 09380-17009 Weight: 0.060000 Brand: Price: $ 2.07 |
Circlip | 2 | $ 2.07 | ||
| 23 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | PTT to Anode | |
| 24 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 25 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | PTT to Anode | |
| 26 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
