Suzuki DF 150 Parts Listings
S/N 15002F-310001 to 15002F-31XXXX
S/N 15002Z-310001 to 15002Z-31XXXX

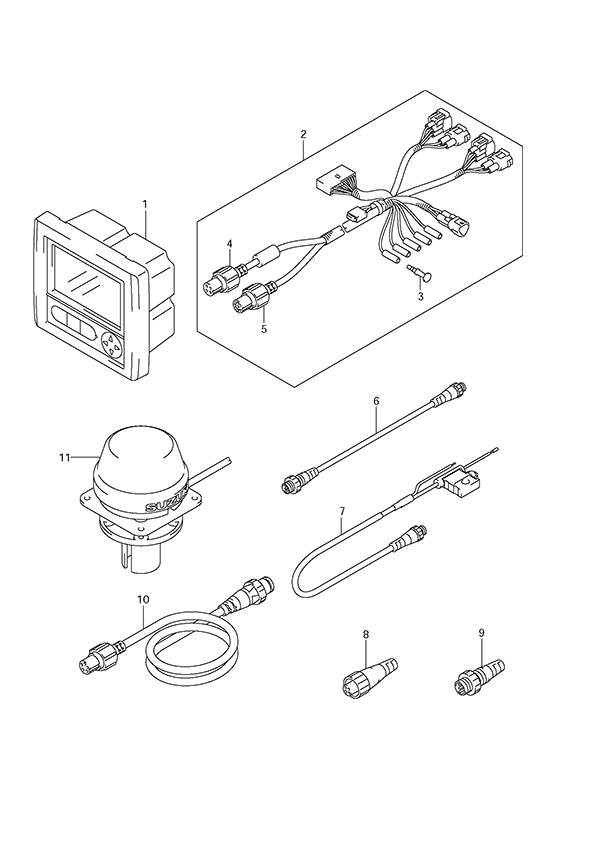

Fig. 79 - Opt: Meter (2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 2 | 36661-87L00 Gauge Adapter
SKU: 36661-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Gauge Adapter | 1 | $ 0.00 | ||
| 3 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 5 | $ 1.31 | ||
| 4 | 36662-87L00 Gauge Harness (NLA)
SKU: 36662-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Gauge Harness (NLA) | 1 | $ 0.00 | ||
| 5 | 36663-87L00 Gauge Harness (NLA)
SKU: 36663-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Gauge Harness (NLA) | 1 | $ 0.00 | ||
| 6 | 990C0-88108 25' Extension cable
SKU: 990C0-88108 Weight: 1.100000 Brand: Price: $ 56.76 |
25' Extension cable | 1 | $ 56.76 | ||
| 7 | 990C0-88112 SMIS Power Cable
SKU: 990C0-88112 Weight: 0.240000 Brand: Price: $ 42.55 |
SMIS Power Cable | 1 | $ 42.55 | ||
| 8 | 990C0-88113 Terminating Resistor 120 ohm Female
SKU: 990C0-88113 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Female | 1 | $ 8.03 | ||
| 9 | 990C0-88114 Terminating Resistor 120 ohm Male
SKU: 990C0-88114 Weight: 0.060000 Brand: Price: $ 8.03 |
Terminating Resistor 120 ohm Male | 1 | $ 8.03 | ||
| 10 | 36666-87L00 Network Wire
SKU: 36666-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
Network Wire | 1 | $ 0.00 | ||
| 11 | 39950-87L00 GPS Receiver Module Assembly
SKU: 39950-87L00 Weight: 1.000000 Brand: Price: $ 0.00 |
GPS Receiver Module Assembly | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
