Suzuki DF 150 Parts Listings
S/N 15002F-310001 to 15002F-31XXXX

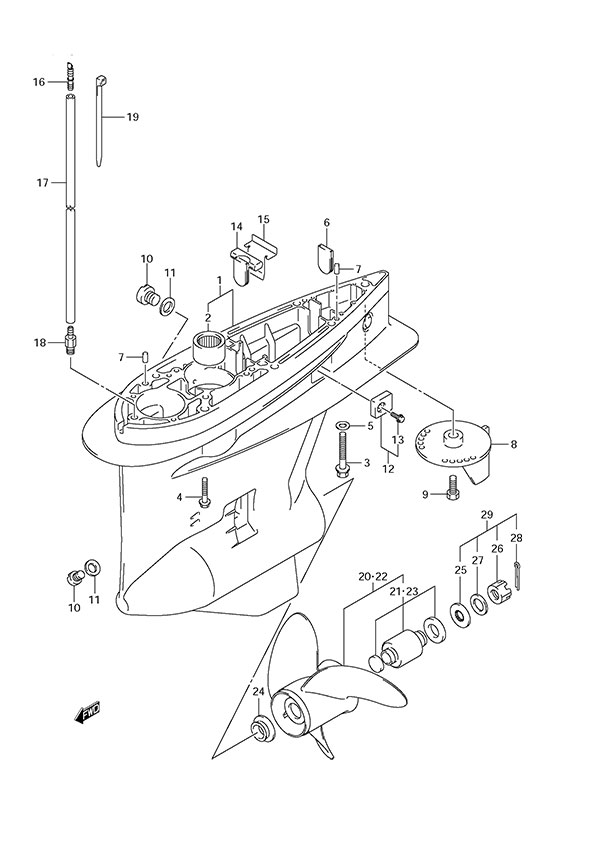

Fig. 64 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-93J20-0EP Gear Case Housing
SKU: 55110-93J20-0EP Weight: 35.000000 Brand: Price: $ 2,042.57 |
Gear Case Housing | 1 | $ 2,042.57 | ||
| 2 | 09263-32017 Pinion Bearing
SKU: 09263-32017 Weight: 0.460000 Brand: Price: $ 171.49 |
Pinion Bearing | 1 | $ 171.49 | ||
| 3 | 09100-12052 Bolt (12x70)
SKU: 09100-12052 Weight: 0.160000 Brand: Price: $ 11.80 |
Bolt (12x70) | 1 | $ 11.80 | ||
| 4 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 6 | $ 15.95 | ||
| 5 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 1 | $ 1.80 | ||
| 6 | 17566-87D12 GROMMET
SKU: 17566-87D12 Weight: 0.000000 Brand: Price: $ 6.66 |
GROMMET | 1 | $ 6.66 | ||
| 7 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 8 | 55125-98J00-0EP Trim Tab
SKU: 55125-98J00-0EP Weight: 0.280000 Brand: Price: $ 104.41 |
Trim Tab | 1 | $ 104.41 | ||
| 9 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 10 | 55128-93J10 Drain Plug
SKU: 55128-93J10 Weight: 0.060000 Brand: Price: $ 5.92 |
Drain Plug | 3 | $ 5.92 | ||
| 11 | 09168-10038 GASKET,DRAIN PL
SKU: 09168-10038 Weight: 0.000000 Brand: Price: $ 2.23 |
GASKET,DRAIN PL | 3 | $ 2.23 | ||
| 12 | 55321-93J01 Protection Anode
SKU: 55321-93J01 Weight: 0.125000 Brand: Price: $ 15.13 |
Protection Anode | 2 | $ 15.13 | ||
| 13 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 2 | $ 1.78 | ||
| 14 | 55332-87D12 Exhaust Seal Rubber
SKU: 55332-87D12 Weight: 0.060000 Brand: Price: $ 6.66 |
Exhaust Seal Rubber | 1 | $ 6.66 | ||
| 15 | 55333-87D10 Exhaust Seal Plate
SKU: 55333-87D10 Weight: 0.080000 Brand: Price: $ 10.93 |
Exhaust Seal Plate | 1 | $ 10.93 | ||
| 16 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 17 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | L:2000->1700 | |
| 18 | 09362-09008 Nipple
SKU: 09362-09008 Weight: 0.060000 Brand: Price: $ 2.92 |
Nipple | 1 | $ 2.92 | ||
| 19 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 20-1 | 990C0-00830-17P Replaced by 990C0-00840-17P
SKU: 990C0-00830-17P Weight: 25.000000 Brand: Price: $ 750.27 |
Replaced by 990C0-00840-17P | 1 | $ 750.27 | ||
| 20-1 | 990C0-00840-19P S/S Watergrip Propeller 3x15-1/4x19
SKU: 990C0-00840-19P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x15-1/4x19 | 1 | $ 750.70 | ||
| 20-3 | 990C0-00840-21P S/S Watergrip Propeller 3x15x21
SKU: 990C0-00840-21P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x15x21 | 1 | $ 750.70 | ||
| 20-4 | 990C0-00840-23P S/S Watergrip Propeller 3x14-3/4x23
SKU: 990C0-00840-23P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x14-3/4x23 | 1 | $ 750.70 | ||
| 20-5 | 990C0-00840-25P S/S Watergrip Propeller 3x14-3/4x25
SKU: 990C0-00840-25P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x14-3/4x25 | 1 | $ 750.70 | ||
| 20-6 | 990C0-00840-27P S/S Watergrip Propeller 3x14-1/2x27
SKU: 990C0-00840-27P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x14-1/2x27 | 1 | $ 750.70 | ||
| 20-7 | 990C0-00834-23P S/S Propeller 4x14-3/8x23 (NLA)
SKU: 990C0-00834-23P Weight: 25.000000 Brand: Price: $ 636.34 |
S/S Propeller 4x14-3/8x23 (NLA) | 1 | $ 636.34 | ||
| 20-8 | 990C0-00834-25P S/S Propeller 4x14-3/8x25 (NLA)
SKU: 990C0-00834-25P Weight: 25.000000 Brand: Price: $ 636.34 |
S/S Propeller 4x14-3/8x25 (NLA) | 1 | $ 636.34 | ||
| 20-9 | 990C0-00834-27P S/S Propeller 4x14-3/8x27 (NLA)
SKU: 990C0-00834-27P Weight: 25.000000 Brand: Price: $ 636.34 |
S/S Propeller 4x14-3/8x27 (NLA) | 1 | $ 636.34 | ||
| 20-10 | 990C0-00834-28P S/S Propeller 4x14-3/8x28 (NLA)
SKU: 990C0-00834-28P Weight: 25.000000 Brand: Price: $ 636.34 |
S/S Propeller 4x14-3/8x28 (NLA) | 1 | $ 636.34 | ||
| 20-11 | 990C0-00834-29P S/S Propeller 4x14-3/8x29 (NLA)
SKU: 990C0-00834-29P Weight: 25.000000 Brand: Price: $ 636.34 |
S/S Propeller 4x14-3/8x29 (NLA) | 1 | $ 636.34 | ||
| 21 | 58105-93J10 Propeller Bushing Set
SKU: 58105-93J10 Weight: 2.000000 Brand: Price: $ 176.22 |
Propeller Bushing Set | 1 | $ 176.22 | ||
| 24 | 57632-93L01 Propeller Bushing Stopper
SKU: 57632-93L01 Weight: 1.000000 Brand: Price: $ 59.32 |
Propeller Bushing Stopper | 1 | $ 59.32 | ||
| 25 | 57633-87D30 Propeller Nut Spacer
SKU: 57633-87D30 Weight: 0.500000 Brand: Price: $ 20.99 |
Propeller Nut Spacer | 1 | $ 20.99 | ||
| 26 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 27 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 28 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 29 | 57630-92E00 Propeller Hardware Kit DF150/175 DFV6 DTV6
SKU: 57630-92E00 Weight: 0.440000 Brand: Price: $ 34.42 |
Propeller Hardware Kit DF150/175 DFV6 DTV6 | 1 | $ 34.42 | Optional | |
| 30 | 25700-93J00 Gear Case Seal Kit DF150 / DF175 / DF200 / DF225 / DF250
SKU: 25700-93J00 Weight: 0.200000 Brand: Price: $ 32.39 |
Gear Case Seal Kit DF150 / DF175 / DF200 / DF225 / DF250 | 1 | $ 32.39 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
