Suzuki DF 150 Parts Listings
S/N 15002Z-310001 to 15002Z-31XXXX

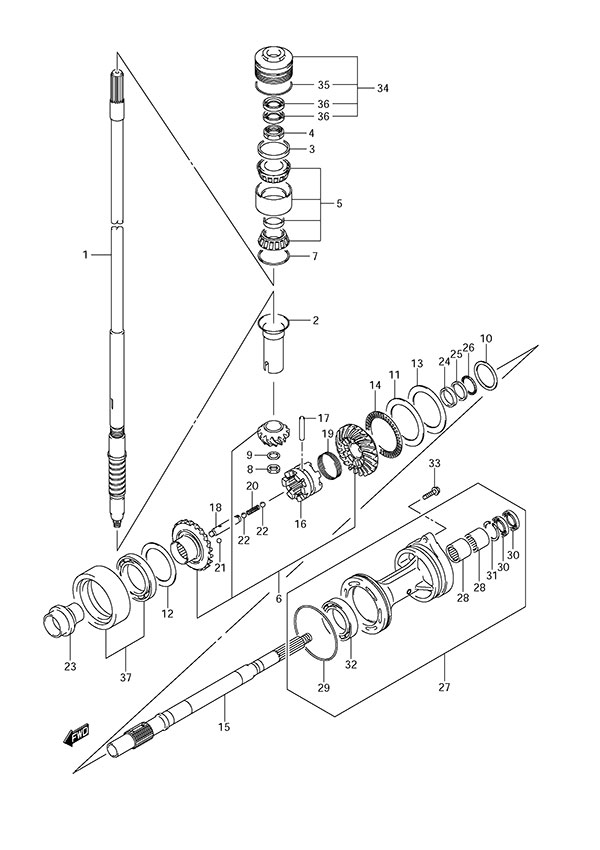

Fig. 37 - Transmission Counter Rotation
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 57110-96J31 Drive Shaft (X)
SKU: 57110-96J31 Weight: 11.000000 Brand: Price: $ 595.69 |
Drive Shaft (X) | 1 | $ 595.69 | ||
| 2 | 57133-93J00 Drive Shaft Collar
SKU: 57133-93J00 Weight: 0.060000 Brand: Price: $ 12.24 |
Drive Shaft Collar | 1 | $ 12.24 | ||
| 3 | 57134-93J00 Drive Shaft Bearing Spacer
SKU: 57134-93J00 Weight: 0.250000 Brand: Price: $ 25.91 |
Drive Shaft Bearing Spacer | 1 | $ 25.91 | ||
| 4 | 09159-28003 Drive Shaft Bearing Nut
SKU: 09159-28003 Weight: 0.100000 Brand: Price: $ 44.52 |
Drive Shaft Bearing Nut | 1 | $ 44.52 | ||
| 5 | 09269-32002 Bearing (32x66x49)
SKU: 09269-32002 Weight: 0.500000 Brand: Price: $ 205.05 |
Bearing (32x66x49) | 1 | $ 205.05 | ||
| 6 | 57300-96820 Pinion & Gear Set (C/R)
SKU: 57300-96820 Weight: 5.000000 Brand: Price: $ 934.65 |
Pinion & Gear Set (C/R) | 1 | $ 934.65 | ||
| 7-1 | 09181-60004 Shim (0.45)
SKU: 09181-60004 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.45) | 1 | $ 4.85 | ||
| 7-2 | 09181-60005 Shim (0.50)
SKU: 09181-60005 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.50) | 1 | $ 4.85 | ||
| 7-3 | 09181-60006 Shim (0.55)
SKU: 09181-60006 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.55) | 1 | $ 4.85 | ||
| 7-4 | 09181-60007 Shim (0.60)
SKU: 09181-60007 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.60) | 1 | $ 4.85 | ||
| 7-5 | 09181-60008 Shim (0.65)
SKU: 09181-60008 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.65) | 1 | $ 4.85 | ||
| 7-6 | 09181-60009 Shim (0.70)
SKU: 09181-60009 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.70) | 1 | $ 4.85 | ||
| 7-7 | 09181-60010 Shim (0.75)
SKU: 09181-60010 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.75) | 1 | $ 4.85 | ||
| 7-8 | 09181-60011 Shim (0.80)
SKU: 09181-60011 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.80) | 1 | $ 4.85 | ||
| 7-9 | 09181-60012 Shim (0.85)
SKU: 09181-60012 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.85) | 1 | $ 4.85 | ||
| 7-10 | 09181-60013 Shim (0.90)
SKU: 09181-60013 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.90) | 1 | $ 4.85 | ||
| 8 | 09140-16021 Pinion Nut
SKU: 09140-16021 Weight: 0.060000 Brand: Price: $ 3.76 |
Pinion Nut | 1 | $ 3.76 | ||
| 9 | 08221-16256 Washer
SKU: 08221-16256 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer | 1 | $ 1.91 | ||
| 10-1 | 09160-35015 Washer (35x46x0.60)
SKU: 09160-35015 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.60) | 1 | $ 7.36 | Prop Shaft Rev | |
| 10-2 | 09160-35013 Washer (35x46x0.80)
SKU: 09160-35013 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.80) | 1 | $ 7.36 | ||
| 10-3 | 09160-35010 Washer (35x46x1.15)
SKU: 09160-35010 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (35x46x1.15) | 1 | $ 4.13 | ||
| 10-4 | 09160-35004 Washer (35x46x1.20) (NLA)
SKU: 09160-35004 Weight: 0.100000 Brand: Price: $ 2.39 |
Washer (35x46x1.20) (NLA) | 1 | $ 2.39 | ||
| 10-5 | 09160-35006 Washer (35x46x0.90)
SKU: 09160-35006 Weight: 0.100000 Brand: Price: $ 3.68 |
Washer (35x46x0.90) | 1 | $ 3.68 | ||
| 10-6 | 09160-35002 Washer (35x46x1.00)
SKU: 09160-35002 Weight: 0.060000 Brand: Price: $ 3.47 |
Washer (35x46x1.00) | 1 | $ 3.47 | ||
| 10-7 | 09160-35008 Washer (35x46x0.95)
SKU: 09160-35008 Weight: 0.100000 Brand: Price: $ 4.26 |
Washer (35x46x0.95) | 1 | $ 4.26 | ||
| 10-8 | 09160-35003 Washer (35x46x1.10)
SKU: 09160-35003 Weight: 0.060000 Brand: Price: $ 4.26 |
Washer (35x46x1.10) | 1 | $ 4.26 | ||
| 10-9 | 09160-35009 Washer (35x46x1.05)
SKU: 09160-35009 Weight: 0.100000 Brand: Price: $ 4.26 |
Washer (35x46x1.05) | 1 | $ 4.26 | ||
| 11 | 09160-75002 Thrust Washer
SKU: 09160-75002 Weight: 0.062500 Brand: Price: $ 40.65 |
Thrust Washer | 1 | $ 40.65 | Fwd Gear | |
| 12-1 | 09181-60004 Shim (0.45)
SKU: 09181-60004 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.45) | 1 | $ 4.85 | Rev Gear | |
| 12-2 | 09181-60005 Shim (0.50)
SKU: 09181-60005 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.50) | 1 | $ 4.85 | ||
| 12-3 | 09181-60006 Shim (0.55)
SKU: 09181-60006 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.55) | 1 | $ 4.85 | ||
| 12-4 | 09181-60007 Shim (0.60)
SKU: 09181-60007 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.60) | 1 | $ 4.85 | ||
| 12-5 | 09181-60008 Shim (0.65)
SKU: 09181-60008 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.65) | 1 | $ 4.85 | ||
| 12-6 | 09181-60009 Shim (0.70)
SKU: 09181-60009 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.70) | 1 | $ 4.85 | ||
| 12-7 | 09181-60010 Shim (0.75)
SKU: 09181-60010 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.75) | 1 | $ 4.85 | ||
| 12-8 | 09181-60011 Shim (0.80)
SKU: 09181-60011 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.80) | 1 | $ 4.85 | ||
| 12-9 | 09181-60012 Shim (0.85)
SKU: 09181-60012 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.85) | 1 | $ 4.85 | ||
| 12-10 | 09181-60013 Shim (0.90)
SKU: 09181-60013 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.90) | 1 | $ 4.85 | ||
| 13-1 | 09181-75018 Shim (0.50)
SKU: 09181-75018 Weight: 0.060000 Brand: Price: $ 7.30 |
Shim (0.50) | 1 | $ 7.30 | Fwd Gear | |
| 13-2 | 09181-75019 Shim (0.55)
SKU: 09181-75019 Weight: 0.060000 Brand: Price: $ 9.97 |
Shim (0.55) | 1 | $ 9.97 | ||
| 13-3 | 09181-75012 Shim (0.60)
SKU: 09181-75012 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.60) | 1 | $ 7.44 | ||
| 13-4 | 09181-75013 Shim (0.65)
SKU: 09181-75013 Weight: 0.060000 Brand: Price: $ 7.57 |
Shim (0.65) | 1 | $ 7.57 | ||
| 13-5 | 09181-75008 Shim (0.70)
SKU: 09181-75008 Weight: 0.060000 Brand: Price: $ 7.57 |
Shim (0.70) | 1 | $ 7.57 | ||
| 13-6 | 09181-75014 Shim (0.75)
SKU: 09181-75014 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.75) | 1 | $ 7.44 | ||
| 13-7 | 09181-75009 Shim (0.80)
SKU: 09181-75009 Weight: 0.060000 Brand: Price: $ 7.30 |
Shim (0.80) | 1 | $ 7.30 | ||
| 13-8 | 09181-75015 Shim (0.85)
SKU: 09181-75015 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.85) | 1 | $ 7.44 | ||
| 13-9 | 09181-75010 Shim (0.90)
SKU: 09181-75010 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.90) | 1 | $ 7.44 | ||
| 13-10 | 09181-75016 Shim (0.95)
SKU: 09181-75016 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.95) | 1 | $ 7.44 | ||
| 13-11 | 09181-75011 Shim (1.00)
SKU: 09181-75011 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (1.00) | 1 | $ 7.44 | ||
| 14 | 09269-75002 Thrust Bearing
SKU: 09269-75002 Weight: 0.200000 Brand: Price: $ 70.26 |
Thrust Bearing | 1 | $ 70.26 | ||
| 15 | 57610-93J20 Propeller Shaft Assembly (C/R)
SKU: 57610-93J20 Weight: 4.500000 Brand: Price: $ 556.58 |
Propeller Shaft Assembly (C/R) | 1 | $ 556.58 | ||
| 16 | 57621-93J20 Clutch Dog Shifter
SKU: 57621-93J20 Weight: 1.000000 Brand: Price: $ 256.61 |
Clutch Dog Shifter | 1 | $ 256.61 | ||
| 17 | 09202-08007 Pin (8x49)
SKU: 09202-08007 Weight: 0.060000 Brand: Price: $ 4.47 |
Pin (8x49) | 1 | $ 4.47 | ||
| 18 | 57631-93J00 Connector Pin
SKU: 57631-93J00 Weight: 0.250000 Brand: Price: $ 35.80 |
Connector Pin | 1 | $ 35.80 | ||
| 19 | 09440-52003 Clutch Dog Shifter Spring
SKU: 09440-52003 Weight: 0.060000 Brand: Price: $ 2.62 |
Clutch Dog Shifter Spring | 1 | $ 2.62 | ||
| 20 | 09440-09040 Detent Spring
SKU: 09440-09040 Weight: 0.100000 Brand: Price: $ 2.82 |
Detent Spring | 1 | $ 2.82 | ||
| 21 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | ||
| 22 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | ||
| 23 | 57622-93J00 Forward Thrust Spacer
SKU: 57622-93J00 Weight: 0.100000 Brand: Price: $ 81.34 |
Forward Thrust Spacer | 1 | $ 81.34 | ||
| 24 | 09160-30055 Washer (30x47x6)
SKU: 09160-30055 Weight: 0.062500 Brand: Price: $ 115.57 |
Washer (30x47x6) | 1 | $ 115.57 | ||
| 25 | 09160-30056 Washer (32x47x3)
SKU: 09160-30056 Weight: 0.062500 Brand: Price: $ 36.35 |
Washer (32x47x3) | 1 | $ 36.35 | ||
| 26 | 09269-30014 Thrust Bearing (30x47x2)
SKU: 09269-30014 Weight: 0.060000 Brand: Price: $ 13.67 |
Thrust Bearing (30x47x2) | 1 | $ 13.67 | ||
| 27 | 56120-93J80-0EP HOUSING,PROP SH
SKU: 56120-93J80-0EP Weight: 0.000000 Brand: Price: $ 394.83 |
HOUSING,PROP SH | 1 | $ 394.83 | ||
| 28 | 09263-30063 Bearing (30x40x25)
SKU: 09263-30063 Weight: 0.200000 Brand: Price: $ 43.67 |
Bearing (30x40x25) | 2 | $ 43.67 | ||
| 29 | 09280-00040 O-Ring
SKU: 09280-00040 Weight: 0.060000 Brand: Price: $ 7.36 |
O-Ring | 1 | $ 7.36 | ||
| 30 | 09282-30006 Oil Seal (30x45x6)
SKU: 09282-30006 Weight: 0.060000 Brand: Price: $ 5.72 |
Oil Seal (30x45x6) | 2 | $ 5.72 | ||
| 31 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 32 | 09263-50009 Forward Gear Bearing
SKU: 09263-50009 Weight: 0.500000 Brand: Price: $ 104.40 |
Forward Gear Bearing | 1 | $ 104.40 | ||
| 33 | 09116-08158 Bolt (8x35)
SKU: 09116-08158 Weight: 0.250000 Brand: Price: $ 7.60 |
Bolt (8x35) | 2 | $ 7.60 | ||
| 34 | 56130-93J02 Drive Shaft Bearing Housing
SKU: 56130-93J02 Weight: 0.560000 Brand: Price: $ 91.72 |
Drive Shaft Bearing Housing | 1 | $ 91.72 | ||
| 35 | 09280-66004 O-Ring
SKU: 09280-66004 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 | ||
| 36 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 37 | 56140-93J10 Reverse Gear Bearing Housing
SKU: 56140-93J10 Weight: 2.000000 Brand: Price: $ 226.78 |
Reverse Gear Bearing Housing | 1 | $ 226.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
