Suzuki DF 175 Parts Listings
S/N 17502F-210001 to 17502F-21XXXX

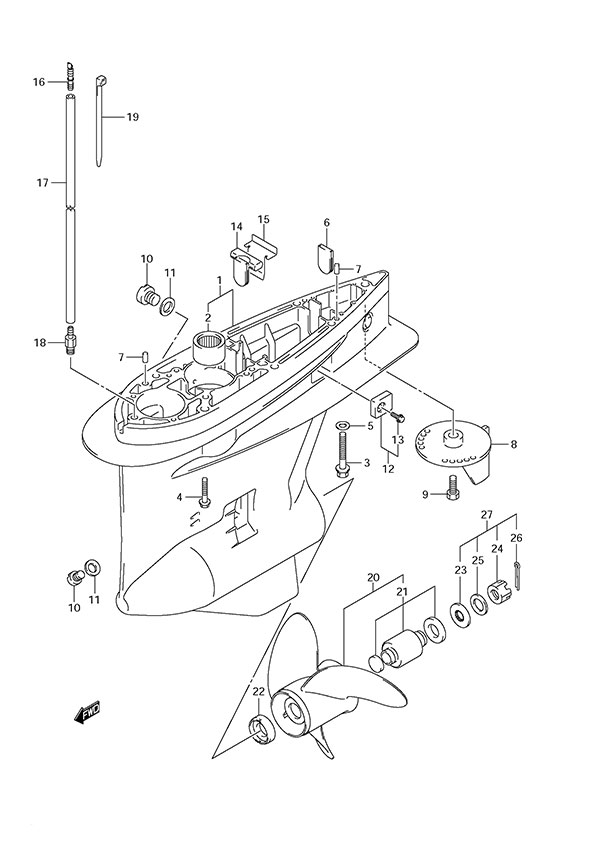

Fig. 81 - Gear Case

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 55110-93J20-0EP Gear Case Housing 1 $ 2,042.57
2 09263-32017 Pinion Bearing 1 $ 171.49
3 09100-12052 Bolt (12x70) 1 $ 11.80
4 09116-10150 Bolt (10x55) 6 $ 15.95
5 09160-12066 Washer (12.5x22x2.5) 1 $ 1.80
6 17566-87D12 GROMMET 1 $ 6.66
7 09202-08006 Knock Pin (8x12) 2 $ 2.77
8 55125-98J00-0EP Trim Tab 1 $ 104.41
9 09116-08137 Bolt (8x22) 1 $ 7.44
10 55128-93J10 Drain Plug 3 $ 5.92
11 09168-10038 GASKET,DRAIN PL 3 $ 2.23
12 55320-95311 Zinc Anode 2 $ 8.74
13 09116-06094 Bolt (6x15) 2 $ 2.28
14 55332-87D12 Exhaust Seal Rubber 1 $ 6.66
15 55333-87D10 Exhaust Seal Plate 1 $ 10.93
16 55127-87D00 Hose Union 1 $ 3.83
17 09355-40805-00B Hose (4x8x2000) 1 $ 29.37
L:2000->1700
18 09362-09008 Nipple 1 $ 2.92
19 09407-10404 Clamp (L:100) 2 $ 2.52
20-1 990C0-00830-17P Replaced by 990C0-00840-17P 1 $ 750.27
20-2 990C0-00840-19P S/S Watergrip Propeller 3x15-1/4x19 1 $ 750.70
20-3 990C0-00840-21P S/S Watergrip Propeller 3x15x21 1 $ 750.70
20-4 990C0-00840-23P S/S Watergrip Propeller 3x14-3/4x23 1 $ 750.70
20-5 990C0-00840-25P S/S Watergrip Propeller 3x14-3/4x25 1 $ 750.70
20-6 990C0-00840-27P S/S Watergrip Propeller 3x14-1/2x27 1 $ 750.70
20-7 990C0-00834-23P S/S Propeller 4x14-3/8x23 (NLA) 1 $ 636.34

Not Available

20-8 990C0-00834-25P S/S Propeller 4x14-3/8x25 (NLA) 1 $ 636.34

Not Available

20-9 990C0-00834-27P S/S Propeller 4x14-3/8x27 (NLA) 1 $ 636.34

Not Available

20-10 990C0-00834-28P S/S Propeller 4x14-3/8x28 (NLA) 1 $ 636.34

Not Available

20-11 990C0-00834-29P S/S Propeller 4x14-3/8x29 (NLA) 1 $ 636.34

Not Available

21 58105-93J00 Propeller Bushing 1 $ 142.52
22 57632-93J11 Propeller Stopper 1 $ 114.96
23 57633-87D30 Propeller Nut Spacer 1 $ 20.99
24 09141-18005 Nut (18mm) 1 $ 10.32
25 09160-18028 Washer (18.5x31x1.0) 1 $ 3.69
26 09204-03003 Prop Nut Cotter Pin 1 $ 2.44
27 57630-92E00 Propeller Hardware Kit DF150/175 DFV6 DTV6 1 $ 34.42
Optional
28 25700-93J00 Gear Case Seal Kit DF150 / DF175 / DF200 / DF225 / DF250 1 $ 32.39
Opt: Not Shown

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
