Suzuki DF 2.5 Parts Listings - 2012
S/N 00252F-210001 to 00252F-21XXXX

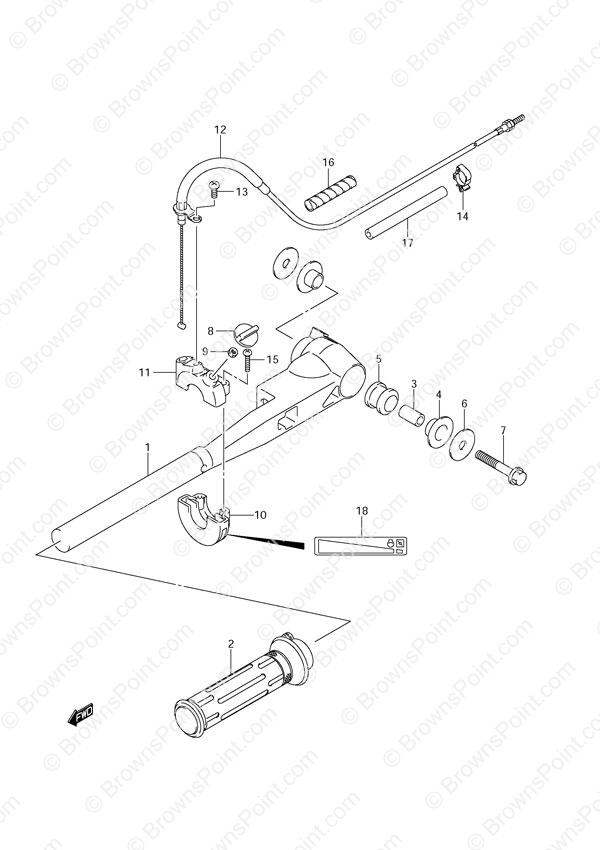

Fig. 20 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-97J21-0EP Tiller Handle
SKU: 63111-97J21-0EP Weight: 2.000000 Brand: Price: $ 88.47 |
Tiller Handle | 1 | $ 88.47 | ||
| 2 | 63210-97J00 Throttle Grip
SKU: 63210-97J00 Weight: 1.500000 Brand: Price: $ 25.85 |
Throttle Grip | 1 | $ 25.85 | ||
| 3 | 59181-97J00 Tiller Handle Spacer
SKU: 59181-97J00 Weight: 0.100000 Brand: Price: $ 8.05 |
Tiller Handle Spacer | 1 | $ 8.05 | ||
| 4 | 59315-97J00 Tiller Handle Bushing
SKU: 59315-97J00 Weight: 0.100000 Brand: Price: $ 6.85 |
Tiller Handle Bushing | 2 | $ 6.85 | ||
| 5 | 63116-97J00 Tiller Handle Mount
SKU: 63116-97J00 Weight: 0.100000 Brand: Price: $ 8.05 |
Tiller Handle Mount | 1 | $ 8.05 | ||
| 6 | 09160-08152 Washer (8.5x28x1.5)
SKU: 09160-08152 Weight: 0.100000 Brand: Price: $ 2.67 |
Washer (8.5x28x1.5) | 2 | $ 2.67 | ||
| 7 | 09116-08138 Bolt (8x40)
SKU: 09116-08138 Weight: 0.060000 Brand: Price: $ 5.74 |
Bolt (8x40) | 1 | $ 5.74 | ||
| 8 | 63244-97J00 Throttle Adjust Knob
SKU: 63244-97J00 Weight: 0.060000 Brand: Price: $ 7.76 |
Throttle Adjust Knob | 1 | $ 7.76 | ||
| 9 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 10 | 57121-09G00 Upper Throttle Case
SKU: 57121-09G00 Weight: 0.200000 Brand: Price: $ 13.96 |
Upper Throttle Case | 1 | $ 13.96 | ||
| 11 | 67821-97J00 Lower Throttle Case
SKU: 67821-97J00 Weight: 0.100000 Brand: Price: $ 56.67 |
Lower Throttle Case | 1 | $ 56.67 | ||
| 12 | 63610-97J00 Throttle Cable Assembly
SKU: 63610-97J00 Weight: 0.100000 Brand: Price: $ 80.05 |
Throttle Cable Assembly | 1 | $ 80.05 | ||
| 13 | 02112-05127 SCREW
SKU: 02112-05127 Weight: 0.060000 Brand: Price: $ 1.97 |
SCREW | 1 | $ 1.97 | ||
| 14 | 23915-78A20 Cable Clamp (NLA)
SKU: 23915-78A20 Weight: 0.100000 Brand: Price: $ 1.60 |
Cable Clamp (NLA) | 2 | $ 1.60 | ||
| 15 | 59125-97J00 Throttle Screw (NLA)
SKU: 59125-97J00 Weight: 0.100000 Brand: Price: $ 1.67 |
Throttle Screw (NLA) | 2 | $ 1.67 | ||
| 16 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->50 | |
| 17 | 09352-90133-600 Hose (9x13x600)
SKU: 09352-90133-600 Weight: 0.160000 Brand: Price: $ 9.23 |
Hose (9x13x600) | 1 | $ 9.23 | L:600->90 | |
| 18 | 69714-97J01 Handle Grip Mark
SKU: 69714-97J01 Weight: 0.062500 Brand: Price: $ 3.53 |
Handle Grip Mark | 1 | $ 3.53 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
