Suzuki DF 175 Parts Listings
S/N 17502F-210001 to 17502F-21XXXX
S/N 17502Z-210001 to 17502Z-21XXXX

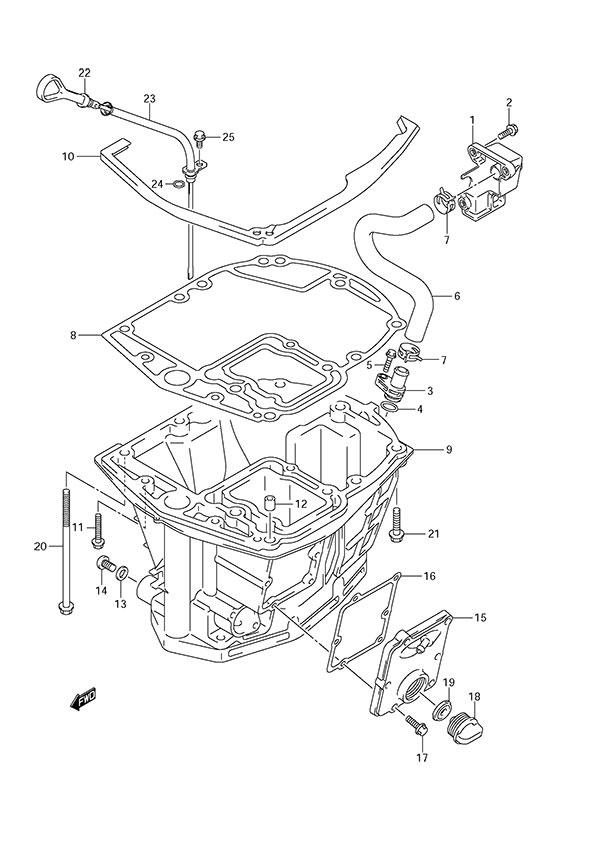

Fig. 39 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11430-96J01 Exhaust Release Pipe
SKU: 11430-96J01 Weight: 0.120000 Brand: Price: $ 20.06 |
Exhaust Release Pipe | 1 | $ 20.06 | ||
| 2 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 1 | $ 2.55 | ||
| 3 | 11540-96J01 Exhaust Pipe
SKU: 11540-96J01 Weight: 0.060000 Brand: Price: $ 10.66 |
Exhaust Pipe | 1 | $ 10.66 | ||
| 4 | 09280-16005 O-Ring
SKU: 09280-16005 Weight: 0.060000 Brand: Price: $ 2.27 |
O-Ring | 1 | $ 2.27 | ||
| 5 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 3 | $ 2.55 | ||
| 6 | 11543-96J01 Exhaust Hose
SKU: 11543-96J01 Weight: 0.250000 Brand: Price: $ 19.07 |
Exhaust Hose | 1 | $ 19.07 | ||
| 7 | 09401-22407 Clip
SKU: 09401-22407 Weight: 0.060000 Brand: Price: $ 3.57 |
Clip | 2 | $ 3.57 | ||
| 8 | 11489-96J01 Oil Pan Gasket
SKU: 11489-96J01 Weight: 1.000000 Brand: Price: $ 40.52 |
Oil Pan Gasket | 1 | $ 40.52 | ||
| 9 | 11501-96J03-0EP Oil Pan
SKU: 11501-96J03-0EP Weight: 18.000000 Brand: Price: $ 729.06 |
Oil Pan | 1 | $ 729.06 | ||
| 10 | 11544-96J01 Oil Pan Upper Seal
SKU: 11544-96J01 Weight: 0.250000 Brand: Price: $ 41.78 |
Oil Pan Upper Seal | 1 | $ 41.78 | ||
| 11 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 2 | $ 4.11 | ||
| 12 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 13 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 14 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 15 | 11550-96J00-0EP Oil Pan Water Jacket Cover
SKU: 11550-96J00-0EP Weight: 1.000000 Brand: Price: $ 74.81 |
Oil Pan Water Jacket Cover | 1 | $ 74.81 | ||
| 16 | 11552-96J00 Water Jacket Cover Gasket
SKU: 11552-96J00 Weight: 0.125000 Brand: Price: $ 10.45 |
Water Jacket Cover Gasket | 1 | $ 10.45 | ||
| 17 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 18 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 19 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 20 | 09116-10146 Bolt (10x195)
SKU: 09116-10146 Weight: 0.200000 Brand: Price: $ 29.18 |
Bolt (10x195) | 8 | $ 29.18 | ||
| 21 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 1 | $ 6.81 | ||
| 22 | 16910-96J01 Oil Level Gauge
SKU: 16910-96J01 Weight: 0.250000 Brand: Price: $ 18.79 |
Oil Level Gauge | 1 | $ 18.79 | ||
| 23 | 16930-96J00 Oil Level Gauge Guide
SKU: 16930-96J00 Weight: 0.250000 Brand: Price: $ 19.90 |
Oil Level Gauge Guide | 1 | $ 19.90 | ||
| 24 | 09280-09008 O-Ring
SKU: 09280-09008 Weight: 0.060000 Brand: Price: $ 3.16 |
O-Ring | 1 | $ 3.16 | ||
| 25 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
