Suzuki DF 175 Parts Listings
S/N 17502F-210001 to 17502F-21XXXX
S/N 17502Z-210001 to 17502Z-21XXXX

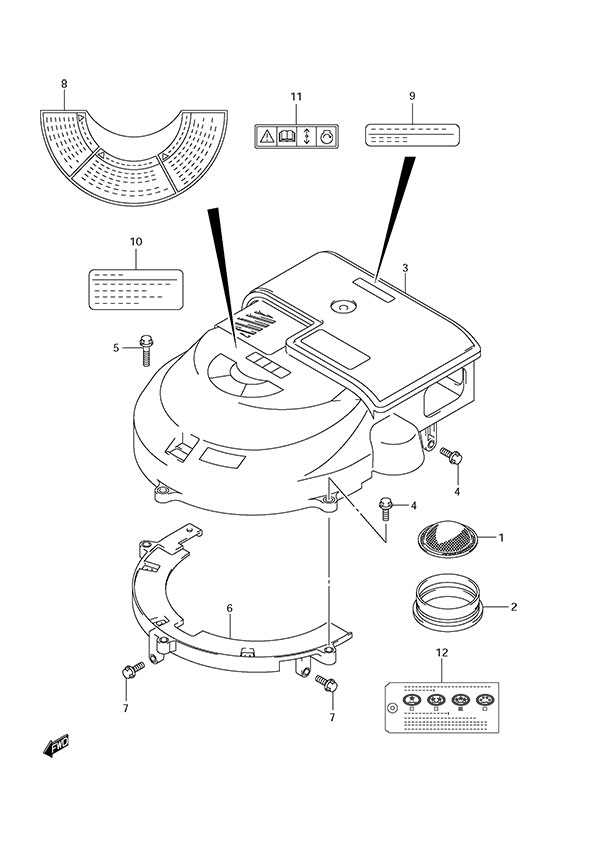

Fig. 16 - Silencer/Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13710-96J00 Flame Arrester
SKU: 13710-96J00 Weight: 0.100000 Brand: Price: $ 13.08 |
Flame Arrester | 1 | $ 13.08 | ||
| 2 | 13813-96J01 HOLDER ARRESTER
SKU: 13813-96J01 Weight: 0.000000 Brand: Price: $ 9.41 |
HOLDER ARRESTER | 1 | $ 9.41 | ||
| 3 | 13810-96J00 Silencer
SKU: 13810-96J00 Weight: 21.000000 Brand: Price: $ 143.52 |
Silencer | 1 | $ 143.52 | ||
| 4 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 5 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 6 | 11510-96J04 Ring Gear Under Cover
SKU: 11510-96J04 Weight: 4.000000 Brand: Price: $ 38.48 |
Ring Gear Under Cover | 1 | $ 38.48 | ||
| 7 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 8 | 61472-93E33 LABEL,RECOIL,ST
SKU: 61472-93E33 Weight: 0.000000 Brand: Price: $ 7.74 |
LABEL,RECOIL,ST | 1 | $ 7.74 | ||
| 9 | 61493-96J00 Clearance Label
SKU: 61493-96J00 Weight: 0.100000 Brand: Price: $ 6.68 |
Clearance Label | 1 | $ 6.68 | ||
| 10 | 61494-96J11 LABEL,OIL & CLE
SKU: 61494-96J11 Weight: 0.000000 Brand: Price: $ 7.70 |
LABEL,OIL & CLE | 1 | $ 7.70 | ||
| 11 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 12 | 65341-87J20 CARB Emission Tag (NLA)
SKU: 65341-87J20 Weight: 0.100000 Brand: Price: $ 1.87 |
CARB Emission Tag (NLA) | 1 | $ 1.87 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
