Suzuki DF 150 Parts Listings
S/N 15002F-210001 to 15002F-21XXXX
S/N 15002Z-210001 to 15002Z-21XXXX

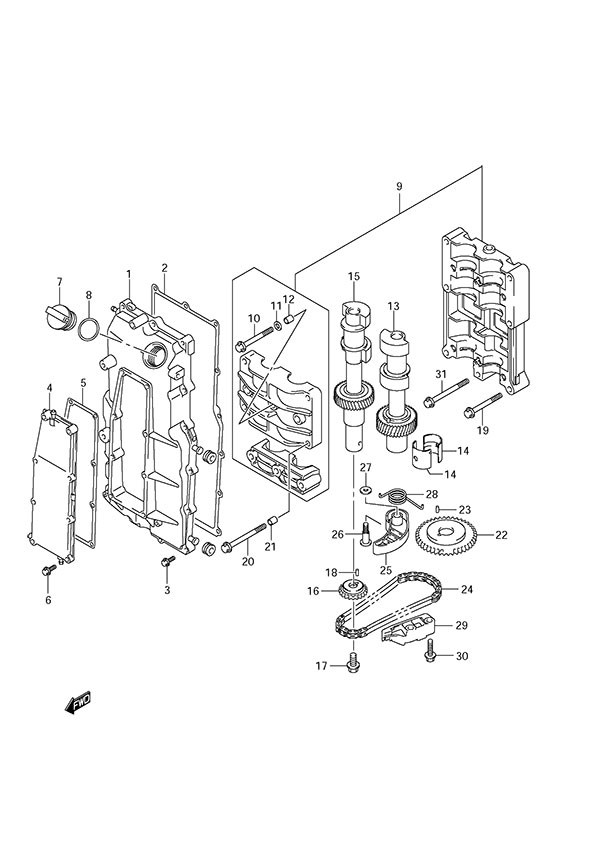

Fig. 7 - Balancer
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11330-96J10 Balancer Shaft Cover
SKU: 11330-96J10 Weight: 5.000000 Brand: Price: $ 296.36 |
Balancer Shaft Cover | 1 | $ 296.36 | ||
| 2 | 11332-96J00 Balancer Cover Gasket
SKU: 11332-96J00 Weight: 0.150000 Brand: Price: $ 35.81 |
Balancer Cover Gasket | 1 | $ 35.81 | ||
| 3 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 15 | $ 2.45 | ||
| 4 | 11340-96J00 Balancer Water Jacket Cover
SKU: 11340-96J00 Weight: 1.000000 Brand: Price: $ 170.69 |
Balancer Water Jacket Cover | 1 | $ 170.69 | ||
| 5 | 11342-96J00 Balancer Water Jacket Cover Gasket
SKU: 11342-96J00 Weight: 0.060000 Brand: Price: $ 11.63 |
Balancer Water Jacket Cover Gasket | 1 | $ 11.63 | ||
| 6 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 8 | $ 2.45 | ||
| 7 | 11382-93J00 Oil Filler Cap
SKU: 11382-93J00 Weight: 0.060000 Brand: Price: $ 5.44 |
Oil Filler Cap | 1 | $ 5.44 | ||
| 8 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.95 |
O-Ring | 1 | $ 2.95 | ||
| 9-1 | 12600-96J10 Balancer Housing Assembly
SKU: 12600-96J10 Weight: 2.000000 Brand: Price: $ 499.26 |
Balancer Housing Assembly | 1 | $ 499.26 | ||
| 9-2 | 12600-96J10 Balancer Housing Assembly
SKU: 12600-96J10 Weight: 2.000000 Brand: Price: $ 499.26 |
Balancer Housing Assembly | 1 | $ 499.26 | DF150T S/N 210508 Newer DF150Z S/N 210055 Newer | |
| 10 | 12643-96J00 Balancer Bolt
SKU: 12643-96J00 Weight: 0.100000 Brand: Price: $ 7.15 |
Balancer Bolt | 6 | $ 7.15 | ||
| 11 | 12644-96J00 Washer
SKU: 12644-96J00 Weight: 0.100000 Brand: Price: $ 3.10 |
Washer | 6 | $ 3.10 | ||
| 12 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.88 |
11 X 12 DOWEL P | 4 | $ 1.88 | ||
| 13-1 | 12600-96801 Replaced by 12600-96802
SKU: 12600-96801 Weight: 2.000000 Brand: Price: $ 283.77 |
Replaced by 12600-96802 | 1 | $ 283.77 | ||
| 13-2 | 12660-96J21 Port Balancer Shaft Assembly
SKU: 12660-96J21 Weight: 2.000000 Brand: Price: $ 237.96 |
Port Balancer Shaft Assembly | 1 | $ 237.96 | DF150T S/N 210508 Newer DF150Z S/N 210055 Newer | |
| 14 | 12645-96J01 Balancer Bearing
SKU: 12645-96J01 Weight: 0.125000 Brand: Price: $ 10.39 |
Balancer Bearing | 8 | $ 10.39 | ||
| 15-1 | 12600-96801 Replaced by 12600-96802
SKU: 12600-96801 Weight: 2.000000 Brand: Price: $ 283.77 |
Replaced by 12600-96802 | 1 | $ 283.77 | ||
| 15-2 | 12650-96J20 Starboard Balancer Shaft Assembly
SKU: 12650-96J20 Weight: 2.000000 Brand: Price: $ 322.79 |
Starboard Balancer Shaft Assembly | 1 | $ 322.79 | DF150T S/N 210508 Newer DF150Z S/N 210055 Newer | |
| 16 | 12665-96J00 Balancer Driven Sprocket
SKU: 12665-96J00 Weight: 0.200000 Brand: Price: $ 57.35 |
Balancer Driven Sprocket | 1 | $ 57.35 | ||
| 17 | 01550-1020A BOLT
SKU: 01550-1020A Weight: 0.100000 Brand: Price: $ 3.27 |
BOLT | 1 | $ 3.27 | ||
| 17A | 09160-10039 Washer
SKU: 09160-10039 Weight: 0.100000 Brand: Price: $ 2.38 |
Washer | 1 | $ 2.38 | Not Shown | |
| 18 | 04221-04089 PIN 4X8
SKU: 04221-04089 Weight: 0.060000 Brand: Price: $ 1.17 |
PIN 4X8 | 1 | $ 1.17 | ||
| 19 | 09103-08414 Bolt (8x53)
SKU: 09103-08414 Weight: 0.125000 Brand: Price: $ 3.87 |
Bolt (8x53) | 2 | $ 3.87 | ||
| 20 | 09103-08423 Bolt (8x80)
SKU: 09103-08423 Weight: 0.125000 Brand: Price: $ 4.82 |
Bolt (8x80) | 4 | $ 4.82 | ||
| 21 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.88 |
11 X 12 DOWEL P | 2 | $ 1.88 | ||
| 22 | 12662-96J00 Balancer Drive Sprocket
SKU: 12662-96J00 Weight: 0.600000 Brand: Price: $ 83.39 |
Balancer Drive Sprocket | 1 | $ 83.39 | ||
| 23 | 09202-05032 Pin (5x12)
SKU: 09202-05032 Weight: 0.060000 Brand: Price: $ 1.47 |
Pin (5x12) | 1 | $ 1.47 | ||
| 24 | 12670-96J00 Balancer Chain
SKU: 12670-96J00 Weight: 0.500000 Brand: Price: $ 59.36 |
Balancer Chain | 1 | $ 59.36 | ||
| 25 | 12671-96J01 Balancer Chain Tensioner
SKU: 12671-96J01 Weight: 0.100000 Brand: Price: $ 29.06 |
Balancer Chain Tensioner | 1 | $ 29.06 | ||
| 26 | 12672-96J01 Balancer Chain Tensioner Bolt
SKU: 12672-96J01 Weight: 0.100000 Brand: Price: $ 11.62 |
Balancer Chain Tensioner Bolt | 1 | $ 11.62 | ||
| 27 | 09160-08079 Washer
SKU: 09160-08079 Weight: 0.100000 Brand: Price: $ 3.49 |
Washer | 1 | $ 3.49 | ||
| 28 | 12673-96J00 Balancer Chain Tensioner Spring
SKU: 12673-96J00 Weight: 0.100000 Brand: Price: $ 9.76 |
Balancer Chain Tensioner Spring | 1 | $ 9.76 | ||
| 29 | 12695-96J00 Balancer Chain Guide
SKU: 12695-96J00 Weight: 0.100000 Brand: Price: $ 66.55 |
Balancer Chain Guide | 1 | $ 66.55 | ||
| 30 | 01550-0825A BOLT
SKU: 01550-0825A Weight: 0.100000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | ||
| 31 | 09103-08158 Bolt (8x75)
SKU: 09103-08158 Weight: 0.125000 Brand: Price: $ 6.18 |
Bolt (8x75) | 1 | $ 6.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
