Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

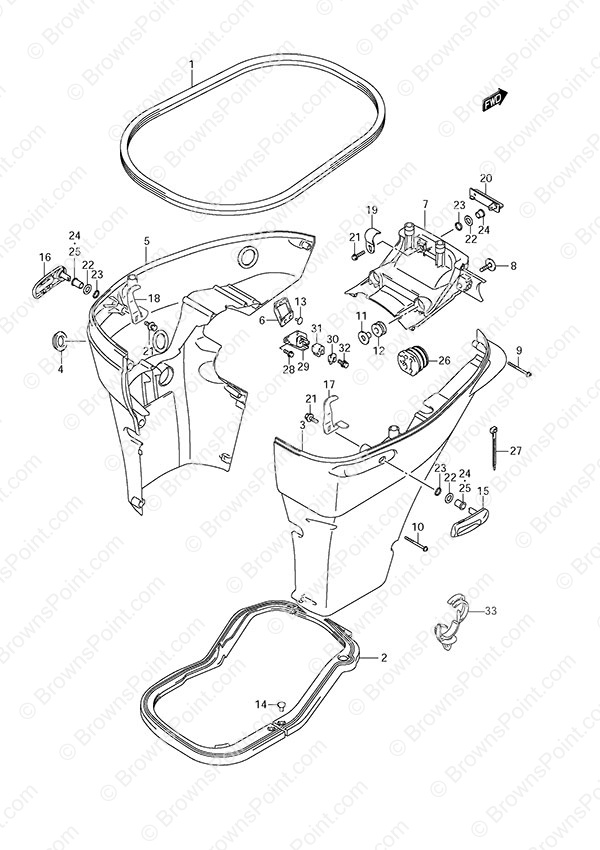

Fig. 54 - Side Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61112-90J00 Side Cover Rubber Seal
SKU: 61112-90J00 Weight: 0.780000 Brand: Price: $ 62.20 |
Side Cover Rubber Seal | 1 | $ 62.20 | ||
| 2 | 61134-90J11 Side Cover Seal
SKU: 61134-90J11 Weight: 1.200000 Brand: Price: $ 54.52 |
Side Cover Seal | 1 | $ 54.52 | ||
| 3 | 61810-90J10-0EP Starboard Side Cover
SKU: 61810-90J10-0EP Weight: 70.000000 Brand: Price: $ 615.67 |
Starboard Side Cover | 1 | $ 615.67 | ||
| 4 | 61817-89J01 Side Cover Plug
SKU: 61817-89J01 Weight: 0.060000 Brand: Price: $ 5.95 |
Side Cover Plug | 1 | $ 5.95 | ||
| 5 | 61820-90J11-0EP Port Side Cover
SKU: 61820-90J11-0EP Weight: 10.000000 Brand: Price: $ 606.57 |
Port Side Cover | 1 | $ 606.57 | ||
| 6 | 61827-90J00 Side Cover Holder (NLA)
SKU: 61827-90J00 Weight: 0.100000 Brand: Price: $ 16.38 |
Side Cover Holder (NLA) | 1 | $ 16.38 | ||
| 7 | 61831-90J11-0EP Front Panel
SKU: 61831-90J11-0EP Weight: 1.000000 Brand: Price: $ 126.57 |
Front Panel | 1 | $ 126.57 | ||
| 8 | 09116-08174 Bolt (8x38)
SKU: 09116-08174 Weight: 0.060000 Brand: Price: $ 4.19 |
Bolt (8x38) | 2 | $ 4.19 | ||
| 9 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 7 | $ 1.96 | ||
| 10 | 09136-06149 Screw (6x55)
SKU: 09136-06149 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw (6x55) | 2 | $ 3.71 | ||
| 11 | 09169-08039 Washer (8.5x30x1.5) (NLA)
SKU: 09169-08039 Weight: 0.060000 Brand: Price: $ 4.91 |
Washer (8.5x30x1.5) (NLA) | 2 | $ 4.91 | ||
| 12 | 09320-11023 CUSHION,FRONT P
SKU: 09320-11023 Weight: 0.000000 Brand: Price: $ 2.91 |
CUSHION,FRONT P | 2 | $ 2.91 | ||
| 13 | 09321-08022 Cushion
SKU: 09321-08022 Weight: 0.060000 Brand: Price: $ 3.22 |
Cushion | 2 | $ 3.22 | ||
| 15 | 61633-90J02-0EP Rear Hook Lever
SKU: 61633-90J02-0EP Weight: 0.250000 Brand: Price: $ 71.26 |
Rear Hook Lever | 1 | $ 71.26 | ||
| 16 | 61633-90J02-0EP Rear Hook Lever
SKU: 61633-90J02-0EP Weight: 0.250000 Brand: Price: $ 71.26 |
Rear Hook Lever | 1 | $ 71.26 | ||
| 17 | 61637-90J10 Engine Cover Rear Starboard Hook
SKU: 61637-90J10 Weight: 0.250000 Brand: Price: $ 12.27 |
Engine Cover Rear Starboard Hook | 1 | $ 12.27 | ||
| 18 | 61638-90J10 Engine Cover Rear Port Hook
SKU: 61638-90J10 Weight: 0.250000 Brand: Price: $ 12.27 |
Engine Cover Rear Port Hook | 1 | $ 12.27 | ||
| 19 | 61641-87D00 Engine Cover Hook
SKU: 61641-87D00 Weight: 0.100000 Brand: Price: $ 11.89 |
Engine Cover Hook | 1 | $ 11.89 | ||
| 20 | 61645-90J01-0EP Front Hook Lever
SKU: 61645-90J01-0EP Weight: 0.200000 Brand: Price: $ 59.69 |
Front Hook Lever | 1 | $ 59.69 | ||
| 21 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 3 | $ 2.98 | ||
| 22 | 09160-13014 Washer (13.2x25x1.0)
SKU: 09160-13014 Weight: 0.060000 Brand: Price: $ 2.99 |
Washer (13.2x25x1.0) | 3 | $ 2.99 | ||
| 23 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 3 | $ 2.04 | ||
| 24 | 09307-13006 Bushing
SKU: 09307-13006 Weight: 0.060000 Brand: Price: $ 7.10 |
Bushing | 1 | $ 7.10 | Front | |
| 25 | 09306-13008 Bushing
SKU: 09306-13008 Weight: 0.060000 Brand: Price: $ 7.17 |
Bushing | 2 | $ 7.17 | Rear | |
| 26 | 61124-90J31 Remote Control Grommet
SKU: 61124-90J31 Weight: 0.500000 Brand: Price: $ 15.54 |
Remote Control Grommet | 1 | $ 15.54 | ||
| 27 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 28 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 29 | 67341-90J32 Remocon Cable Holder
SKU: 67341-90J32 Weight: 0.100000 Brand: Price: $ 37.97 |
Remocon Cable Holder | 1 | $ 37.97 | ||
| 30 | 67343-90J20 Remocon Cable Stopper
SKU: 67343-90J20 Weight: 0.080000 Brand: Price: $ 9.85 |
Remocon Cable Stopper | 1 | $ 9.85 | ||
| 31 | 67344-90J00 Remocon Cable Grommet
SKU: 67344-90J00 Weight: 0.100000 Brand: Price: $ 9.73 |
Remocon Cable Grommet | 1 | $ 9.73 | ||
| 32 | 01580-08257 BOLT
SKU: 01580-08257 Weight: 0.060000 Brand: Price: $ 3.24 |
BOLT | 1 | $ 3.24 | ||
| 33 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
