Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

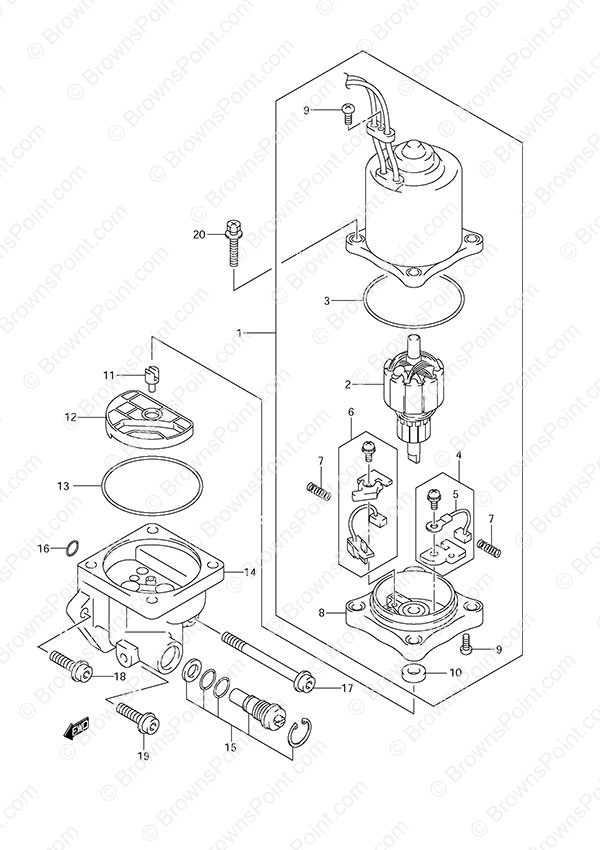

Fig. 46 - PTT Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-92J13 PTT Motor Assembly
SKU: 38100-92J13 Weight: 5.000000 Brand: Price: $ 648.45 |
PTT Motor Assembly | 1 | $ 648.45 | ||
| 2 | 31311-94900 Armature (NLA)
SKU: 31311-94900 Weight: 5.000000 Brand: Price: $ 311.55 |
Armature (NLA) | 1 | $ 311.55 | ||
| 3 | 31123-94910 O-Ring
SKU: 31123-94910 Weight: 0.060000 Brand: Price: $ 14.72 |
O-Ring | 1 | $ 14.72 | ||
| 4 | 31133-90J10 Brush Assembly
SKU: 31133-90J10 Weight: 0.080000 Brand: Price: $ 12.15 |
Brush Assembly | 1 | $ 12.15 | ||
| 5 | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 12.57 |
Brush | 1 | $ 12.57 | ||
| 6 | 31136-90J20 Breaker Assembly
SKU: 31136-90J20 Weight: 0.060000 Brand: Price: $ 57.61 |
Breaker Assembly | 1 | $ 57.61 | ||
| 7 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.02 |
Spring | 2 | $ 5.02 | ||
| 8 | 31173-94920 Brush Holder Assembly
SKU: 31173-94920 Weight: 1.000000 Brand: Price: $ 339.85 |
Brush Holder Assembly | 1 | $ 339.85 | ||
| 9 | 31111-94900 Yoke Screw
SKU: 31111-94900 Weight: 0.060000 Brand: Price: $ 4.39 |
Yoke Screw | 2 | $ 4.39 | ||
| 10 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 11 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 12 | 48582-95E01 Filter
SKU: 48582-95E01 Weight: 0.060000 Brand: Price: $ 38.93 |
Filter | 1 | $ 38.93 | ||
| 13 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 14-1 | 48502-90J13 PTT Pump Assembly
SKU: 48502-90J13 Weight: 1.500000 Brand: Price: $ 1,100.98 |
PTT Pump Assembly | 1 | $ 1,100.98 | Requires Ref# 21 22 | |
| 14-2 | 48502-90J13 PTT Pump Assembly
SKU: 48502-90J13 Weight: 1.500000 Brand: Price: $ 1,100.98 |
PTT Pump Assembly | 1 | $ 1,100.98 | DF115T S/N 210098 Newer DF115Z S/N 211101 Newer | |
| 15 | 48864-93J01 Manual Valve Set
SKU: 48864-93J01 Weight: 0.100000 Brand: Price: $ 128.52 |
Manual Valve Set | 1 | $ 128.52 | ||
| 16 | 48588-90J00 O-Ring Set
SKU: 48588-90J00 Weight: 0.060000 Brand: Price: $ 12.75 |
O-Ring Set | 1 | $ 12.75 | ||
| 17 | 48862-92J20 Pump Bolt No. 1
SKU: 48862-92J20 Weight: 0.100000 Brand: Price: $ 15.52 |
Pump Bolt No. 1 | 1 | $ 15.52 | ||
| 18 | 48862-92J30 Pump Bolt No. 2
SKU: 48862-92J30 Weight: 0.060000 Brand: Price: $ 12.11 |
Pump Bolt No. 2 | 1 | $ 12.11 | ||
| 19 | 48862-90J21 Bolt
SKU: 48862-90J21 Weight: 0.060000 Brand: Price: $ 15.51 |
Bolt | 1 | $ 15.51 | ||
| 20 | 31281-92J10 Through Bolt
SKU: 31281-92J10 Weight: 0.060000 Brand: Price: $ 11.61 |
Through Bolt | 4 | $ 11.61 | ||
| 21 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | Not Shown | |
| 22 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
