Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

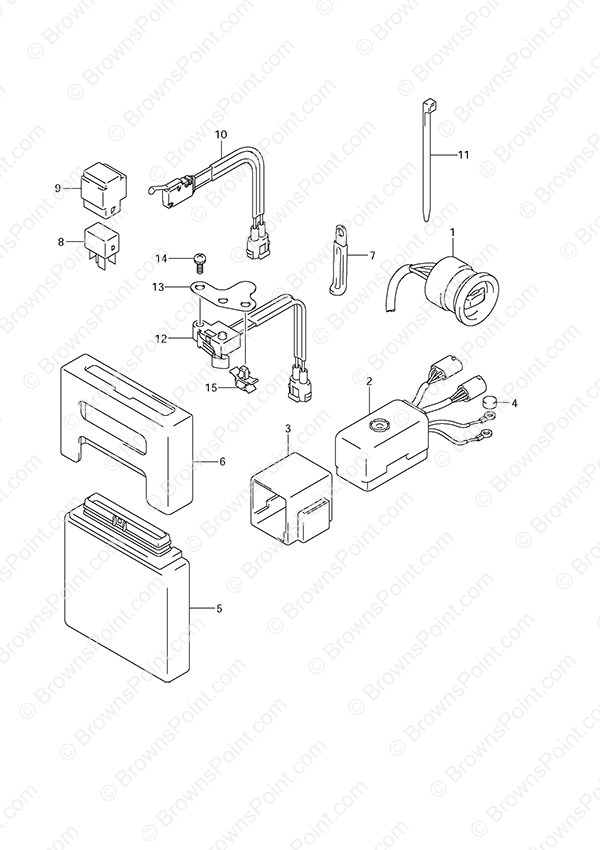

Fig. 37 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37850-99E05 PTT Switch Assembly
SKU: 37850-99E05 Weight: 0.250000 Brand: Price: $ 83.20 |
PTT Switch Assembly | 1 | $ 83.20 | ||
| 2 | 38410-93J12 PTT Relay Assembly
SKU: 38410-93J12 Weight: 0.460000 Brand: Price: $ 136.14 |
PTT Relay Assembly | 1 | $ 136.14 | ||
| 3 | 38415-93J00 PTT Relay Holder
SKU: 38415-93J00 Weight: 0.060000 Brand: Price: $ 6.68 |
PTT Relay Holder | 1 | $ 6.68 | ||
| 4 | 09251-09008 Cap
SKU: 09251-09008 Weight: 0.060000 Brand: Price: $ 3.56 |
Cap | 2 | $ 3.56 | ||
| 5 | 33920-90JF0 Engine Control Unit
SKU: 33920-90JF0 Weight: 2.000000 Brand: Price: $ 2,134.19 |
Engine Control Unit | 1 | $ 2,134.19 | ||
| 6 | 33925-87J00 ECU Cushion
SKU: 33925-87J00 Weight: 0.100000 Brand: Price: $ 20.42 |
ECU Cushion | 1 | $ 20.42 | ||
| 7 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 2 | $ 1.57 | ||
| 8 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 9 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | ||
| 10 | 37722-93J14 Tilt Limit Switch Assembly
SKU: 37722-93J14 Weight: 0.000000 Brand: Price: $ 27.93 |
Tilt Limit Switch Assembly | 1 | $ 27.93 | ||
| 11 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 12 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | ||
| 13 | 37726-90J10 Switch Bracket
SKU: 37726-90J10 Weight: 0.060000 Brand: Price: $ 3.31 |
Switch Bracket | 1 | $ 3.31 | ||
| 14 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
