Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

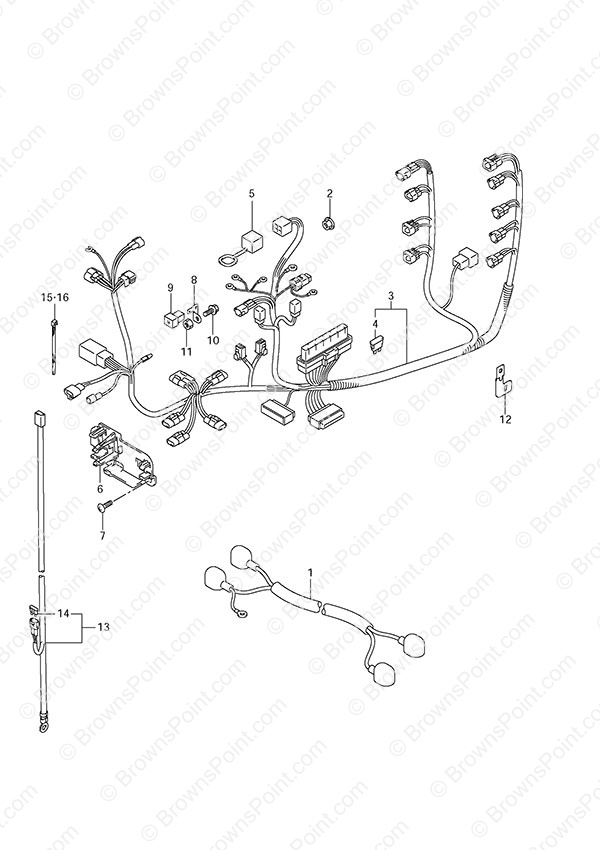

Fig. 35 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-90J30 CABLE ASSY,STAR
SKU: 33810-90J30 Weight: 0.000000 Brand: Price: $ 179.86 |
CABLE ASSY,STAR | 1 | $ 179.86 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 1 | $ 2.38 | ||
| 3 | 36610-90J92 Wiring Harness Assembly
SKU: 36610-90J92 Weight: 3.000000 Brand: Price: $ 570.23 |
Wiring Harness Assembly | 1 | $ 570.23 | ||
| 4 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.45 |
30 Amp Fuse | 1 | $ 2.45 | ||
| 5 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.53 |
Service Connector Cap | 1 | $ 7.53 | ||
| 6 | 36616-90J10 Remocon Connector Holder
SKU: 36616-90J10 Weight: 0.250000 Brand: Price: $ 7.21 |
Remocon Connector Holder | 1 | $ 7.21 | ||
| 7 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.45 |
6 X 16 CROSS SC | 2 | $ 1.45 | ||
| 8 | 36865-90J00 Main Fuse Terminal
SKU: 36865-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Main Fuse Terminal | 2 | $ 9.21 | ||
| 9 | 09481-60401 60 Amp Fuse
SKU: 09481-60401 Weight: 0.060000 Brand: Price: $ 6.94 |
60 Amp Fuse | 2 | $ 6.94 | ||
| 10 | 01570-06107 BOLT
SKU: 01570-06107 Weight: 0.060000 Brand: Price: $ 2.72 |
BOLT | 2 | $ 2.72 | ||
| 11 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 2 | $ 1.95 | ||
| 12 | 36617-90J00 Joint Connector Bracket
SKU: 36617-90J00 Weight: 0.060000 Brand: Price: $ 5.57 |
Joint Connector Bracket | 1 | $ 5.57 | ||
| 13 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 46.19 |
ECM Battery Lead | 1 | $ 46.19 | L:6500 | |
| 14 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.17 |
15 Amp Fuse | 1 | $ 2.17 | ||
| 15 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.65 |
Clamp (L:100) | 2 | $ 2.65 | ||
| 16 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.25 |
Clamp (L:140) | 1 | $ 3.25 |
