Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

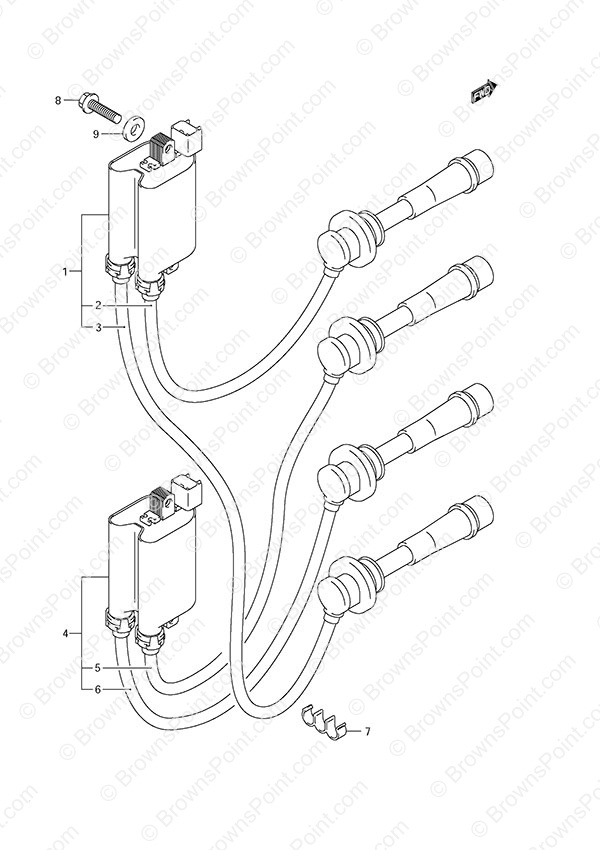

Fig. 33 - Ignition Coil

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 33410-90J00 Ignition Coil Assembly 1 $ 209.99
2 33710-90J00 High Tension Cord 1 $ 44.30
No. 1
3 33740-90J00 High Tension Cord 1 $ 39.45
No. 4
4 33420-90J00 Ignition Coil Assembly 1 $ 209.99
5 33720-90J00 High Tension Cord 1 $ 41.25
No. 2
6 33730-90J00 High Tension Cord 1 $ 39.45
No. 3
7 09408-00035 Clamp (NLA) 2 $ 2.41

Not Available

8 01550-06257 BOLT 4 $ 2.33
9 08322-01067 Washer (6.5x13x1.0) 4 $ 1.85

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
