Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

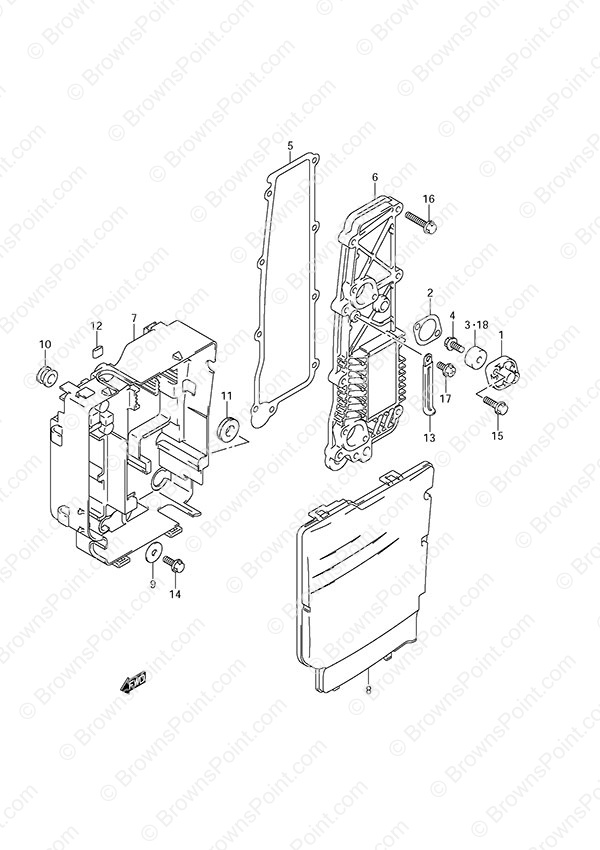

Fig. 32 - Rectifier
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11261-87E10 Protection Anode Cover
SKU: 11261-87E10 Weight: 0.060000 Brand: Price: $ 16.83 |
Protection Anode Cover | 2 | $ 16.83 | ||
| 2 | 11265-87E10 Protection Cover Gasket
SKU: 11265-87E10 Weight: 0.060000 Brand: Price: $ 3.81 |
Protection Cover Gasket | 2 | $ 3.81 | ||
| 3 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 4 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 5 | 14151-90J00 Rectifier Gasket
SKU: 14151-90J00 Weight: 0.125000 Brand: Price: $ 6.88 |
Rectifier Gasket | 1 | $ 6.88 | ||
| 6 | 32800-90J30 Rectifier & Regulator
SKU: 32800-90J30 Weight: 1.600000 Brand: Price: $ 310.94 |
Rectifier & Regulator | 1 | $ 310.94 | ||
| 7 | 32890-90J01 Electric Parts Holder
SKU: 32890-90J01 Weight: 0.520000 Brand: Price: $ 25.59 |
Electric Parts Holder | 1 | $ 25.59 | ||
| 8 | 32891-90J00 Electric Parts Holder Cover
SKU: 32891-90J00 Weight: 0.400000 Brand: Price: $ 21.04 |
Electric Parts Holder Cover | 1 | $ 21.04 | ||
| 9 | 09160-06054 Washer (6.5x22.1.6)
SKU: 09160-06054 Weight: 0.062500 Brand: Price: $ 1.63 |
Washer (6.5x22.1.6) | 1 | $ 1.63 | ||
| 10 | 09320-10075 Cushion
SKU: 09320-10075 Weight: 0.060000 Brand: Price: $ 1.92 |
Cushion | 2 | $ 1.92 | ||
| 11 | 09320-12090 Cushion
SKU: 09320-12090 Weight: 0.060000 Brand: Price: $ 1.91 |
Cushion | 1 | $ 1.91 | ||
| 12 | 09329-01007 Cushion
SKU: 09329-01007 Weight: 0.060000 Brand: Price: $ 3.90 |
Cushion | 1 | $ 3.90 | ||
| 13 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 14 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 15 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 16 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 9 | $ 2.74 | ||
| 17 | 02162-06127 BOLT
SKU: 02162-06127 Weight: 0.060000 Brand: Price: $ 1.48 |
BOLT | 1 | $ 1.48 | ||
| 18 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
