Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

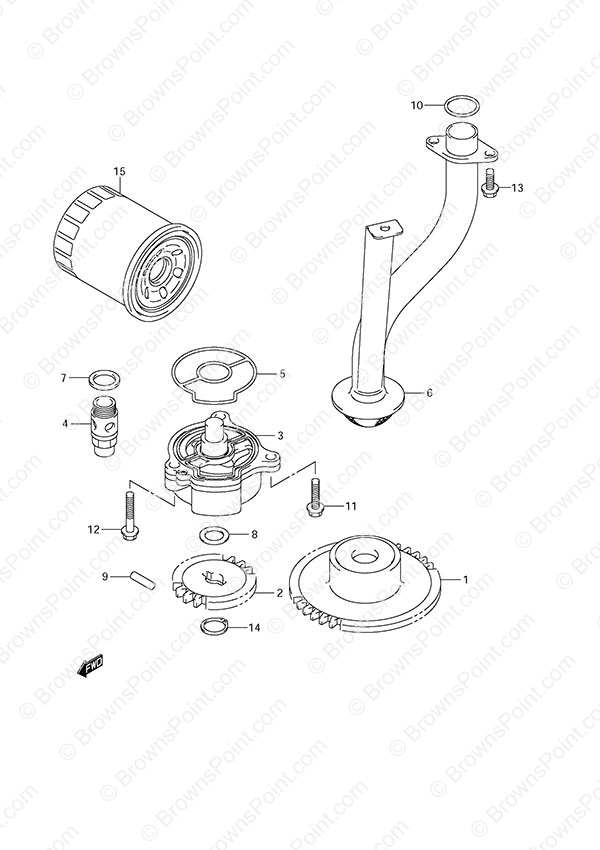

Fig. 19 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12632-92J12 Oil Pump Drive Gear
SKU: 12632-92J12 Weight: 2.000000 Brand: Price: $ 56.26 |
Oil Pump Drive Gear | 1 | $ 56.26 | ||
| 2 | 16113-92J11 Oil Pump Driven Gear
SKU: 16113-92J11 Weight: 0.300000 Brand: Price: $ 34.88 |
Oil Pump Driven Gear | 1 | $ 34.88 | ||
| 3 | 16400-90J00 Oil Pump Assembly
SKU: 16400-90J00 Weight: 0.960000 Brand: Price: $ 207.12 |
Oil Pump Assembly | 1 | $ 207.12 | ||
| 4 | 16440-99E01 VALVE ASSY,OIL
SKU: 16440-99E01 Weight: 0.000000 Brand: Price: $ 30.73 |
VALVE ASSY,OIL | 1 | $ 30.73 | ||
| 5 | 16451-90J00 Oil Pump O-Ring
SKU: 16451-90J00 Weight: 0.060000 Brand: Price: $ 9.29 |
Oil Pump O-Ring | 1 | $ 9.29 | ||
| 6 | 16520-90J00 Oil Pump Strainer
SKU: 16520-90J00 Weight: 2.000000 Brand: Price: $ 49.53 |
Oil Pump Strainer | 1 | $ 49.53 | ||
| 7 | 09168-16002 Gasket (16x22x2.0)
SKU: 09168-16002 Weight: 0.060000 Brand: Price: $ 2.02 |
Gasket (16x22x2.0) | 1 | $ 2.02 | ||
| 8 | 09181-12158 Washer (12x20x0.5)
SKU: 09181-12158 Weight: 0.100000 Brand: Price: $ 2.38 |
Washer (12x20x0.5) | 1 | $ 2.38 | ||
| 9 | 09261-05006 Pin (5x18)
SKU: 09261-05006 Weight: 0.100000 Brand: Price: $ 1.53 |
Pin (5x18) | 1 | $ 1.53 | ||
| 10 | 09280-22020 O-Ring
SKU: 09280-22020 Weight: 0.060000 Brand: Price: $ 3.57 |
O-Ring | 2 | $ 3.57 | ||
| 11 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.15 |
BOLT 6X25 | 1 | $ 2.15 | ||
| 12 | 01547-06357 BOLT 6X35
SKU: 01547-06357 Weight: 0.100000 Brand: Price: $ 2.15 |
BOLT 6X35 | 2 | $ 2.15 | ||
| 13 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 2.08 |
BOLT | 3 | $ 2.08 | ||
| 14 | 08331-3112A Circlip
SKU: 08331-3112A Weight: 0.060000 Brand: Price: $ 1.88 |
Circlip | 1 | $ 1.88 | ||
| 15 | 16510-61A32 Engine Oil Filter
SKU: 16510-61A32 Weight: 0.000000 Brand: Price: $ 14.43 |
Engine Oil Filter | 1 | $ 14.43 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
