Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

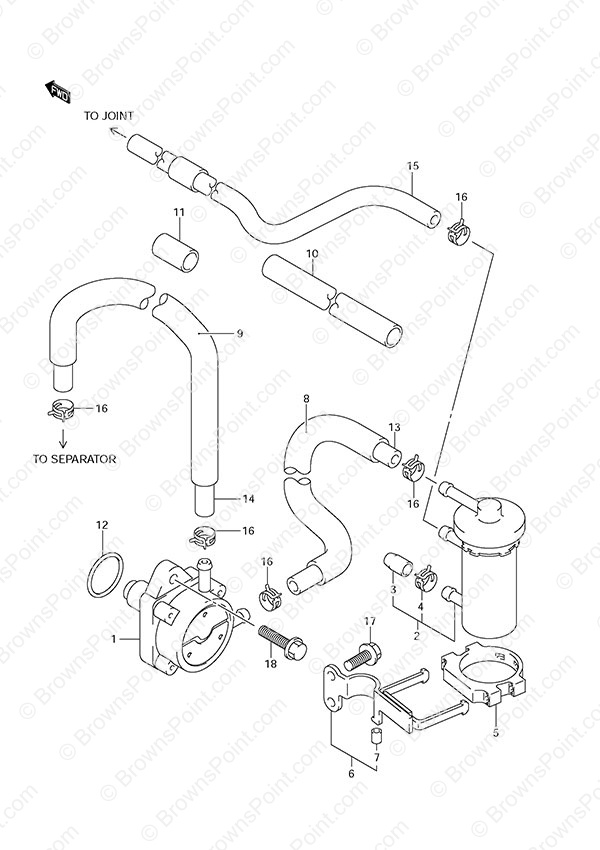

Fig. 13 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-90J11 Fuel Pump Assembly
SKU: 15100-90J11 Weight: 0.500000 Brand: Price: $ 165.75 |
Fuel Pump Assembly | 1 | $ 165.75 | ||
| 2 | 15410-87J30 Fuel Filter
SKU: 15410-87J30 Weight: 0.200000 Brand: Price: $ 16.22 |
Fuel Filter | 1 | $ 16.22 | ||
| 3 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
| 4 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 5 | 15422-96J01 Fuel Filter Clamp
SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.41 |
Fuel Filter Clamp | 1 | $ 6.41 | ||
| 6 | 15420-90J30 Fuel Filter Bracket (NLA)
SKU: 15420-90J30 Weight: 0.100000 Brand: Price: $ 10.03 |
Fuel Filter Bracket (NLA) | 1 | $ 10.03 | ||
| 7 | 09320-05016 Cushion (NLA)
SKU: 09320-05016 Weight: 0.200000 Brand: Price: $ 2.46 |
Cushion (NLA) | 1 | $ 2.46 | ||
| 8 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->230 | |
| 9 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->450 | |
| 10 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->510 | |
| 11 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->180 | |
| 12 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 13 | 15192-90J11 Fuel Hose
SKU: 15192-90J11 Weight: 0.080000 Brand: Price: $ 16.09 |
Fuel Hose | 1 | $ 16.09 | Filter to Pump | |
| 14 | 09343-70503-600 Fuel Hose (7x12x600)
SKU: 09343-70503-600 Weight: 0.160000 Brand: Price: $ 53.16 |
Fuel Hose (7x12x600) | 1 | $ 53.16 | Pump to Separator L:600->540 | |
| 15 | 15190-90J30 Fuel Hose
SKU: 15190-90J30 Weight: 0.500000 Brand: Price: $ 106.14 |
Fuel Hose | 1 | $ 106.14 | Joint to Filter | |
| 16 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 5 | $ 2.09 | ||
| 17 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 18 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
