Suzuki DF 115 Parts Listings
S/N 11502F-210001 to 11502F-21XXXX
S/N 11502Z-210001 to 11502Z-21XXXX

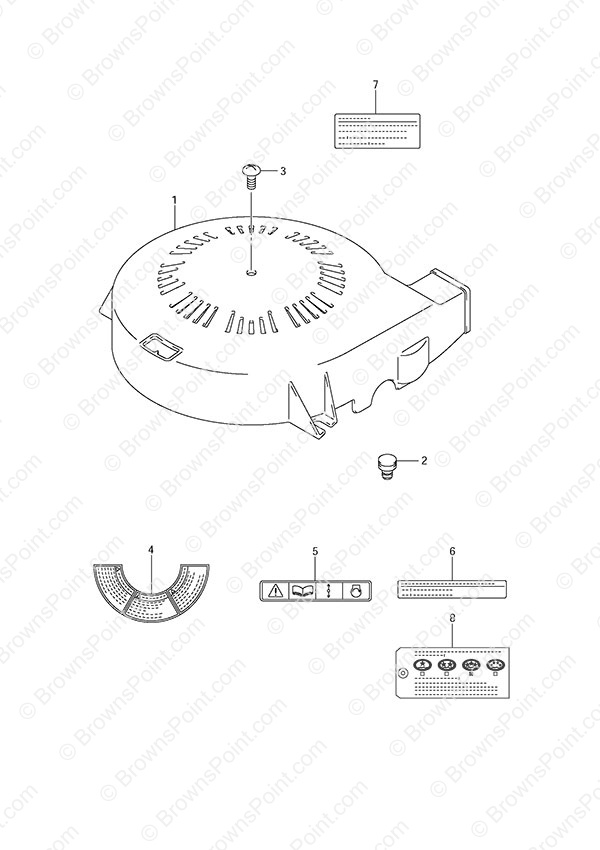

Fig. 3 - Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11510-90J00 Ring Gear Cover
SKU: 11510-90J00 Weight: 2.000000 Brand: Price: $ 58.28 |
Ring Gear Cover | 1 | $ 58.28 | ||
| 2 | 11512-99E01 Ring Gear Cover Cushion
SKU: 11512-99E01 Weight: 0.060000 Brand: Price: $ 3.62 |
Ring Gear Cover Cushion | 2 | $ 3.62 | ||
| 3 | 09125-06111 Screw (6x18)
SKU: 09125-06111 Weight: 0.060000 Brand: Price: $ 2.12 |
Screw (6x18) | 1 | $ 2.12 | ||
| 4 | 61472-93E33 LABEL,RECOIL,ST
SKU: 61472-93E33 Weight: 0.000000 Brand: Price: $ 7.74 |
LABEL,RECOIL,ST | 1 | $ 7.74 | ||
| 5 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 7 | 61494-90J00 Oil Label
SKU: 61494-90J00 Weight: 0.250000 Brand: Price: $ 4.25 |
Oil Label | 1 | $ 4.25 | ||
| 8 | 65341-87J20 CARB Emission Tag (NLA)
SKU: 65341-87J20 Weight: 0.100000 Brand: Price: $ 1.87 |
CARB Emission Tag (NLA) | 1 | $ 1.87 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
